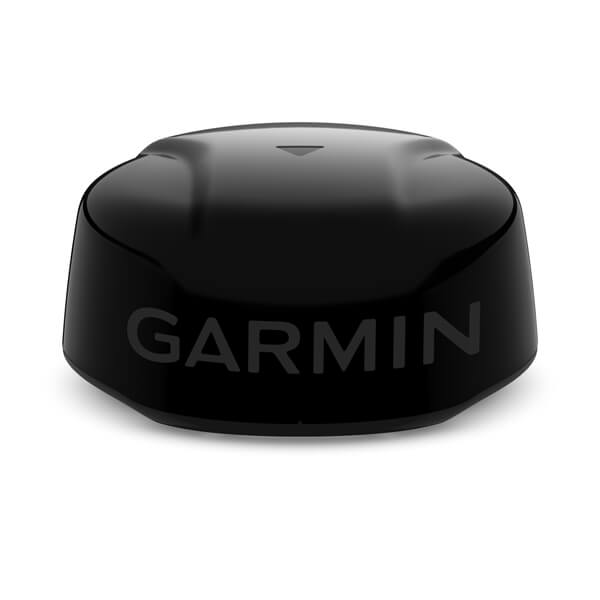

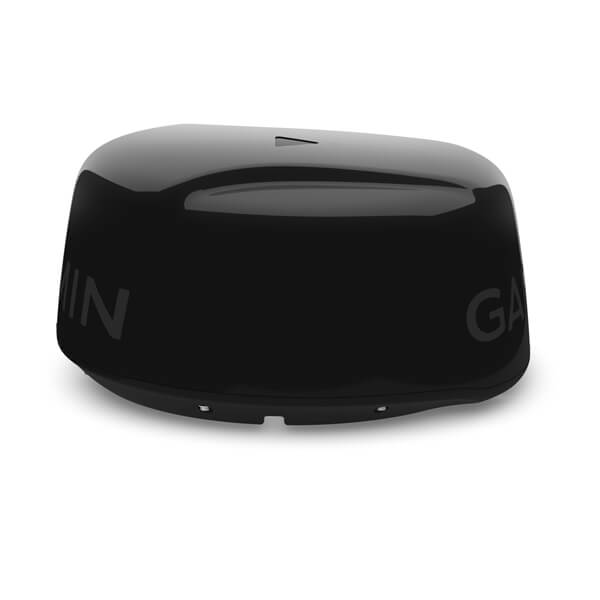

GMR Fantom 18x/24x Dome Radar

Part Number 010-02584-10

BUY NOW

Feature
Specs
In The Box
Update
Accessories

STRIKINGLY POWERFUL RADAR

These incredibly powerful 18” and 24” dome radars have beauty and brains with a black color option and 50 watts of output power.

GMR Fantom brings the power. Fifty watts of it, actually.

See targets clearly, and adjust their sizes as needed.

With power save mode, you get to choose when to use full power and when to pull back.

Every second of power usage counts. Cut back even more by choosing your active times down to the second.

MotionScope™ technology shows targets in color as they move toward you or away.

See what’s coming.

HIGH-POWERED RADAR

Tailor your 50-watt solid-state dome radar to your boat with a white or black option — both with a range from 20’ to 48 nautical miles, even in fog or rain, and up to 60 RPM rotation speed for a refresh rate that can detect movement at any speed.

HIGH-RESOLUTION RADAR

High-resolution images and high antenna gain help to pick out targets at a distance, while 8-bit true color imagery enhances target separation.

MOTIONSCOPE TECHNOLOGY

MotionScope uses the Doppler effect to detect moving targets and highlight them in different colors, so you can navigate around other boats or severe weather — or toward fishing spots where birds feed at the surface.

POWER SAVE MODE

The power save feature lets you choose when you need more power or less, so you have power when you need it and conserve it when you don’t.

TIMED TRANSMIT MODE

Boaters and sailors can specify transmit times down to the seconds instead of minutes, allowing for reduced power consumption.

INTUITIVE OPERATION

These radars don’t have any complex user settings to deal with, so they’re easy to install and start using.

See incredible detail on the water.

TARGET SIZE

Adjust on-screen target resolution for better separation based on your surroundings.

AUTO BIRD GAIN

Locate flocks of birds at the water’s surface where baitfish are also likely to be found.

ECHO TRAILS

See a historical “trail” on the screen to help you quickly and easily identify moving targets and potential collision threats.

DUAL RANGE

The single radar antenna can provide split-screen images on your chartplotter side by side, with independent range setting and controls for both close and long range.

DUAL-RADAR SUPPORT

Using dual radar provides redundancy and allows each display unit on the boat to pull data from one of two different radar sources.

DYNAMIC AUTO GAIN

This feature automatically adjusts to your surroundings for optimal performance in all conditions.

DYNAMIC SEA FILTER

Gain automatically adjusts sea clutter for calm, medium and rough sea conditions.

RADAR OVERLAY

Overlay radar images onto your chartplotter’s map page. You can add an optional autopilot or heading sensor (sold separately) for best results.

AUTOMATIC ACQUISITION

New mini-automatic radar plotting aid (MARPA) automatic acquisition allows for triggering and tracking of up to 30 targets with no user prompting on all returns, boundary zones, guard zones or MotionScope technology.

GUARD ZONE

Set the safety zone and receive an alarm when an object enters the zone.

VRM AND EBL

Variable range markers (VRM) and electronic bearing lines (EBL) allow rapid measurements of distance and bearing to vessels and land.

Find the right setup with our online system builder.Learn More

Engineering enhancements are ongoing and may not be reflected in the pictures, videos and specifications.

General
Dimension	18x: 20" x 9.8" (50.8 cm x 24.8 cm) 24x: 25.4" x 9.8" (64.5 cm x 24.9 cm)
Weight	18x: 14.0 lbs (6.4 kg) 24x: 17.4 lbs (7.9 kg)
Water rating	IPX7
Antenna Length	18x: 17" (43.18 cm) 24x: 23" (58.42 cm)
Rotation speed (RPM)	Up to 60 rpm, depending on settings
Beam width	18x: 5.2° horizontal, 25° vertical 24x: 3.7° horizontal, 25° vertical
Maximum range	48 nm
Minimum range	6 meters
Radar type	Radome
Electrical Features
Power Input	10-32 V DC
Power Consumption (standby)	4 W
Max power consumption, transmitting (power save)	24 W
Max power consumption, transmitting (normal mode)	33 W
Transmit power	50 W
Radar Features
Dual range
Overlay
Dual radar support
Auto Bird Gain
Auto Gain	Dynamic
MARPA target tracking	yes (requires heading sensor, sold separately)
Echo Trails
MotionScope
Target size
Scan averaging
