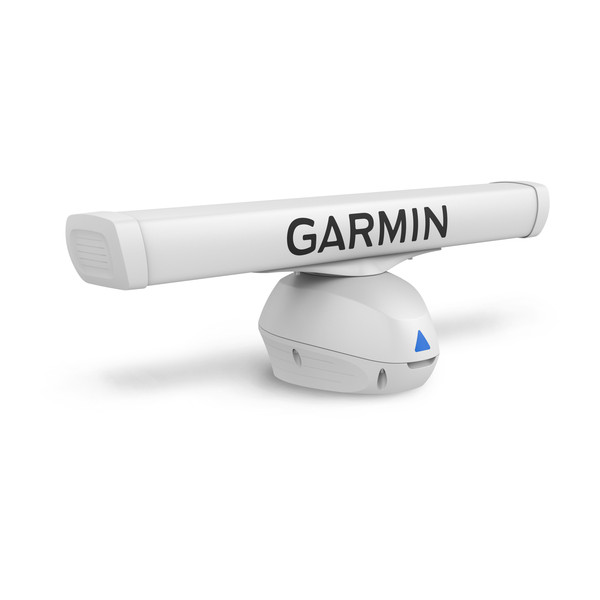

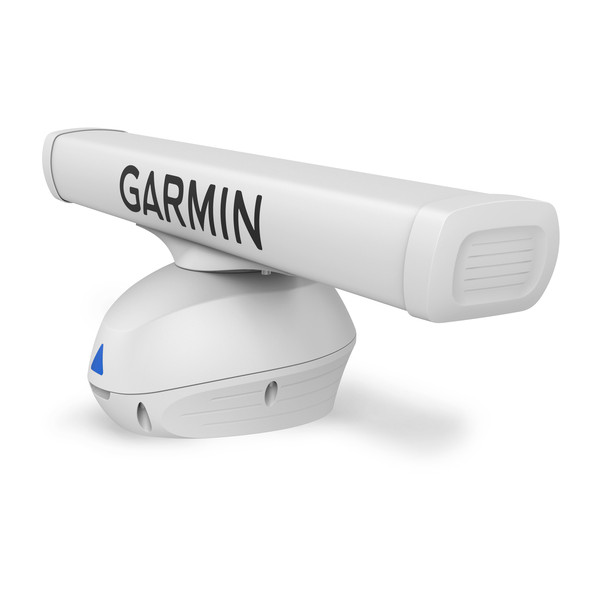

GMR Fantom™ 124

GMR Fantom™ 124

Part Number K10-00012-19

BUY NOW

Images-1 Images-2 Images-3

General

Physical dimensions

Pedestal: 16.6" x 14.3" x 10.7"
Pedestal: 42.1 x 36.4 x 27.1 cm
Full assembly: 15.9" height x 51.8" diameter
Full assembly: 40.3 cm height x 131.4 cm diameter

Weight

Array: 11.4 lb (5.2 kg)
Pedestal: 34.7 lb (15.7 kg)

Water ratingIPX6
Transmit power120 W
Antenna length48" (121.92 cm)
Rotation speed (RPM)24 and 48 rpm (high speed only available in single range mode with MotionScope disabled, and on range settings of 12 NM or lower)
Beam width1.8° horizontal, 23° vertical
Maximum range96 nm
Minimum range6 meters
Radar typeOpen-Array

Radar Features

Dual range support
Radar overlay support
Dynamic Auto GainDynamic
MARPA target tracking (collision avoidance)Yes (Requires Heading Sensor, Sold Separately)
  • GMR Fantom 124 antenna and pedestal
  • Mounting hardware kit and template
  • Right angle power cable (15 meters)
  • Right angle network cable (15 meters)
  • Voltage converter
  • Documentation
