STRIKER Vivid 9sv

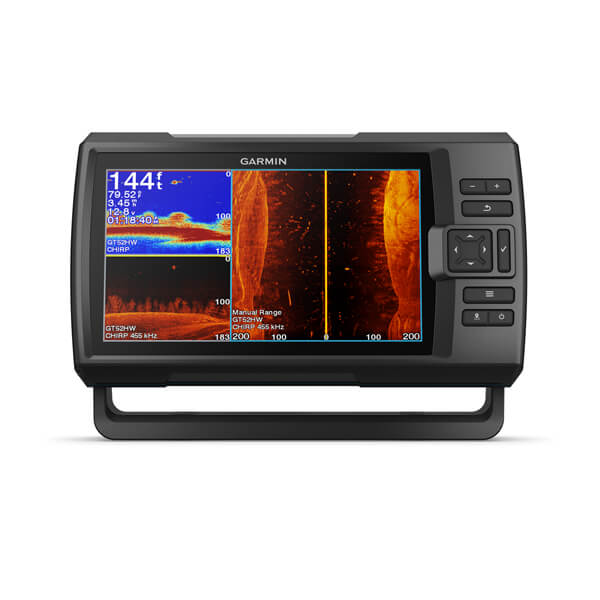

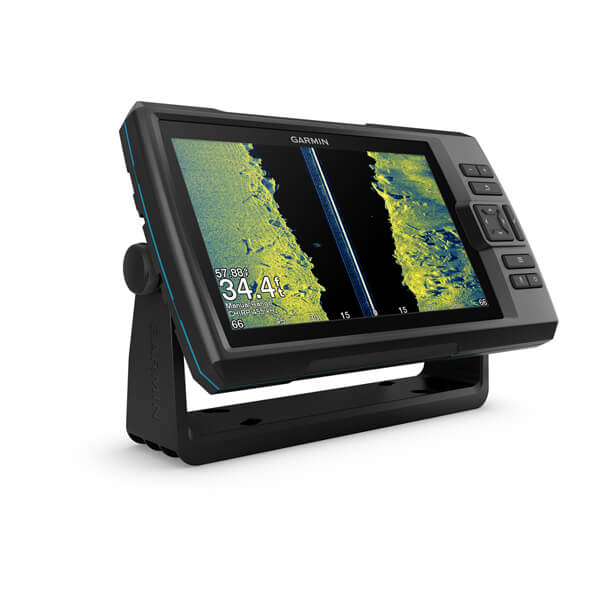

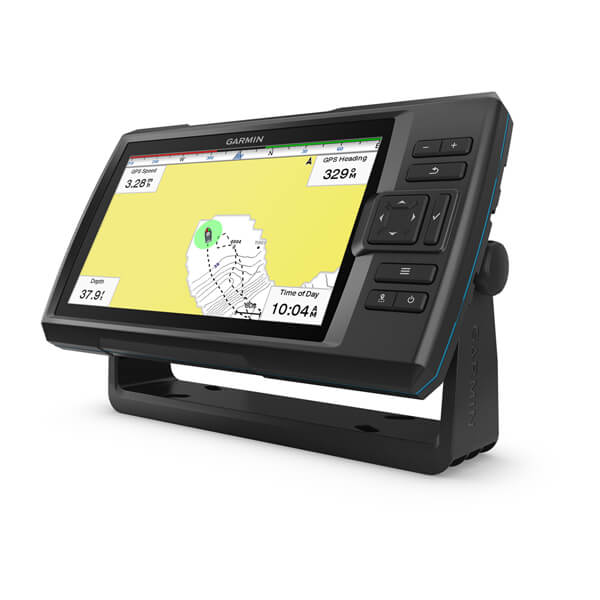

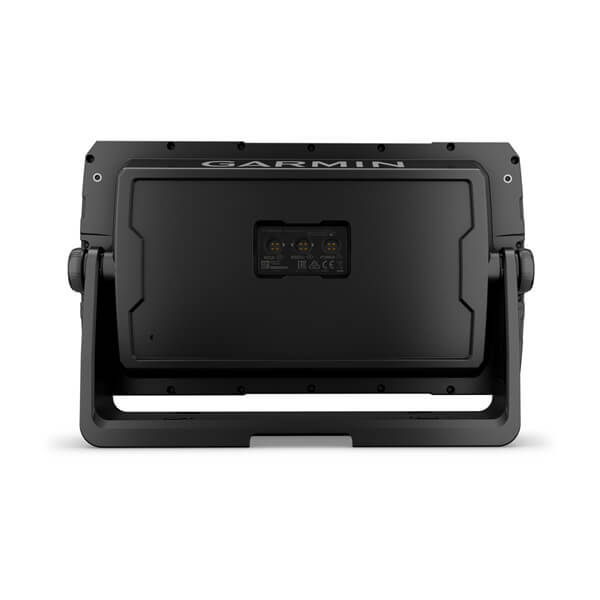

See what’s beneath the surface in clear, colorful detail with this 9” fishfinder.

Part Number 010-02554-03

BUY NOW

Feature
Specs
In The Box
Update
Accessories

Related

Purchase New Charts

General
PHYSICAL DIMENSIONS	11.1” x 6.5” x 2.4” (28.2 x 16.5 x 6.0 cm)
DISPLAY RESOLUTION	800 x 480 pixels
DISPLAY TYPE	WVGA color
WEIGHT	2.4 lbs (1.1 kg)
WATER RATING	IPX7
TRANSMIT POWER	500 W (RMS)

Sonar Features & Specifications
DUAL-FREQUENCY (50/200 KHZ) SONAR CAPABLE
DUAL-BEAM (77/200 KHZ) SONAR CAPABLE
FREQUENCIES SUPPORTED	Traditional: 50/77/200 kHz CHIRP (mid and high) ClearVü and SideVü 260/455/800 kHz
BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP)
WATER TEMPERATURE LOG AND GRAPH

Fishfinder Features
SPLIT-SCREEN ZOOM
ULTRASCROLL® (DISPLAYS FISH TARGETS AT HIGHER BOAT SPEEDS)
FISH SYMBOL ID (HELPS IDENTIFY FISH TARGETS)
AUTOGAIN TECHNOLOGY (MINIMIZES CLUTTER, MAXIMIZES TARGETS)
ADJUSTABLE DEPTH LINE (MEASURES DEPTH OF UNDERWATER OBJECTS)
A-SCOPE (REAL TIME DISPLAY OF FISH PASSING THROUGH TRANSDUCER BEAM)
WATER TEMPERATURE SENSOR INCLUDED

Additional
ADDITIONAL	One 4-pin transducer port One 4-pin SideVü transducer port Quickdraw Contours Integrated GPS Mark Waypoints Course over Ground (COG) Current draw @ 12V: 0.75A

STRIKER Vivid 9sv fishfinder
GT52HW-TM transducer
Power/data cable
12-pin to dual 4-pin transducer adapter cable
Tilt mount
Hardware
Garmin bumper sticker
Documentation
