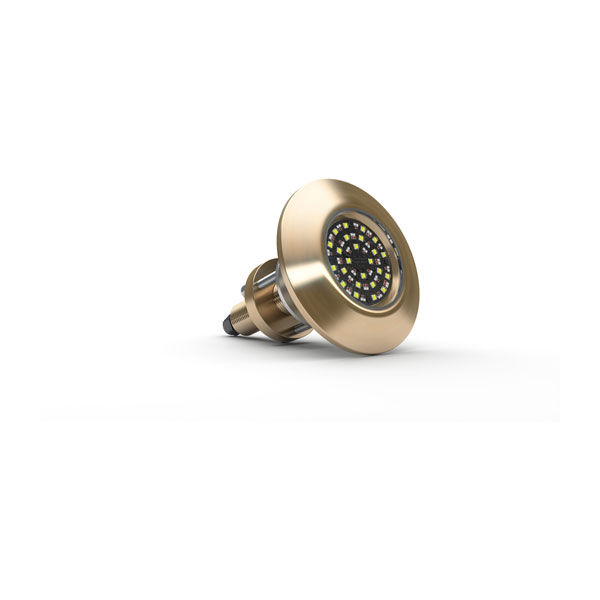

Lumishore THX804 Underwater Thru-hull

RGBW Full Color Light & External Driver

Part Number 010-04520-00

BUY NOW

Feature
Specs
In The Box
Update
Accessories

HIGH-OUTPUT, ULTRAWIDE UNDERWATER LIGHTING

Illuminate the water with these thru-hull LED lights engineered with a 110-degree ultrawide beam that creates a dramatic halo effect. With a flush-fit, low-profile design and marine-grade bronze housing, these lights deliver durable performance for transom or side mounting. Choose from the available colors to suit your vessel.

FULL-COLOR, DUAL-COLOR AND SINGLE-COLOR OPTIONS

6,100–20,000 FIXTURE LUMENS

MARINE-GRADE CONSTRUCTION

ULTRAWIDE 110-DEGREE BEAM ANGLE

IP68-RATED FOR DUST AND WATER PROTECTION

3-YEAR WARRANTY

General
Warranty	3 years
LED colors	White (6500K) + Full spectrum RGB Dual Color: Blue and White (6500K)
LED type	RGB: 32 x 3 W Red/24 x 3 W Green/24 x 3 W Blue/24 x 10 W White Blue and White: 48 x 3 W Blue/36 x 10 W White
Fixture lumens	RGB: 12,000 Blue and White: 13,500
Beam angle	110°
Electrical installation	RGB: Plug and Play (data), simple 2 wire connection (power) Blue and White: Plug and Play
Operating voltage	12 V/24 V
Operating voltage range	10.5-31 VDC
Current consumption 12 V (max)	8.8 A
Current consumption 24 V (max)	4.4 A
Average power draw	106 W
Construction	Marine bronze body with Borosilicate glass lens
Water and dust rating	IP68
Control Options
Momentary switch	RGB: yes (via EOS-LUX Command Center) Blue and White: yes (via SUPRA Hub or via SUPRA Bridge with SUPRA Hub)
EOS-LUX Command Center	RGB: yes
SUPRA Bridge	Blue and White: yes
SUPRA i-Connect Hub	Blue and White: yes
Hub required	SUPRA only
Compatible MFD	RGB: yes (via EOS-LUX Command Center) Blue and White: yes (via SUPRA Bridge with SUPRA Hub)
Smart device	RGB: yes (via EOS-LUX Command Center)
EOS-LUX-SUPRA Display	RGB: yes (via EOS-LUX Command Center) Blue and White: yes (via SUPRA Bridge with SUPRA Hub)
Lighting Functionality
Applicable Controllers/Hubs	SUPRA i-Connect Hub/EOS i-Connect Hub/SUPRA Bridge/EOS-LUX Command Center
External DMX/RDM	EOS only
Mounting Dimensions
Mounting diameter clearance (with bezel)	4.33" (110 mm)
Mounting depth clearance	5.51" (140 mm)
Frontal protrusion (profile)	0.7" (18 mm)
Mounting hole	1.06" (27 mm)
Dimensions (width)	4.33" (110 mm)
Dimensions (depth)	6.2" (158 mm)
Dimensions (height)	4.33" (110 mm)
Mechanical installation	Bonding required on non-conductive hulls (via connection on housing). Hull isolation sleeves must be used on conductive hull materials, including wood and carbon fiber (kit sold separately).

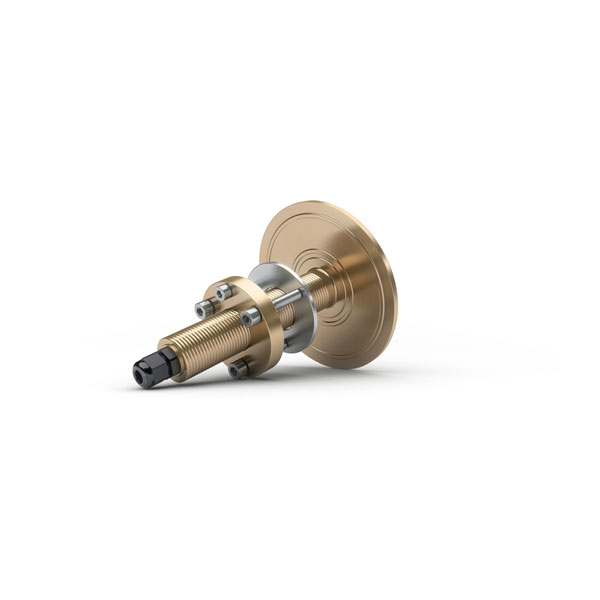

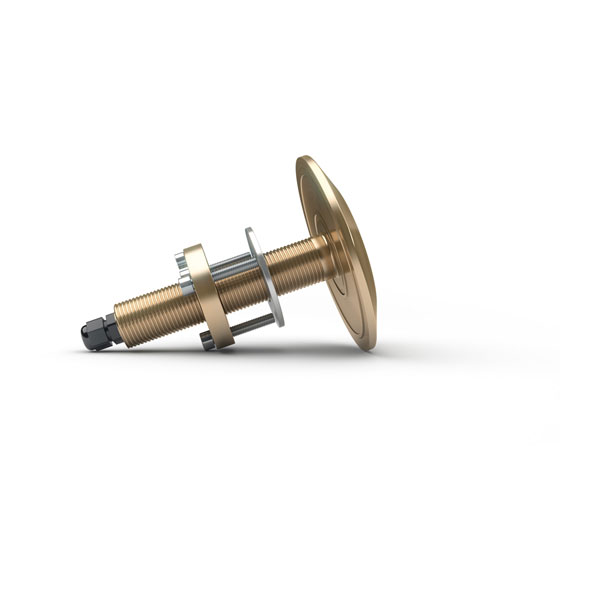

THX804 light with fixings
THX804 LED driver
