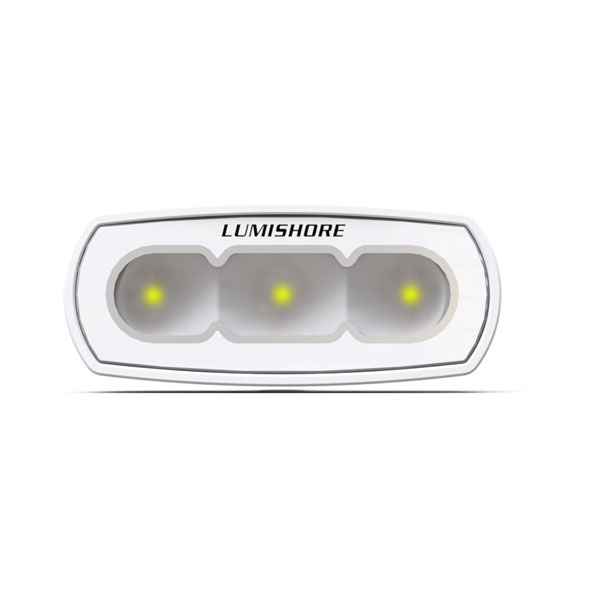

Lumishore ECLIPSE Flood Light

White 4"

Part Number 010-04458-00

BUY NOW

Feature
Specs
In The Box
Update
Accessories

HIGH-INTENSITY FLOOD LIGHTING

Ideal for deck, cockpit or general security lighting, our powerful flood lights can fill a wide area with bright white illumination.

WHITE LIGHTING

70- TO 90-DEGREE WIDE-BEAM ANGLE

1,500 OR 10,000 FIXTURE LUMENS

CONTROL VIA COMPATIBLE MFD, SMART DEVICE, MOMENTARY SWITCH OR ON/OFF SWITCH¹

IP68-RATED FOR DUST AND WATER PROTECTION

3-YEAR WARRANTY

¹The MFD and smart device control require the ECLIPSE Command Center or EOS-LUX Command Center; the Lumishore display control requires the EOS-LUX Command Center; the momentary switch control requires the ECLIPSE Command Center or LUX Control Module; or direct power via an on/off switch

General
Warranty	3 years
LED colors	White (5000 K)
LED type	4": 3 x 10 W White 18": 12 x 10 W White
Fixture lumens	4": 1,500 18": 10,000
Beam angle	70°-90° oval beam
Number of lights via direct power	Not limited
Number of lights per Eclipse Comand Center/Expansion module zone	16 max. More than one light-Vin and Gnd are supplied separately to Command Center/Expansion Module
Number of lights per LUX light control module	16 maximum
Electrical installation	2 wire connection (3 wires when used with ECLIPSE Command Center or LUX Control Module)
Operating voltage	10.5-31 VDC
Current consumption 12 V (max)	4": 1.7 A 18": 9.2 A
Current consumption 24 V (max)	4": 0.9 A 18": 4.6 A
Average power draw	4": 22 W 18": 110 W
Construction	Powder coated aluminum body with forsted lens
Water and dust rating	IP68
Control Options
Direct power via on/off switch	yes
Momentary switch	yes (via ECLIPSE Command Center OR LUX Control Module)
Eclipse Command Center
EOS-LUX Command Center
Compatible MFD	yes (via ECLIPSE Command Center or EOS-LUX Command Center)
Smart device	yes (via ECLIPSE Command Center or EOS-LUX Command Center)
EOS-LUX-SUPRA Display	yes (via EOS-LUX Command Center)
Mounting Dimensions
Mounting diameter clearance (with bezel)	4" (flush fit): 1.89" x 4.89" (48 mm x 124 mm)
Mounting depth clearance	4" (flush fit): 1.42" (36 mm)
Frontal protrusion (profile)	4" (flush fit): 0.34" (9 mm)
Mounting hole	4" (flush fit): 1.52" x 4.1" (38.6 mm x 104 mm)
Dimensions (width)	4" (flush fit): 4.89" (124 mm) 4": 4.21" (107 mm) 18": 15.5" (394 mm)
Dimensions (depth)	4" (flush fit): 1.76" (45 mm) 4": 2.2" (55.8 mm) 18": 2.68" (68 mm)
Dimensions (height)	4" (flush fit): 1.89" (48 mm) 4": 1.77" (45 mm) 18": 2.08" (53 mm)
Mechanical installation	4" (flush fit): Marine sealant and screws (not supplied) 4"/18": Stainless steel fixing brackets (supplied)

Eclipse flood light (based on selection)
Flood light mounting bracket(s) (based on selection)¹

¹Flood light mounting bracket is not included with flush fit selection.
