JL Audio MVi Marine Amplifier

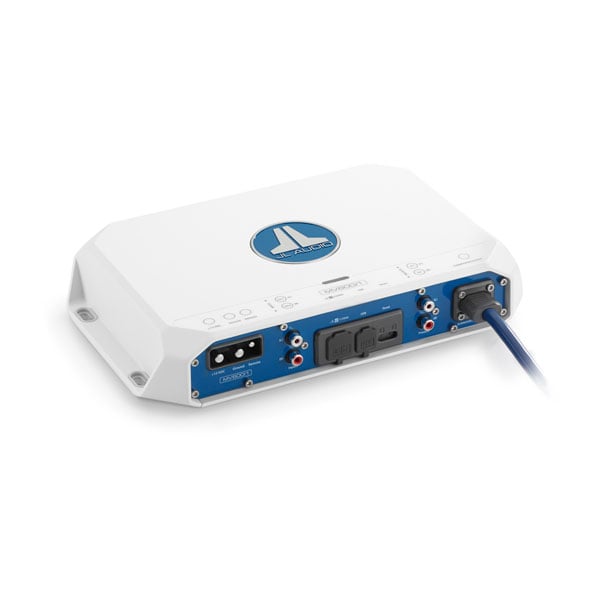

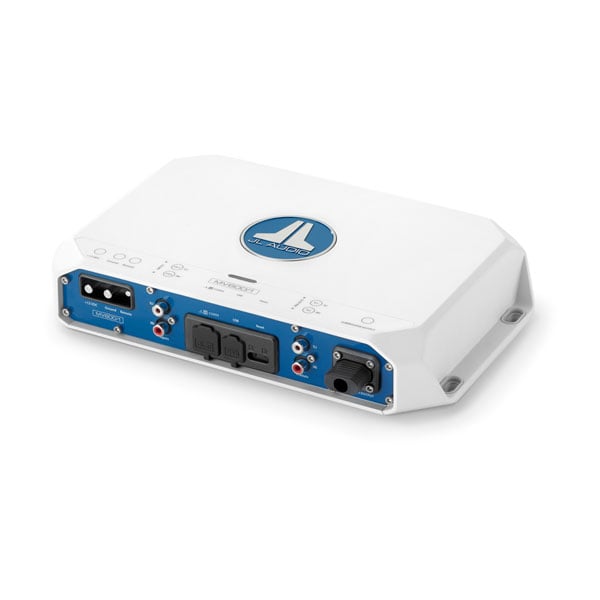

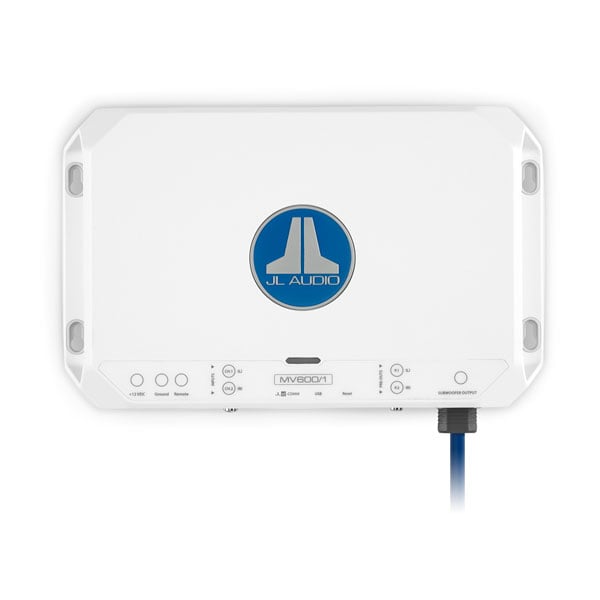

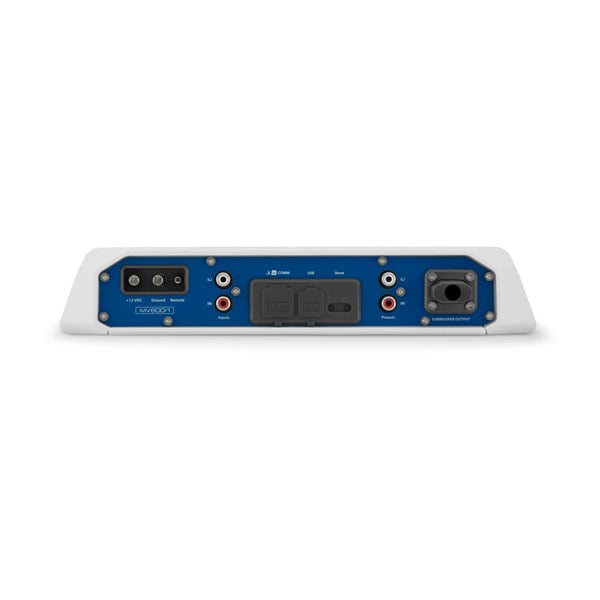

Monoblock Marine Subwoofer Amplifier (600 watts) (MV600/1)

Part Number 010-03334-00

BUY NOW

Feature
Function
Specs
In The Box
Update
Accessories

REFERENCE-GRADE POWER WITH DIGITAL SIGNAL PROCESSING (DSP) TECHNOLOGY

Featuring state-of-the-art amplifier circuits and built-in tuning capabilities, MVi amplifiers usher in a higher level of marine audio performance with unmatched fidelity and versatility.

COMPREHENSIVE ONBOARD TUNING FOR EXCEPTIONAL SOUND QUALITY

ADVANCED OUTPUT DESIGN FOR PRISTINE POWER AND EFFICIENCY

EASY SETUP AT YOUR FINGERTIPS WITH FREE TüN SOFTWARE

UNIQUE DESIGN ADJUSTS OPERATION TO AVOID THERMAL EVENTS

EXCEEDS INTERNATIONAL STANDARDS FOR SALT FOG AND UV EXPOSURE

3-YEAR WARRANTY

WHAT YOU'LL LOVE

ONBOARD TUNING POWER

Each MVi marine amplifier is packed with a complete package of DSP functions, including equalizer, delay, crossover signal routing, mixing and more.

NexD2 TECHNOLOGY-EQUIPPED

Innovative, high-speed switching design synchronizes an amplifier’s power supply and output channels, resulting in top-flight fidelity with ultralow noise and distortion.

NO KNOBS AND SWITCHES

TüN is free software from JL Audio that is used to make all setup and audio adjustments. It’s available for download in a variety of applications for computers and most handheld devices.

DIFFERENTIAL-BALANCED INPUTS

A versatile design accepts speaker level signals without a line-output converter; it also delivers outstanding noise rejection while preventing alternator whine and other noises.

ADVANCED ROLLBACK PROTECTION

Innovative circuit design ensures that the amplifier will never shut down as a result of thermal overload and keeps the music playing, even under the most demanding conditions.

JLid PROTOCOL COMMAND

This proprietary JL Audio protocol provides easy control and communication of all settings for MVi amplifiers and optional JLid accessories.

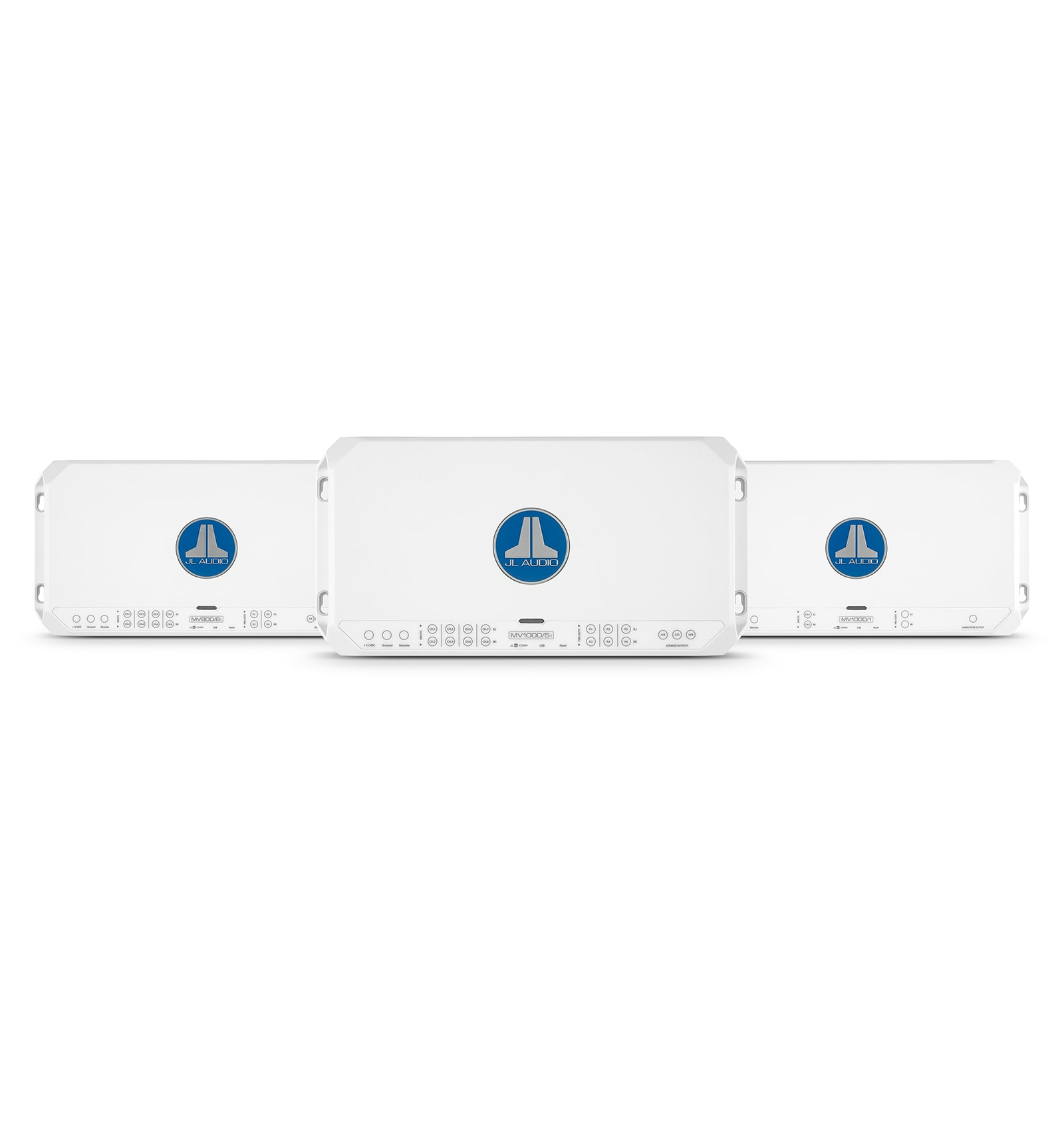

CHOOSE YOUR MODEL

FULL-RANGE STEREO

These amplifiers are available in 2, 4, 6 and 8 channel variants.

FIVE CHANNEL SYSTEM

This system includes 2 models with 4 full-range outputs plus a subwoofer output.

MONOBLOCK

Get 2 non-DSP models optimized for subwoofer use with 600 and 1000 watts.

General
Channels	Monoblock/2/4/5/6/8
Physical dimensions (Height)	2.05" (52 mm)
Physical dimensions (Width)	Monoblock (600 W)/2/4-Channel: 11.20" (285 mm) Monoblock (1000 W)/5 (700 W/1000 W)/6/8-Channel: 13.96" (355 mm)
Physical dimensions (Depth)	6.93" (176 mm)
Weight	Monoblock/2/4-Channel: 5.0 lbs (2.27 kg) Monoblock (1000 W)/5 (700 W/1000 W)/6/8-Channel: 5.6 lbs (2.54 kg)
Operating voltage	10-15 VDC
Water and dust rating	IPX2 (when mounted vertically with connections pointed downward)
Warranty	3 years
Audio
Amplifier class	Class D
Rated continuous (RMS) power (14.4 V input @ 4 Ohm < 1% THD)	Monoblock (600 W): 400 W x 1 Monoblock (1000 W): 600 W x 1 2-Channel: 180 W RMS x 2/600 W x 1 (Bridged) 4-Channel: 75 W RMS x 4/200 W x 2 (Bridged) 5-Channel (700 W): Main: 75 W x 4/Sub: 180 W x 1 5-Channel (1000 W): Main: 75 W x 4/Sub: 400 W x 1 6-Channel: 75 W x 6/200 W x 3 (Bridged) 8-Channel: 75 W x 8/200 W x 4 (Bridged)
Rated continuous (RMS) power (14.4 V input @ 2 Ohm < 1% THD)	Monoblock (600 W): 600 W x 1 Monoblock (1000 W): 1000 W x 1 2-Channel: 300 W x 2 4-Channel: 100 W x 4 5-Channel (700 W): Main: 100 W x 4/Sub: 180 W x 1 5-Channel (1000 W): Main: 100 W x 4/Sub: 600 W x 1 6-Channel: 100 W x 6 8-Channel: 100 W x 8
Rated continuous (RMS) power (12.5 V input @ 4 Ohm < 1% THD)	Monoblock (600 W): 300 W x 1 Monoblock (1000 W): 500 W x 1 2-Channel: 140 W x 2/450 W x 1 (Bridged) 4-Channel: 75 W x 4/200 W x 2 (Bridged) 5-Channel (700 W): Main: 60 W x 4/Sub: 180 W x 1 5-Channel (1000 W): Main: 60 W x 4/Sub: 360 W x 1 6-Channel: 60 W x 6/180 W x 3 (Bridged) 8-Channel: 60 W x 8/180 W x 4 (Bridged)
Rated continuous (RMS) power (12.5 V input @ 2 Ohm < 1% THD)	Monoblock (600 W): 500 W x 1 Monoblock (1000 W): 800 W x 1 2-Channel: 225 W x 2 4-Channel: 60 W x 4 5-Channel (700 W): Main: 90 W x 4/Sub: 300 W x 1 5-Channel (1000 W): Main: 90 W x 4/Sub: 600 W x 1 6-Channel: 90 W x 6 8-Channel: 90 W x 8
Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs	Monoblock (600 W): 90 dB Monoblock (1000 W): 87 dB 2/4/6/8-Channel: 99 dB
Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Main Channels	5-Channel (700 W / 1000 W): 99 dB
Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Subwoofer Channel	5-Channel (700 W / 1000 W): 99 dB
Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs	Monoblock (600 W): 64 dB Monoblock (1000 W): 60 dB 2-Channel: 76 dB 6-Channel: 80 dB
Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Main Channels	5-Channel (700 W/1000 W) 80 dB
Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Subwoofer Channel	5-Channel (700 W/1000 W): 72 dB
Damping factor @ 4 Ω	Monoblock (600 W): > 125/50 Hz Monoblock (1000 W): > 400/50 Hz 2/4/6/8-Channel: > 100/50 Hz 5-Channel (700 W/1000 W): > 150/50 Hz
Damping factor @ 2 Ω	Monoblock (600 W): > 125/50 Hz Monoblock (1000 W): > 300/50 Hz 2/4/ 5 (700 W/1000W)/6/8-Channel: > 50/50 Hz
THD+N @ Rated Power	Monoblock (600 W/1000 W)/2/4/6/8-Channel: <1% @ 2 Ω per Channel
THD+N @ Rated Power: Main Channels	5-Channel (700 W/1000 W): <1% @ 2 Ω per Channel
THD+N @ Rated Power: Subwoofer Channel	5-Channel (700 W/1000 W): <1% @ 2 Ω per Channel
Frequency response (+0, -1dB)	Monoblock (600 W/1000 W): 12 Hz-500 Hz 2/4/6-Channel: 12 Hz-24 kHz 8-Channel: 12 Hz-21 kHz
Frequency response (+0, -1dB): Main Channels	5-Channel (700 W/1000 W): 12 Hz-24 kHz
Frequency response (+0, -1dB): Subwoofer Channel	5-Channel (700 W/1000 W): 12 Hz-1 kHz
Input voltage range @ RCA inputs	Monoblock (600 W/1000 W): 250 mV-8 V RMS 2/4/6/8-Channel: 250 mV-16 V RMS
Fuse rating	Monoblock (600 W): 50 A Monoblock (1000 W): 80 A 2-Channel: 50 A 4-Channel: 40 A 5-Channel (700 W): 60 A 5-Channel (1000 W): 80 A 6-Channel: 50 A 8-Channel: 80 A
Recommended fuse type(s)	AFS, AGU or MaxiFuse™
Min. copper power/Ground wire gauge	4 AWG wire

MVi amplifier
Power connector
Speaker output harnesses
6-foot USB A/B cable
RCA Terminal covers (installed)
Four stainless steel mounting screws
2.5 mm Allen wrench
3 mm Allen wrench

no data.
