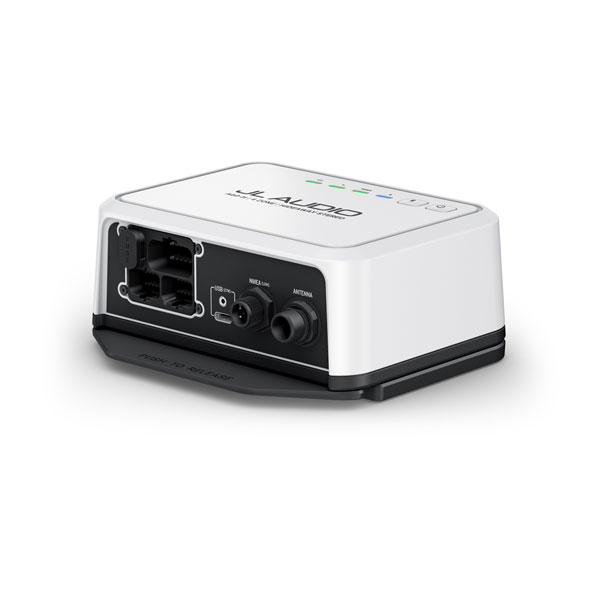

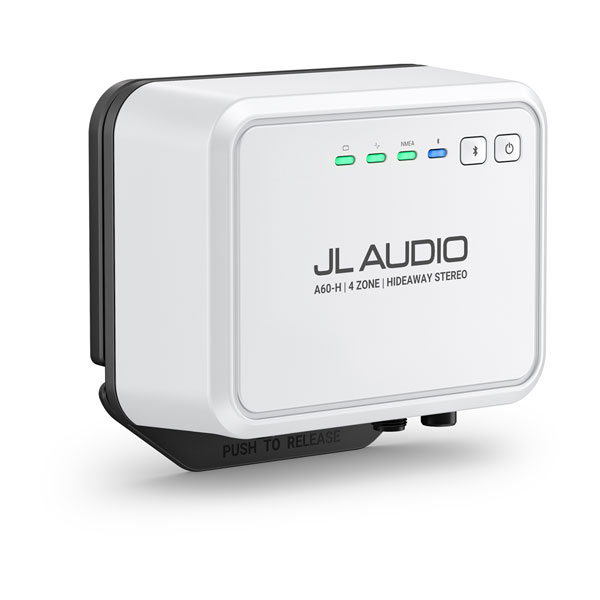

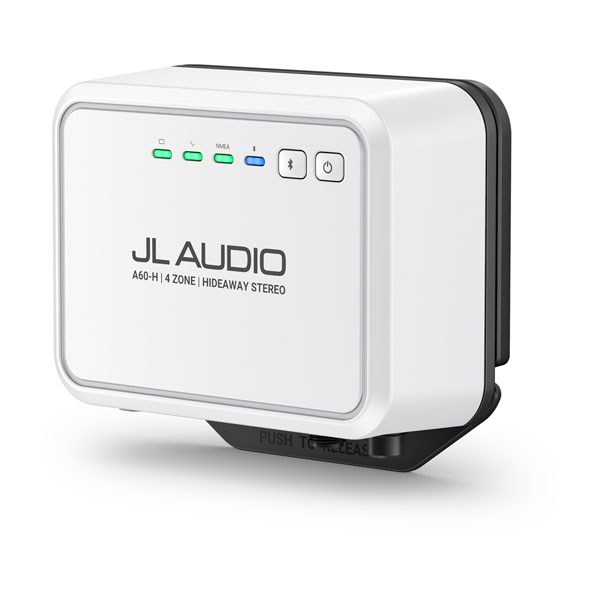

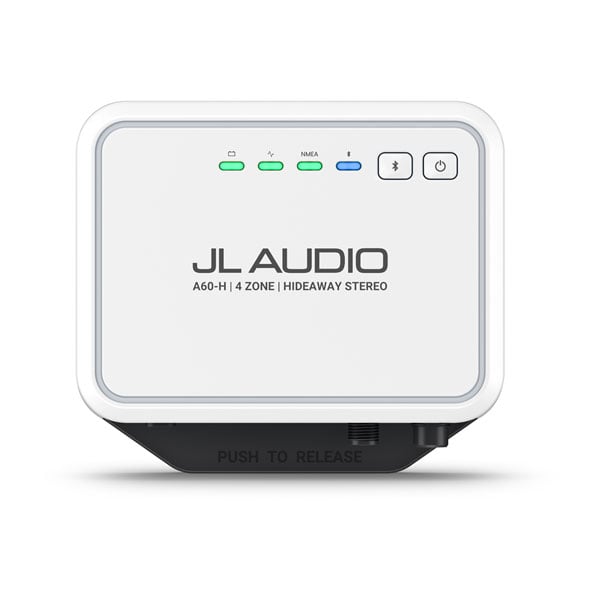

JL Audio A60-H

Part Number 010-04305-00

BUY NOW

Feature
Specs
In The Box
Update
Accessories

SOUNDWAVES MADE FOR THE WATER

Cruise to the soundtrack of the A60-H advanced hideaway marine head unit — the high-quality sound system with a compact design for easy, concealed installation in your boat.

BLUETOOTH 6.1 LE AUDIO STREAMING

DIGITAL SIGNAL PROCESSING (DSP) OPTIMIZES AUDIO AND PROTECTS SPEAKERS AND SUBWOOFERS

EASY TUNE FUNCTIONALITY WITH GARMIN AUDIO APP

MULTI-ZONE TECHNOLOGY IN 4 ZONES

NMEA 2000 NETWORK FOR INTEGRATION WITH YOUR COMPATIBLE CHARTPLOTTER

MULTIPLE OPTIONS FOR WIRELESS CONTROL

WHAT YOU'LL LOVE

COMPACT DESIGN

Designed to save space at the helm, this head unit can be hidden away in your boat’s dash or mounted in a variety of areas such as storage lockers, inside helm consoles and other concealed compartments.

DSP TECHNOLOGY

Built-in DSP technology optimizes the audio signal sent to your system and manages the power delivered to your speakers and subwoofers for a superior listening experience.

BUILT-IN DIGITAL AUDIO BROADCASTING (DAB) TUNER

This head unit natively supports DAB technology, providing a clear and reliable alternative to traditional AM/FM radio in regions where DAB is available.

OVER-THE-AIR SOFTWARE UPDATES

Wireless software updates via Bluetooth LE technology are available from compatible smart devices with the free Garmin Audio app.

WIRELESS AUDIO CONTROL

Easily control your audio from anywhere on your boat with your compatible Garmin smartwatch or the Garmin Audio smartphone app.

NMEA 2000 COMPATIBILITY

This marine head unit system is compatible with an NMEA 2000 network, ensuring premium audio control via Garmin MFDs and the JL Audio NRX-300 wired remote (sold separately).

DESIGN AND TECHNOLOGIES

BLUETOOTH LOW ENERGY STREAMING

Enjoy advanced audio streaming from smart devices through Bluetooth 6.1 LE technology (supports LC3 codec).

MULTI-ZONE TECHNOLOGY

Control your audio in up to 4 separate zones. Supports 4 speaker and 4 subwoofer preamp outputs for connection to compatible amplifiers.

EASY TUNE FUNCTIONALITY

With the free Garmin Audio app, you can easily set up DSP and enjoy high-quality audio customized for your listening environment.

MARINIZED DESIGN

This head unit is rated IPX6 and IPX7 for water ingress protection and has been tested to a high level of protection against salt fog, temperature, vibration and UV exposure.

The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Garmin is under license.

General
Warranty	3 years
Physical dimensions (Height)	5.11" (130 mm)
Physical dimensions (Width)	5.86" (149 mm)
Physical dimensions (Depth)	2.50" (64 mm)
Weight	1.22 lbs (560 g)
Control Surface Dust/Water Rating (when properly installed)	IPX6 and IPX7
Rear Dust/Water Rating (when properly installed)	IPX6 and IPX7
Operating temperature range	32° F to 122° F (0° C to 50° C)
Current draw (max)	15 A
Audio
Rated continuous (RMS) power (14.4 V input @ 4 Ohm < 1% THD)	17 W x 4 (CTA-2006)
Maximum dynamic power (14.4 V input @ 4 Ω < 10% THD)	22 W x 4 (CTA-2006)
Total maximum dynamic power	89 W (CTA-2006)
Electrical Features
Power Input	10.8-16 VDC
Compass safe distance	15.7" (40 cm)
Stereo Features
Built-in amplifier	Class D (4 Ω)
Built-in Digital Signal Processing (DSP)	yes (with custom DSP profile setup using Garmin Audio app)
Garmin audio control	yes (MFD, smart device and Garmin watch)
Multi-Zone technology	4 zones
Bluetooth wireless technology	yes (Bluetooth® 6.1)
DAB+ Built-in
Software updates	Over-the-air updates via Garmin Audio app/USB
Sources
Supported sources	AM, FM, Bluetooth, USB, USB audio, iPhone, iPod, AUX x1
Supported audio formats (USB)	MP3, M4A, AAC, FLAC, WAV

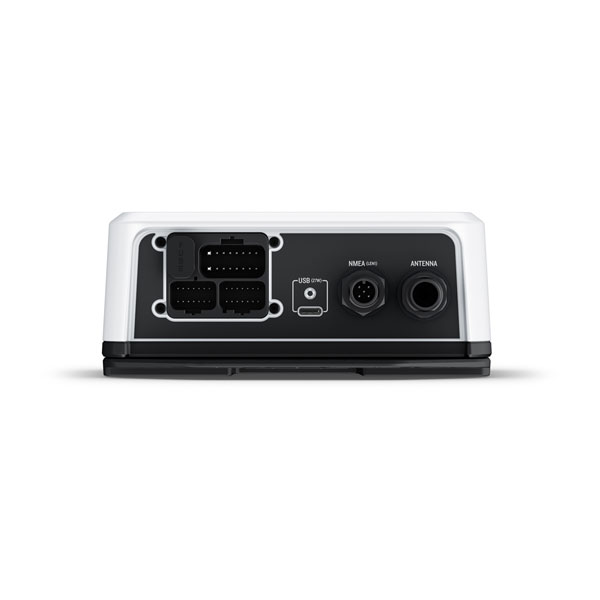

Networking & Connections
Auxiliary inputs (RCA)	1
NMEA 2000 ports	1
NMEA 2000 LEN	1 (50 mA)
USB 2.0 ports	1 (USB-C)
AM/FM ports (Motorola antenna connector)	1
DAB+ ports (Motorola antenna connector)	1
Speaker connections	4 (2 zone amplified)
RCA pre-out (left, right and subwoofer - requires external amplification)	4 zones
Line out (requires external amplification)	4 (L + R per zone)
Subwoofer out (requires external amplification)	4 (1 mono output per zone)
Wireless frequencies/protocols	Bluetooth® Classic: 2.4 GHz @ +10 dBm nominal Bluetooth Low Energy: 2.4 GHz @ +10 dBm nominal
Bluetooth wireless range	up to 30 ft (10 meters)

JL Audio A60-H
Power/speaker harness
Zone 1 and zone 2 harness
Zone 3 and zone 4 harness
Mounting bracket with hardware
Documentation
