GT54UHD-TM

Ultra High-Definition Scanning Sonar All-in-one Transducer

Part Number 010-12909-00

BUY NOW

Feature
Specs
In The Box
Update
Accessories

All-in-one Transducer

One transducer provides the highest resolution ClearVü and SideVü scanning sonar images available and amazingly clear high wide CHIRP traditional sonar
High wide CHIRP traditional sonar provides remarkably clear target separation and definition
See incredibly detailed images of fish and structure up to 200’ below your boat with 800 kHz ClearVü sonar
Two SideVü sonar frequency settings (455/1200 kHz) provide options for extended range of up to 500’
Easy-to-install, compact, all-in-one design includes transom and trolling motor mounts

Ultra-high Clarity

The GT54 Ultra High-Definition all-in-one transducer provides image details so clear and precise, you can actually see fish hanging just off branches of submerged trees, brush and rocks. You can see size differences between bigger and smaller fish and even see individual fish swimming in bait balls. You get the highest resolution ClearVü and SideVü scanning sonar images available plus amazingly clear high wide CHIRP traditional sonar — all in one transducer.

Ultra-high Performance

Ultra High-Definition scanning sonar provides extended range and depth performance. It shows you incredibly detailed images of fish and structure up to 200’ below your boat with 800 kHz ClearVü, while two SideVü sonar frequency settings (455/1200 kHz) provide options for extended range of up to 500’. It’s easy to install with included transom and trolling motor mounts so you can start fishing faster.

General
Transducer frequency	CHIRP High Wide (150-240 kHz); UHD ClearVü CHIRP 800 kHz (760-880 kHz); UHD SideVü 1,200kHz (1020-1230 kHz); CHIRP SideVü 455 kHz (425-485 kHz)
Transducer power	CHIRP Traditional 350 W; ClearVü/SideVü 350 W
Transducer beamwidth	CHIRP: 24°-16° ClearVü: 0.94°x60° @ 800 kHz SideVü: 1.62°x50° UHD SideVü: 0.441°x52° @ 1200 kHz
Transducer maximum depth	CHIRP: 800 ft.; ClearVü 200 ft.; SideVü 500'; UHD SideVü 125'
Transducer cable length	20 ft.
Transducer depth/speed/temperature	Depth and Temperature
Transducer number of pins	12
Transducer supported deadrise/transom angles	0°-70° degree transom

GT54UHD-TM transducer

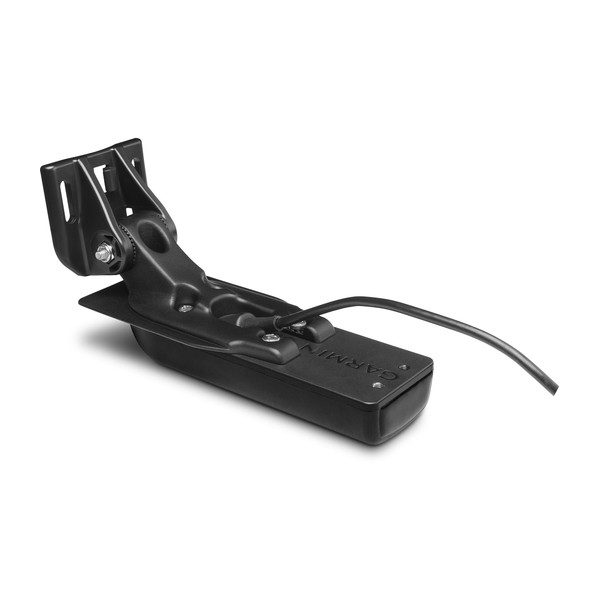

Transom mount

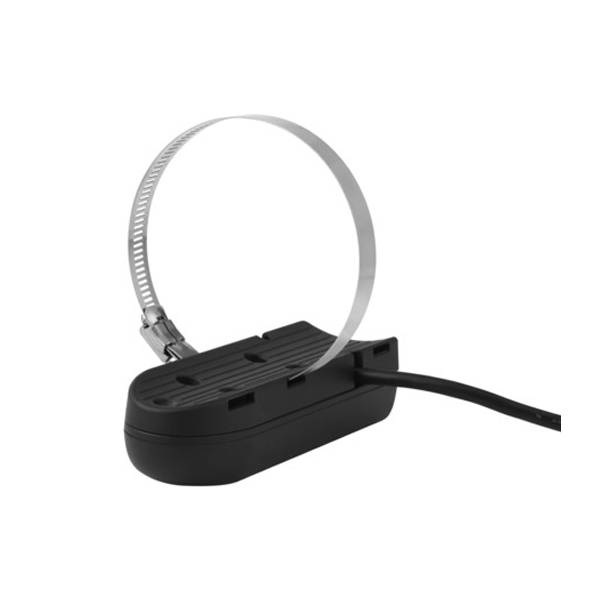

Trolling motor mount
Mounting hardware
Documentation
