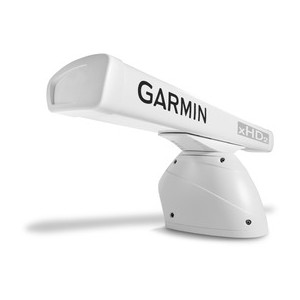

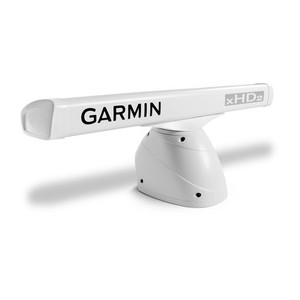

GMR™ 2524 xHD2 Open Array Radar and Pedestal

GMR™ 2524 xHD2 Open Array Radar and Pedestal

Part Number K10-00012-15

BUY NOW

Images-1 Images-2 Images-3

General

Physical dimensions

4' array: 52.25" x 5" x 6.75" (132.7 x 12.7 x 17.1 cm)

Pedestal: 20.5" x 12.75" x 12.5" (52 x 32.4 x 31.8 cm)

Weight

array: 12.2 lb (5.5 kg)

pedestal: 47.1 lb (21.4 kg)

Water ratingIPX6
Transmit power25 kW
Antenna length48" (121.92 cm)
Rotation speed (RPM)24 and 48 rpm
Beam width1.8° horizontal, 23° vertical
Maximum range96 nm
Minimum range20 meters
Radar typeOpen-Array

Radar Features

Dual range support
Radar overlay support
Dynamic Auto GainDynamic
MARPA target tracking (collision avoidance)Yes (Requires Heading Sensor, Sold Separately)
  • GMR 2524 xHD2 (Antenna and Pedestal)
  • Mounting hardware kit and template
  • Power cable (15 meters)
  • Network cable (15 meters)
  • Cable grommet
  • Voltage converter
  • Documentation
