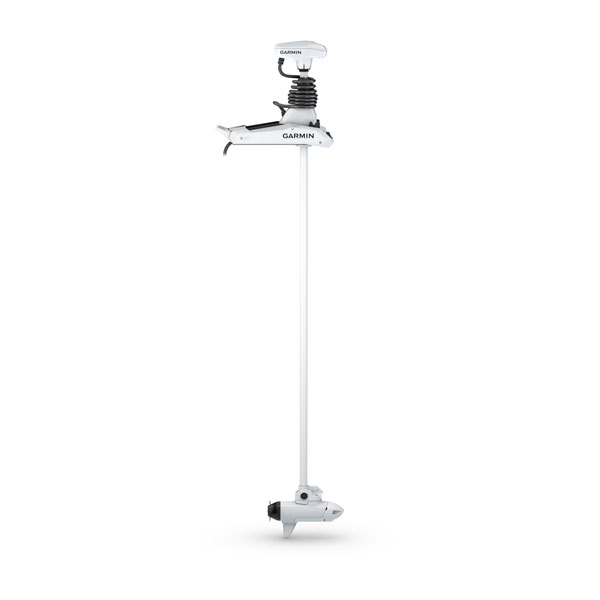

Force Kraken Trolling Motor

NEW

Part Number 010-02574-10

BUY NOW

Feature
Specs
In The Box
Update
Accessories

THERE’S A NEW LEGEND TO BEHOLD

The Force Kraken trolling motor is engineered with a longer shaft for boats with high freeboards and a pivot-style mount for easy installation in vessels where bow space is limited.

INDUSTRY’S MOST POWERFUL TROLLING MOTOR; 100 LBS OF THRUST¹

WIRELESS INTEGRATION WITH GARMIN CHARTPLOTTERS

STAY ON THE FISH WITH ANCHOR LOCK AND MULTI-BAND GPS

PIVOT-STYLE MOUNT FOR EASY INSTALLATION

AVAILABLE IN 63”, 75” AND 90” SHAFT LENGTHS

ENGINEERED FOR THE HARSH SALTWATER ENVIRONMENT

WHAT YOU'LL LOVE

HIGH POWERED

With 100 lbs of thrust¹, Force Kraken is the most powerful trolling motor on the market.

DESIGNED TO ENDURE

The sturdy composite shaft and all components are built to endure harsh marine environments and have advanced corrosion and saltwater protection.

POWER THAT LASTS

Efficient brushless motor design has longer run times than brushed motors and allows you to focus on fishing — and not running out of battery.

PURPOSE-BUILT DESIGN

This trolling motor is optimized to operate in rough open-water conditions, at either 24 or 36 volts, thanks to the powerful and efficient brushless motor design.

LIVESCOPE™ SONAR CABLE MANAGEMENT

Keep your LiveScope sonar cable protected by running the transducer cable through the trolling motor shaft (accessory purchase required).

PERFECT FOR BAY BOATS AND CENTER CONSOLES

Get easy installation where bow space is limited, thanks to the pivot-style mount. The 63”, 75” and 90” shaft lengths accommodate many different boat sizes and deck configurations.

TOTAL CONTROL

STAY PUT

The anchor lock provides our most precise boat positioning technology with multi-band GPS signal reception to help keep the boat in one place.

FLOATING REMOTE

Use the included remote to help you navigate from anywhere in the boat with our simple point -and-go technology.

SMARTWATCH INTEGRATION

Connect your compatible Garmin smartwatch to control steering, anchor lock and more from your wrist.

WIRELESS INTEGRATION

Connect to your compatible chartplotter to create and follow routes for the trolling motor to follow while you fish.

WHISPER QUIET

Don’t spook the fish; the motor is extremely quiet above and below the water.

Manage your marine experience using the free ActiveCaptain® app

Learn More

Find the right setup with our online system builder.

Learn More

¹In compliance with ISO standard 13342

Engineering enhancements are ongoing and may not be reflected in the pictures, videos and specifications.

General
Color	white
For use in	freshwater, brackish water and saltwater
Mount style	pivot-style mount
Max thrust	100 lbs per ISO 13342 using high efficiency propeller at 36 V 80 lbs per ISO 13342 using high efficiency propeller at 24 V
Voltage	24 V or 36 V
Electric steering
Built-in heading sensor
Built-in GPS	yes (dual frequency GPS)
Warranty	3-year, limited lifetime on shaft
Water rating	IPX7
Mounting location	bow
Wireless remote	yes (included)
Foot pedal compatible
Battery indicator
Variable speed control	yes (20 steps)
Lighted direction indicator
quatix remote control supported
Manual reverse control
Sonar Features
LiveScope cable integration	yes (LiveScope transducer and Kraken Mounting Bracket purchases required)
Autopilot Features
Route following
Anchor lock
Smart Anchor Lock features
Anchor lock jog
Heading hold
Cruise control
Gesture features	yes (manual+, heading hold+, jog+)
Remote Features
Display size	1.2" (30.2 mm) diameter
Display resolution	240 x 240 pixels
Display type	color, sunlight-visible, transflective memory-in-pixel (MIP)
Chartplotter user-programmable keys
Autopilot feature control
Water rating	IPX7
Battery life	typical use with backlight at low, 43 weeks
Floats
