Fusion Remote Controls

Part Number 010-02244-00

BUY NOW

Feature
Specs
In The Box
Update
Accessories

THE SUM OF AUDIO INNOVATION REIMAGINED

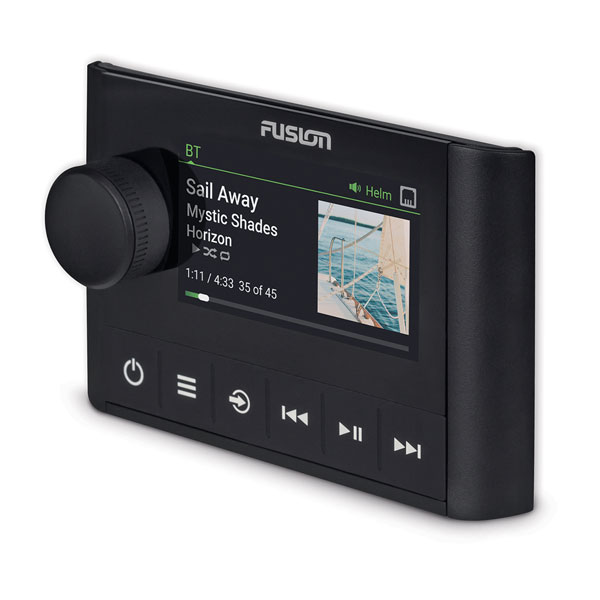

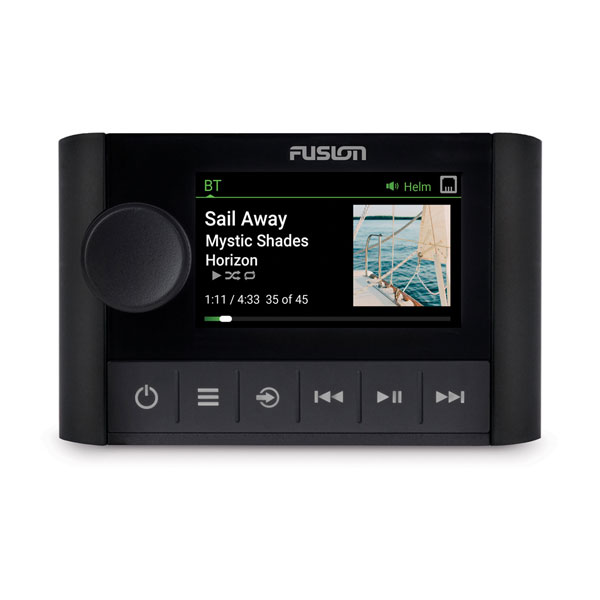

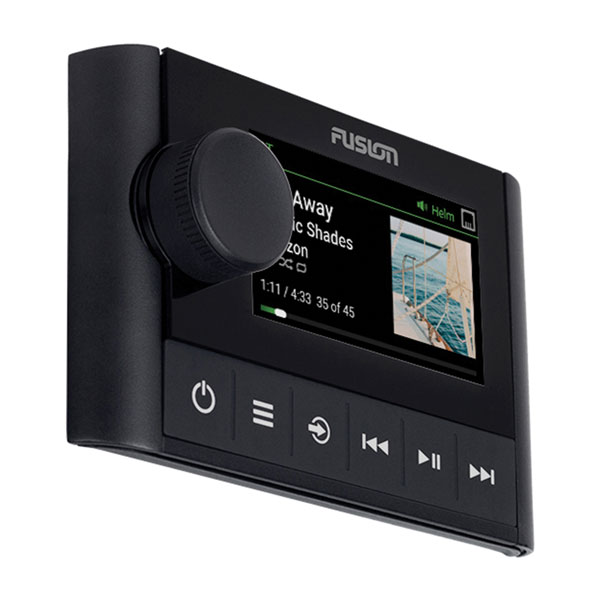

Sleek, compact and easy to install, the new Apollo ERX400 wired remote control allows you to add intuitive and integrated audio control to any zone on board your boat.

Enjoy the color album art and metadata to display information of the current track playing.

An intuitive user experience allows for seamless navigation and control of your entire boat’s Apollo Series stereo network.

The compact design and ultra-shallow mounting depth of just 49 mm [1-15/16”] increase installation options and versatility.

Enjoy easy installation and connectivity with the single Apollo ERX400 network/power cable.

Install with a conventional flat finish, or integrate it into the helm with a premium flat finish. An optional surface mount accessory spacer is also available (sold separately).

DESIGNED AND ENGINEERED TO TRUE-MARINE™ STANDARDS

Built on the True-Marine design philosophy from Fusion, the Apollo ERX400 remote is IPX6 and IPX7 rated water-resistant and has been tested to a high level of protection against salt fog, temperature, vibration and UV.

MODERN DESIGN AND AESTHETICS

Apollo ERX400 features a 2.7” optically bonded, full-color LCD that is integrated into a black glass front face. This allows the remote to blend seamlessly with the aesthetics of your boat for a premium and elegant installation.

Enjoy integrated control of your entire audio entertainment system.

NETWORKING

Connect your Apollo ERX400 wired remote to an Apollo Series stereo network using an Ethernet connection. An 8-meter proprietary Ethernet cable (010-12922-00) is included with your Apollo ERX400.

OVER-THE-AIR SOFTWARE UPDATES

Updates are now available from your compatible smartphone or device via the free Fusion-Link™ app¹. The Apollo Series is intelligently simple and easy to keep up to date.

Enjoy freedom of musical choice across the entire boat.

STEREO GROUPING

Grouping allows you to link up multiple Apollo Series stereos connected to the same network and play the same audio source synchronized across all stereos.

VOLUME CONTROL

Scroll through available zones on your boat, and enjoy independent volume control, or select ALL volume to adjust a group of connected stereos at once.

POWER OPTIONS

Power options allow you to turn on any connected Apollo Series stereo in standby mode on the PartyBus™-Network remotely from another Apollo Series stereo.

HOME ZONE

Home Zone is the physical zone on board your boat in which the stereo is installed. After adjusting audio in another zone, the stereo defaults to control of the Home Zone after a period of inactivity.

Enjoy entertainment control in the palm of your hand with the free Fusion-Link App

Learn More

Control your audio directly from an MFD with Fusion-Link wired technology.

Control your audio right from your Garmin watch with the Fusion-Link Lite™ App

Learn More

¹Available when connected via an Ethernet cable to a wireless network router (sold separately), Garmin MFD or Apollo Series stereo network enabled with Wi-Fi® technology

Wi-Fi is a registered trademark of the Wi-Fi Alliance.

General
Physical dimensions	Remote dimensions including cable (HxWxD): 2.76" x 4.32" x 2.80" (70 x 110 x 71.4 mm)
Weight (excluding cable)	3.5 oz (100 g)
Water rating	IPX6 and IPX7
Power input	10.8-32 VDC
Operating temperature range	32° to 122° F (0° to 50° C)
Current (max.)	150 mA at 12 VDC 125 mA at 14.4 VDC
Compass-safe distance	6.1" (150 mm)

Remote Features
Display	2.7" optically bonded color LCD
Multi-language interface	Bulgarian / Chinese (Simplified) / Chinese (Traditional) / Croatian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Italian / Japanese / Korean / Norwegian / Polish / Portuguese (BR) / Portuguese (PT) / Slovenian / Spanish / Swedish / Thai / Turkish
Software updates	Over-the-air software updates via the Fusion-Link app when connected to a wireless network router or integrated into an Apollo Series stereo network enabled with Wi-Fi technology via Ethernet.
Warranty	3 years

Connectivity
Connection	One power over Ethernet port

Fusion MS-ERX400 marine wired remote
Mounting gasket
Mounting template
Four 8-gauge, self-tapping screws
Two screw covers
Dust cover
8 meter network/power cable
