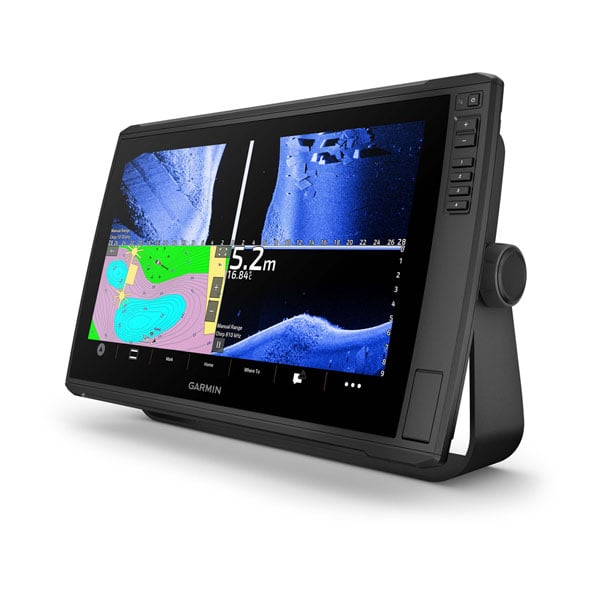

SEE BIGGER CATCHES ON A BIGGER SCREEN

Designed with the serious angler in mind, this 16-inch chartplotter with a full HD resolution display brings the ultimate in big-picture clarity, brightness and readability to your navigation mapping and sonar returns. Select models come preloaded with Garmin Navionics+^™ mapping. Plus, there’s support for the full line of LiveScope^™ sonars¹ as well as Ultra High-Definition scanning sonars and CHIRP traditional sonar.

16-INCH TOUCHSCREEN WITH KEYED ASSIST

HDMI OUTPUT CONNECTORS FOR SCREEN SHARING

BLUETOOTH^® TECHNOLOGY ENABLES VOICE CONTROL FEATURES

SUPPORTS LIVESCOPE SONAR¹ AND MORE

WIRELESSLY NETWORK; SHARE SONAR, WAYPOINTS AND ROUTES²

MULTI-BAND GPS FOR SUPERIOR POSITION ACCURACY

WHAT YOU'LL LOVE

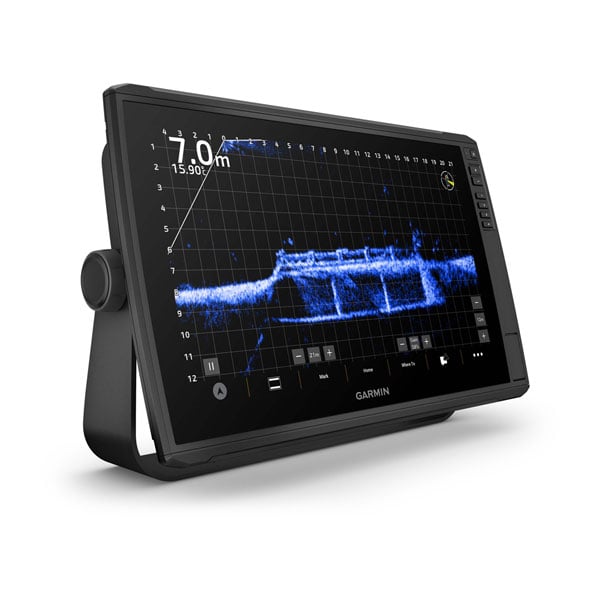

LIVESCOPE SONAR SUPPORT

The ECHOMAP Ultra 2 chartplotter series supports the full lineup of LiveScope live-scanning sonar products (transducers sold separately).

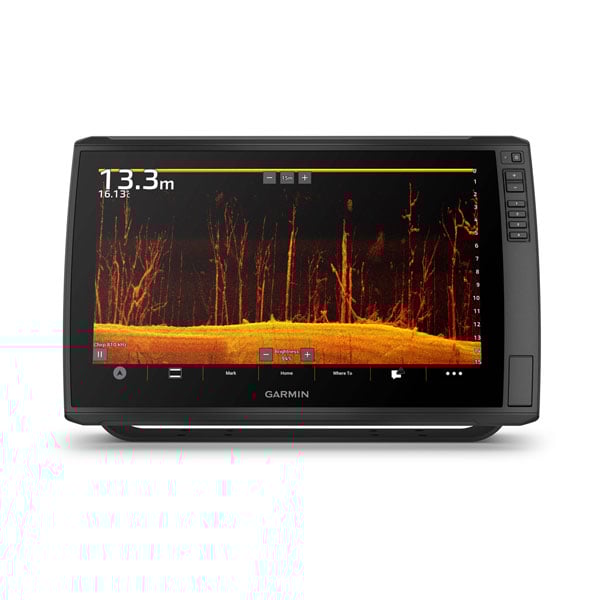

BUILT-IN UHD SONAR

Select models are bundled with a GT56 transducer that provides Garmin CHIRP traditional sonar and Ultra High-Definition ClearVü and SideVü scanning sonars for photo-like images of what’s beneath the surface.

OPTIONAL CHARTS

Compatible with Garmin Navionics+ mapping (sold separately), which includes a 1-year subscription for daily updates, depth range shading and more. For added features, Garmin Navionics Vision+ premium mapping is optionally available (sold separately).

HDMI OUTPUT

Use the chartplotter’s HDMI output connector to share your sonar screen with a TV or other external display.

VOICE CONTROL FEATURES

Built-in BLUETOOTH technology enables you to give voice commands to your chartplotter for hands-free control of such features as Force trolling motor modes, favorite keys and sonar inputs.

VIVID COLOR PALETTES

High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.

STAY CONNECTED

WIRELESS NETWORKING

Share sonar³, waypoints and routes with another ECHOMAP Ultra 2 or UHD2 plotter on board.

MULTI-BAND GPS

Get improved position accuracy with multi-band GPS

NMEA 2000 NETWORK COMPATIBILITY

Connect to heading sensors, autopilots, Fusion-Link audio systems and more.

ACTIVECAPTAIN APP

Pair with the free smart-device app for software updates, screen recording, Garmin Quickdraw Community data and more⁴.

FORCE TROLLING MOTOR

Wirelessly connect to your Force trolling motor to navigate to waypoints, draw and follow routes, and more.

SCREEN RECORDING

Use the recording feature through the ActiveCaptain app on your smartphone to share images from your chartplotter.

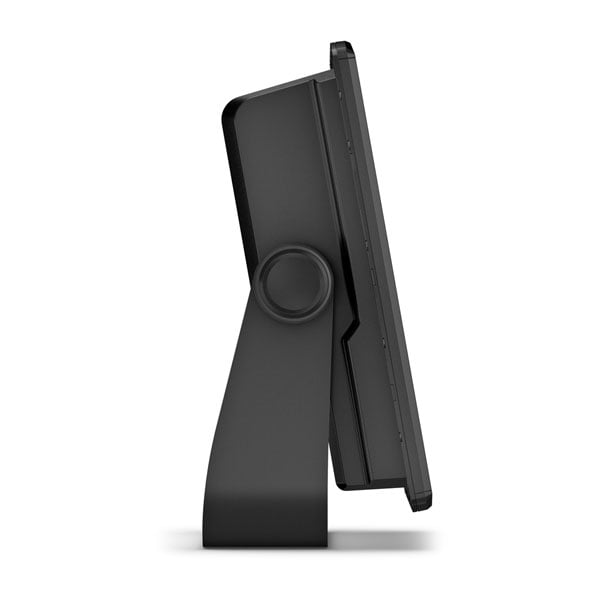

BAIL MOUNT WITH KNOBS

Surface mount your compatible ECHOMAP Ultra 2 chartplotter by using our bail mount with knobs; the mount tilts for optimum viewing.

See everything with the ultra high-definition scanning sonar system.

Manage your marine experience using the free ActiveCaptain app

Learn More

Powerful. Efficient. Quiet. Force trolling motor

Learn More

¹LiveScope System sonar transducer sold separately

²Via one-to-one unit wireless connection only

³LiveScope sonar cannot be shared wirelessly between two ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotters

⁴Requires the ActiveCaptain app on your compatible smartphone paired to your ECHOMAP Ultra 2 series chartplotter

The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc., and any use of such marks by Garmin is under license.

Purchase New Charts

General
Dimension	16.9" x 10.5" x 3.14" (43.0 x 26.6 x 8.0 cm)
Weight	9.5 lbs (4.31 kg)
Water rating	IPX7
Touchscreen
Display Type	FHD, IPS
Display Size	13.6" x 7.7"; 15.6" diagonal (34.5 x 19.5 cm; 39.7 cm diagonal)
Display Resolution	1920 x 1080 pixels
Mounting Options	Bail or flush
Input	Touchscreen with Keyed Assist
Maps & Memory
Accepts Data Cards	2 microSD™ cards
Waypoints	5000
Track points	50,000
Tracks	50 saved tracks
Navigation Routes	100
Sensors
GPS
GLONASS
Galileo
BeiDou
Has built-in receiver
Receiver	10 Hz
NMEA 2000 Compatible
NMEA 0183 Compatible
Supports WAAS
Supports multi-band, multi-constellation GPS
Built-in Maps
Built-in Auto Guidance+	yes (see Additional)
Garmin Navionics+ Inland & Coastal	yes (see Additional)
Tide tables	yes (see Additional)
Optional Map Support
BlueChart g3
BlueChart g3 Vision
LakeVü g3
LakeVü g3 Ultra
Garmin Navionics+™
Garmin Navionics Vision+™
TOPO 100K
Standard Mapping
Garmin Quickdraw Contours
Chartplotter features
AIS
DSC
Supports Fusion-Link™ compatible radios
ActiveCaptain® compatible	yes
Supports voice commands
Sailing Features
Electrical Features
Power Input	9 to 18 Vdc
Typical current draw at 12 Vdc	3.9 A
Maximum current draw at 12 Vdc	6.6 A
Maximum power usage at 10 Vdc	48 W
Sonar Features
Displays sonar
Power output	600 W
Traditional sonar (dual frequency/beam)	built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
ClearVü	Built-in 260/455/800/1000/1200 kHz
SideVü	Built-in 260/455/800/1000/1200 kHz
Panoptix™ sonar
LiveScope
Connections
NMEA 2000® ports	1
Video output ports	1 HDMI
Garmin Marine Network Ports	2 (large connector)
12-pin transducer ports	12-pin scanning sonar
BLUETOOTH® pairing
Garmin Wi-Fi network (local connection)
Additional
Additional	Garmin Navionics+ (Inland and Coastal): 166sv, 165sv Australia/New Zealand Tide tables: 166sv, 165sv Australia/New Zealand

With Transducer

ECHOMAP Ultra 162sv or 166sv (depending on the version selected) with optional Garmin Navionics+
GT56UHD-TM transducer
Power cable
Bail mount with knobs
Protective sun cover
Trim caps
Hardware
Documentation

Without Transducer

ECHOMAP Ultra 162sv or 166sv (depending on the version selected) with optional Garmin Navionics+
Power cable
Bail mount with knobs
Protective sun cover
Trim caps
8-pin transducer to 12-pin sounder adapter cable
Hardware
Documentation
