GPSMAP® 2108 Plus

Part Number 010-01323-02

BUY NOW

Feature
Specs
In The Box
Update
Accessories
Compatible Devices

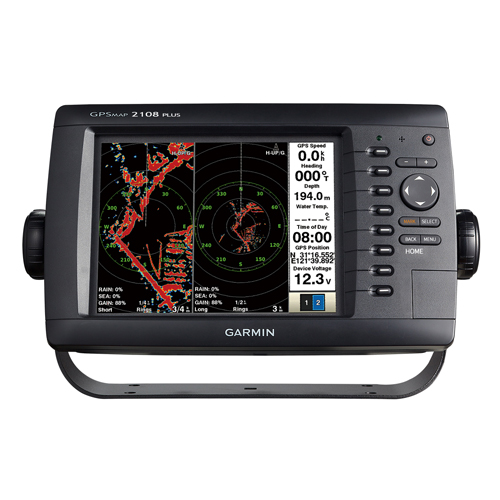

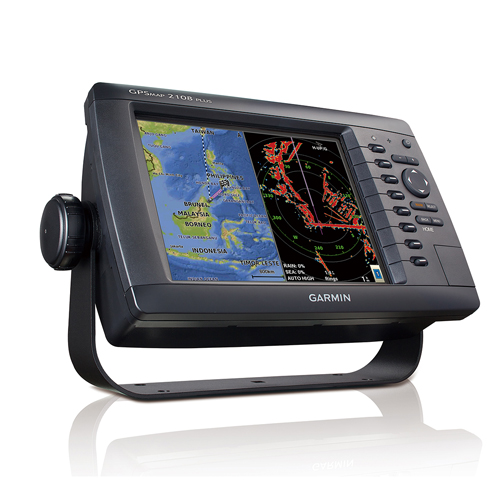

8" Keyed Chartplotter/ Radar Combo

With 8” SVGA sunlight-view color LCD with VGA video output
Preloaded worldwide base map and support Garmin BlueChart g2 vision
Beidou-enabled, high-sensitivity GPS/GLONASS built-in receiver
Supports all Garmin GMR marine radar
AIS overlay on the Chart page and the Radar page
Language support: English, Simple Chinese, Japanese, Thai, Bahasa Indonesia, Burmese

The GPSMAP2108PLUS keyed Chartplotter/Radar combo has a 8” color SVGA display and comes preloaded with a worldwide basemap.

1 Hz GPS/GLONASS/Beidou

1 Hz GPS/GLONASS/Beidou provides position and heading updates 1 time per second (GPS antenna is required for GPS/Chart-plotter function)

Expand with Radar

Featuring a built-in radar port, GPSMAP2108PLUS can be interfaced with Garmin’s line of affordable GMR™ marine radar systems (sold separately). Whether you’re adding radar now or in the future, you’ll enjoy the convenience of plug-and-play installation as well as the power, range and high-definition targeting of our proven radar offerings.

Networking

The GPSMAP2108PLUS offers select networking capabilities that allow you to share features with other compatible GPSMAP2108PLUS, such as radar, supplemental maps, and user data, such as waypoints, routes and tracks.

Radar Support

GMR xHD radar support, Dual range radar, Radar trail function, MARPA, Range ring engrave by degree, EBL/VRN range ring brightness support, Radar overlay

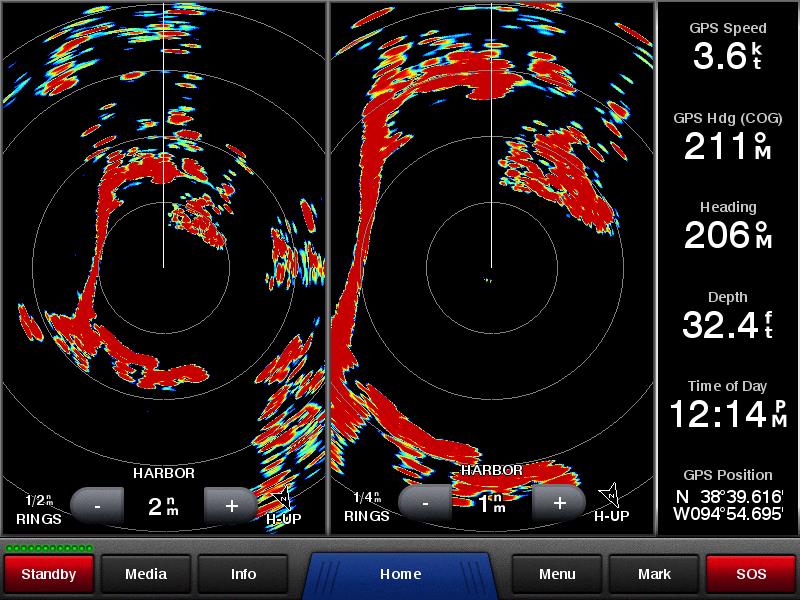

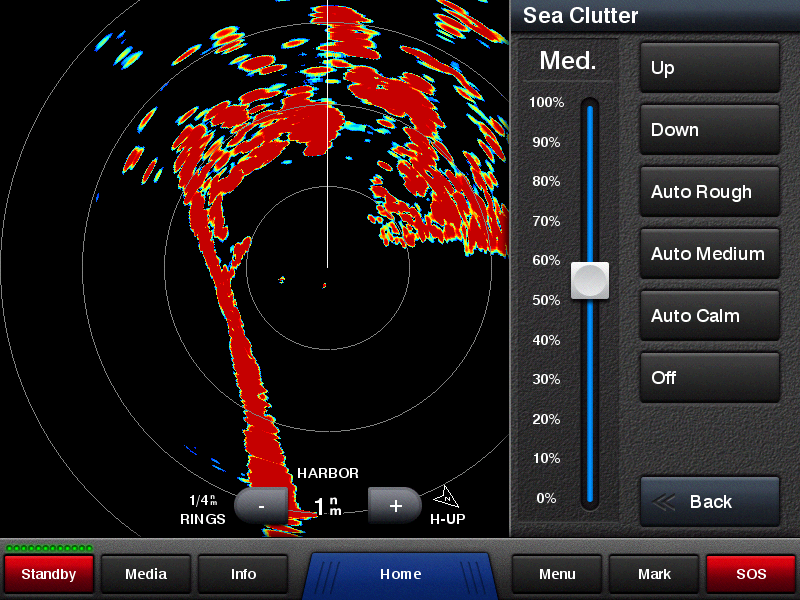

Dual Range Operation	Dynamic Auto Gain and Sea Filter

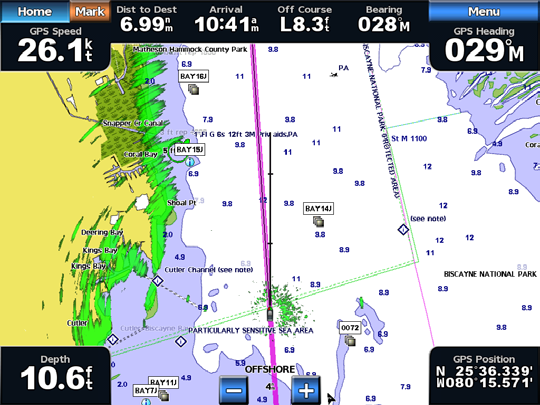

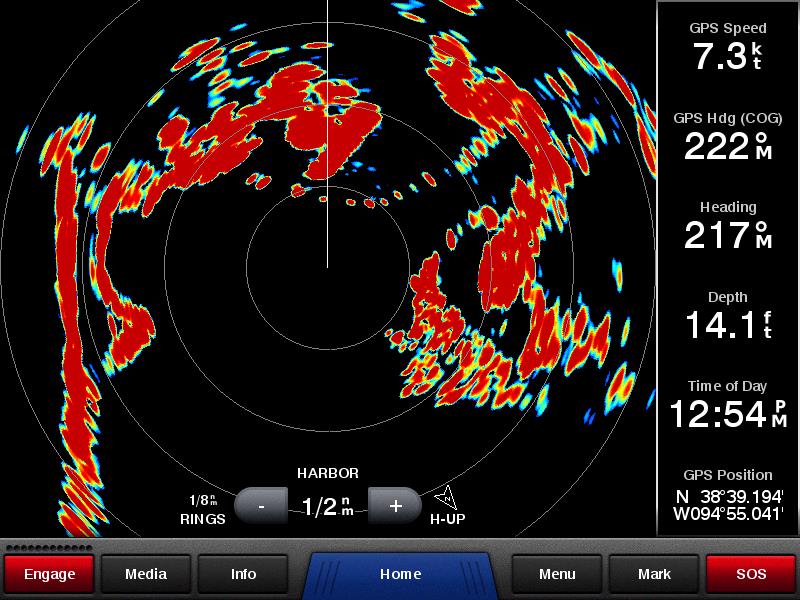

xHD performance in a dome	Radar Overlay

Manual Download

Physical & Performance
Unit dimensions, WxHxD	11.2”x6.7”x2.9”(28.5x17.2x93 cm)
Display size, WxH	6.8”x5.1”, 8.4”
Display resolution, WxH	800 x 600 pixels
Display type	SVGA display
Weight	3.1lbs(1.4kg)
Waterproof	(IPX7)
GPS Receiver	1 Hz sensitivity
GPS Antenna	With external connection (BNC)
Mounting options	Bail, flush
Power Supply Range	11-32 VDC
Power consumption	Max power usage at 10 Vdc: 14 W Typical current draw at 12 Vdc: 1.1 A Max current draw at 12 Vdc: 3.2 A

Maps & Memory
Preloaded maps	None
Accepts data cards	1 SD™ card
Waypoints	12,000
Routes	200 (max 250 waypints per route)
Track log	25,000 points; 100 saved tracks (max 2500 marks per tracks)

Features & Benefits
Garmin Radar compatible
Garmin Sonar compatible
NMEA 2000® compatible
NMEA 0183 compatible
Garmin Marine Network™ compatible	(limit capabilities)
Garmin SmartMode compatible (customizable monitor presets)
Supports AIS (Automatic Identification System)	(NMEA0183)
Supports DSC (displays position data from DSC-capable VHF radio)	(NMEA0183)
Tide tables
GSD™ Black Box sonar support
GCV™ Black Box sonar support
BlueChart® Mobile (planning) compatible
Garmin Helm compatible
GRID™ (Garmin Remote Input Device) compatible
Wireless remote compatible
Wireless mouse compatible

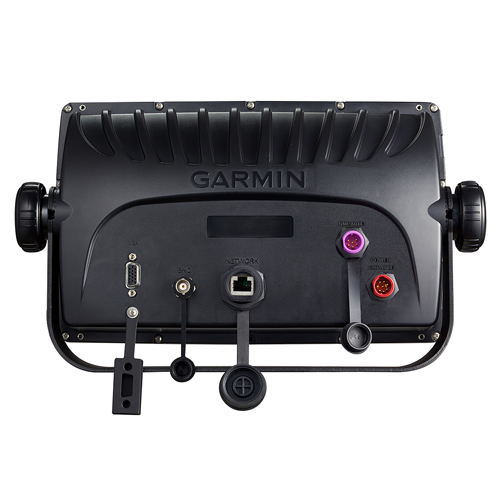

Connections
NMEA 0183 input ports	2
NMEA 0183 output ports	2
Video input ports	None
Video output ports	(D-Sub)
Wireless connectivity
Garmin Marine Network™ ports	1 (RJ45)

In The Box

GPSMAP2108PLUS with worldwide basemap
Power/data cable
Bail mount
Protective cover
Documentation

Download the File

Software License Agreement

By downloading, installing, or using this software, you agree to be bound by the terms and conditions of the following license agreement. Please read this agreement carefully.

Garmin Corporation ("Garmin") grants you a limited, non-exclusive license to use the upgrade software ("Software") in binary executable form in the normal operation of the applicable Garmin products. Title, ownership rights, and intellectual property rights in and to the Software remain in Garmin. This license is personal to you and you may make copies of the software only for your personal use. You agree that this license agreement does not need to be signed for it to take effect.

The software is provided on an "as is" basis without warranty of any kind — either expressed or implied — including, without limitation, any implied warranties of merchantability or fitness for a particular purpose. Garmin does not warrant the performance of the software or that the software will meet your requirements or operate error free.

You acknowledge that this Software is the property of Garmin and is protected under United States of America copyright laws and international copyright treaties. You further acknowledge that the structure, organization, and code of the Software are valuable trade secrets of Garmin and that the Software in source code form remains a valuable trade secret of Garmin. You agree not to decompile, disassemble, modify, reverse assemble, reverse engineer, or reduce to human readable form the Software or any part thereof or create any derivative works based on the Software.

You agree not to export or re-export the Software to any country in violation of the export control laws of the United States of America.

2019/06/29

GPSMAP2108 Plus v3.00

Download(19.6 MB)

GPSMAP2108 Plus v3.00

Release Note:

Add support for the ZDA sentence

How to Update the Software?

Click on 'Download' and choose to save the file to your computer.
Choose a location where you can easily find the file, such as the 'My Documents' folder or 'C:\'.
Once the download is complete, go to the location where you saved the file.
Double-click on the downloaded file. This will automatically extract the files to C:\Garmin and run a program to transfer the software update to an SD card.
Power on the device and make sure all attached network devices are powered on as well.
Insert the card into the card slot of your primary device. Select 'Update Software' in the window that automatically displays. If you do not have a primary device with a card slot, please see your dealer.
After the update completes, all Garmin Marine Network devices and NMEA 2000 sensors will have the latest software. This ensures all of the devices will be able to communicate with each other. Note: If you have additional chartplotters connected to NMEA 2000 and not the Garmin Marine Network, you will have to independently update each chartplotter. After the update of the Garmin Marine Network completes, insert the update card into each NMEA 2000 chartplotter.

NOTE：

This software should only be uploaded to the unit for which it is intended. If this software is uploaded to a GPS unit other than the product it is designed for, it will render the unit inoperative.
If the software upload fails, and subsequent upload attempts prove unsuccessful, the unit may need to be returned to Garmin for service. Call Garmin at +886.2.26429199 ext2 or email Garmin. You may also contact Garmin authorised dealer for product support.
Before proceeding, please back up your waypoints and route data. You may back up the data by copying the GPX files in the Garmin disk to your computer. This software should only be uploaded to the unit for which it is intended. If this software is uploaded to a GPS unit other than the product it is designed for, it will render the unit inoperative.
