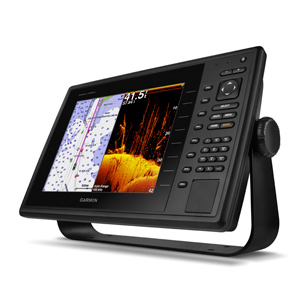

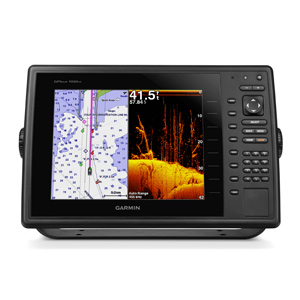

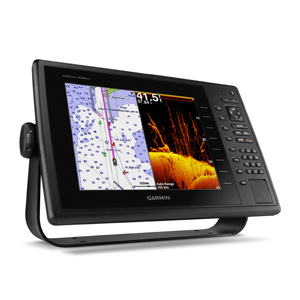

GPSMAP® 1020xs

Part Number 010-01183-00

BUY NOW

Feature
Specs
In The Box
Update
Accessories
Compatible Devices

10" Keyed Chartplotter/Sonar Combo for Cruising, Sailing or Fishing

Keyed chartplotter/sonar combo with 10” color SVGA display
Preloaded worldwide basemap
Built-in Garmin HD-ID™ and supports CHIRP and ClearVü™ scanning sonar with CHIRP technology
High-sensitivity internal 10 Hz GPS/GLONASS receiver
Supports all Garmin marine radar

The GPSMAP 1020xs keyed chartplotter/sonar combo has a 10” color SVGA display and comes preloaded with a worldwide basemap. HD-ID, CHIRP and ClearVü with CHIRP sonar technology are built-in, allowing you the flexibility to choose from several optional transducers.

Extreme Sonar Capabilities

The built-in sonar capabilities of the GPSMAP 1020xs gives you the freedom and flexibility to choose from several optional transducers, including traditional, CHIRP and all-in-one HD-ID/ClearVü scanning sonar with CHIRP technology. Add a GCV™ 10 black box sonar for both ClearVü and SideVü™ scanning sonar with CHIRP technology (sold separately).

CHIRP Support

When used with a compatible CHIRP transducer (sold separately), GPSMAP 1020xs displays crystal-clear sonar images detailing fishing hot spots, ship wreckage or a diving location. With Garmin CHIRP technology, you get remarkable target separation and resolution at extraordinary depths, and can dial into specific frequencies to target certain species of sport fish. Bottom contours are more visible, even at speed, and signal noise can be suppressed at greater depths to provide a more timely interpretation of what’s below for safer navigation and better fishing.

Dynamic Sea Temperature

Set a range for sea temperatures, and it dynamically adjusts to display a color range that can be used to target certain types of fish. (Optional GXM™ 52 required) .

Radar Support

Add your choice of marine radar, either open array or our new xHD dome radar that pair ease of use with advanced open array features.

Super-fast 10 Hz GPS/GLONASS

High-sensitivity internal 10 Hz GPS/GLONASS provides position and  heading updates 10 times per second. It displays fluid on-screen location and proves to be incredibly accurate when marking waypoints and navigating.

NMEA 2000® Support

This combo allows you to add more capabilities to your boat. It provides NMEA 2000 support so you can see valuable information on your screen for Garmin autopilot, engine data, SiriusXM Weather radar and more.

Networking

The GPSMAP 1020xs offers select networking capabilities that allow you to share features with other compatible GPSMAP units, such as radar, GCV 10 ClearVü and SideVü scanning sonar, supplemental maps, and user data, including waypoints, routes and tracks. User data entered into 1 chartplotter can be automatically synced with other chartplotters in a network.

Special Sailing Features

Supported sailing features include laylines, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider.

GND™ 10 Black Box Interface

The GND 10 black box interface seamlessly integrates Nexus instruments and sensors with the Garmin family. It converts data between the Nexus network and NMEA 2000 to provide trouble-free compatibility between Nexus and Garmin products, including gWind™ and gWind Race wind transducers.

Compatible with gWind Transducers

Garmin gWind, gWind Wireless and gWind Race transducers feature twin-fin technology with 3-bladed propeller. Connect to the NMEA 2000 and compatible Garmin chartplotters via the GND 10 black box bridge.

Get Your Apple® Device Onboard with BlueChart® Mobile

With BlueChart Mobile, a free app downloaded from the App Store™, you can plan marine routes on your iPad® or iPhone® then wirelessly transfer them to your boat’s compatible networked Garmin chartplotter. Even if you don’t have a Garmin chartplotter, you can still take advantage of the tremendous features of BlueChart on your Apple device.

View and Control Your Device From an iPhone or iPad

Garmin Helm™ allows you to view and control your compatible Garmin chartplotter from an iPhone or iPad — while providing enhanced situational awareness for the mariner. Easily switch between portrait and landscape mode to accommodate mounting preferences. Using your Apple digital mobile device, you can even record a movie of your chartplotter screen to share with friends and family. Download from the App Store today.

Apple, iPhone and iPad are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc.

Physical & Performance
Physical dimensions	14.1" x 9.3" x 2.9 " (35.9 x 23.6 x 7.5 cm)
Display size, WxH	8.3" x 6.2"; 10.4" diagonal (21.1 x 15.8 cm; 26.4 cm diagonal)
Display resolution, WxH	800 x 600 pixels
Display type	SVGA display
Weight	4.7 lbs (2.1 kg)
Water rating	IPX7
Receiver	10 Hz high-sensitivity
Antenna	Internal with external connection
Mounting options	Bail, flat or flush
Power consumption	Max power usage at 10 Vdc: 20 W Typical current draw at 12 Vdc: 1.7 A Max current draw at 12 Vdc: 3.8 A

Maps & Memory
Preloaded maps
Accepts data cards	2 SD™ cards
Waypoints	5,000
Routes	100
Track log	50,000 points; 50 saved tracks

Features & Benefits
Garmin Radar compatible
Garmin Sonar compatible	(built-in) and GCV™ black box compatible
NMEA 2000® compatible
NMEA 0183 compatible
Garmin Marine Network™ compatible	(limited capabilities)
Garmin SmartMode compatible (customizable monitor presets)
Supports AIS (tracks target ships position)
Supports DSC (displays position data from DSC-capable VHF radio)
Tide tables
Garmin Meteor Audio System compatible
Supports Fusion Lync compatible marine radios
GSD™ Black Box sonar support
GCV™ Black Box sonar support
SiriusXM™ Weather & Radio compatible
BlueChart® Mobile (planning) compatible
Garmin Helm compatible
GRID™ (Garmin Remote Input Device) compatible
Wireless remote compatible
Wireless mouse compatible

Sonar Features & Specifications
Dual-frequency (50/200 kHz) sonar capable
Dual-beam (77/200 kHz) sonar capable
Frequencies supported	50/77/200 kHz, CHIRP (low, medium, high), ClearVü
Transmit power	1 kW traditional; 600 W CHIRP
CHIRP sonar technology	(Built-in)
ClearVü™	with CHIRP (built-in)
SideVü™	(with GCV™ black box, sold separately)
Voltage range	10-32 Vdc input
Maximum depth	1,750 ft @ 50 kHz, saltwater, Garmin dual freq transducer @ 500 W 2,700 ft @ 50 kHz, saltwater, Airmar B260 transducer @ 1000 W (depth capacity is dependent on water bottom type and other water conditions)
Bottom lock (shows return from the bottom up)
Water temperature log and graph
Sonar recording
Sonar history rewind

Connections
NMEA 0183 input ports	2
NMEA 0183 output ports	2
Video input ports
Video output ports
Wireless connectivity
Garmin Marine Network™ ports	1

AQUAMAP 100xs with worldwide basemap
Power/data cable
Bail mount
Flush mount
Protective cover
Documentation
GPS Antenna & Mount Adapter
