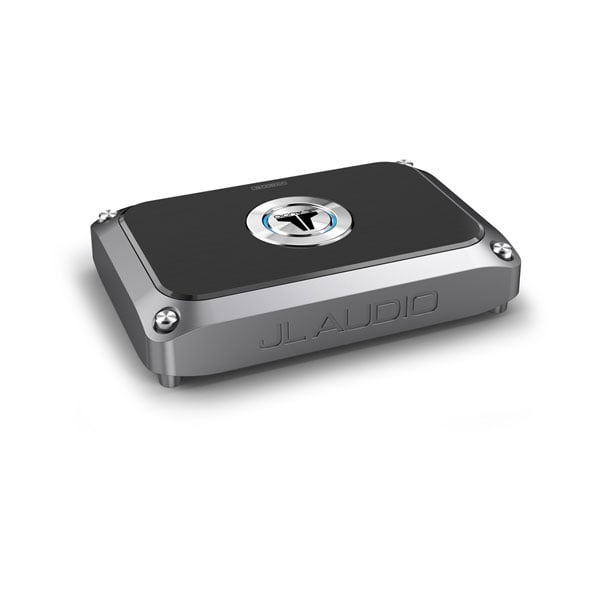

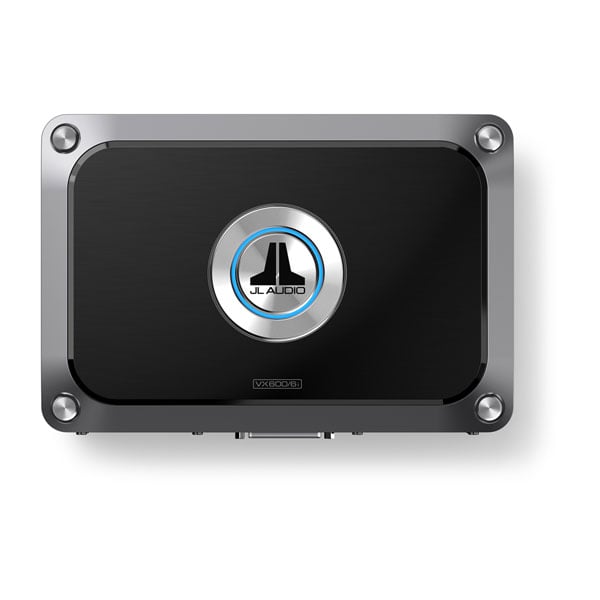

JL Audio VXi Car Full-Range Amplifier

6 Channel Full-range Amplifier with Integrated DSP (600) (VX600/6i)

Part Number 010-03171-00

BUY NOW

Feature
Function
Specs
In The Box
Update
Accessories
Compatible Devices

REFERENCE-GRADE AMPLIFIERS WITH DIGITAL SIGNAL PROCESSING (DSP) TECHNOLOGY

Offering exceptional tuning power and flexibility, VXi amplifiers combine our second-generation NexD2^™ high-speed switching technology with a powerful DSP, all within a compact, beautiful package.

COMPREHENSIVE ONBOARD TUNING FOR EXCEPTIONAL SOUND QUALITY

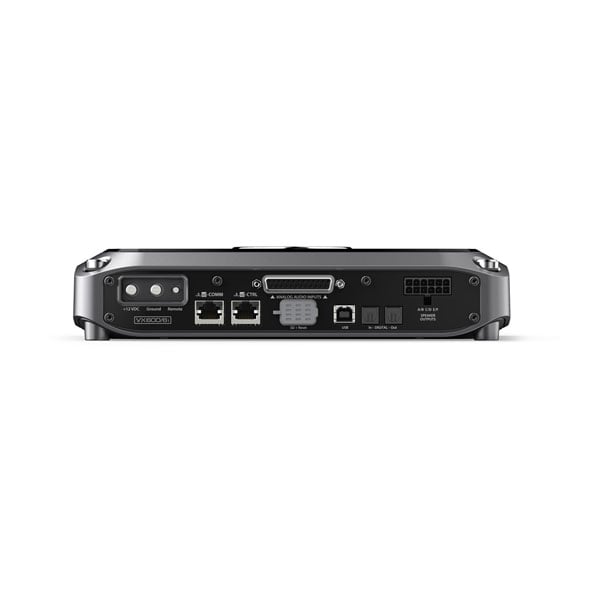

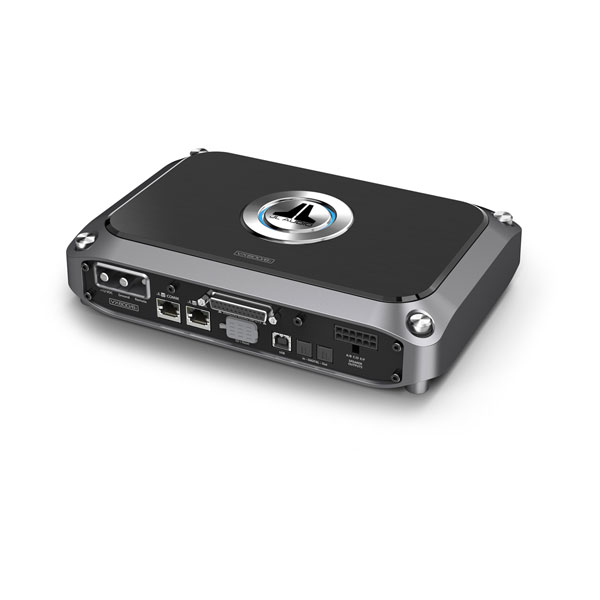

REMOVABLE POWER, SIGNAL AND SPEAKER CONNECTORS

12-VOLT REMOTE WIRE, SIGNAL SENSING OR DC OFFSET TURN-ON OPTIONS

UP TO 6 REMOTE-CONTROLLED STORABLE PRESETS (REMOTE SOLD SEPARATELY)

FULLY CONFIGURABLE ANALOG OR OPTICAL OUTPUT CHANNEL

2-YEAR WARRANTY

WHAT YOU'LL LOVE

ONBOARD TUNING POWER

Each VXi amplifier is packed with a complete package of DSP functions, including equalizer, delay, crossover signal routing, mixing and more.

ADVANCED CLASS-D AMPLIFIER DESIGN

Innovative, high-speed switching design synchronizes an amplifier’s power supply and output channels, resulting in top-flight fidelity with ultralow noise and distortion.

NO KNOBS AND SWITCHES

TüN is free software from JL Audio that is used to make all setup and audio adjustments. It’s available for download in a variety of uses for computers and most handheld devices.

ELIMINATE AUDIBLE NOISES

A versatile design accepts speaker level signals without a line-output converter; it also delivers outstanding noise rejection while preventing alternator whine and other noises.

ADVANCED ROLLBACK PROTECTION

An exclusive protection circuit monitors the amplifier’s thermal condition, adjusting amplifier operation to eliminate annoying shut-down events and keep the music playing.

FULLY CONFIGURABLE OUTPUT CHANNEL

Using the TüN software interface, you may configure the routing, equalization, output level and DRC control functionality.

VXi AMPLIFIER TECHNOLOGIES

JLid PROTOCOL COMMAND

This proprietary JL Audio protocol provides easy control and communication of all settings for VXi amplifiers and optional JLid accessories.

DIFFERENTIAL-BALANCED INPUTS

Combating induced cable noise, this technology allows for the use of conventional RCA cables while delivering many of the benefits of a true balanced connection and accepting a wide range of input signal levels.

DSP INSIDE

Powerful DSP technology optimizes each channel’s timing, frequency response and output levels for exceptional sound quality.

NexD2 SWITCHING TECHNOLOGY

Fidelity and efficiency are significantly enhanced by employing new components and more advanced circuit layouts.

General
Warranty	2 years
Channels	2/4/6/8
Physical dimensions (Height)	2.12" (54 mm)
Physical dimensions (Width)	4-Channel: 9.02" (229 mm) 2/6-Channel: 9.81" (250 mm) 8-Channel: 11.32" (287 mm)
Physical dimensions (Depth)	6.62" (168 mm)
Weight	2-Channel: 5.4 lbs (2.45 kg) 4-Channel: 5.0 lbs (2.27 kg) 6-Channel: 5.55 lbs (2.5 kg) 8-Channel: 6.5 lbs (2.95 kg)
Operating voltage	11-14.5 VDC
Audio
Amplifier class	Class D
Rated continuous (RMS) power (14.4 V input @ 4 Ohm < 1% THD)	2-Channel: 180 W x 2/600 W x 1 (Bridged) 4-Channel: 75 W x 4/200 W x 2 (Bridged) 6-Channel: 75 W x 6/200 W x 3 (Bridged) 8-Channel: 75 W x 8/200 W x 4 (Bridged)
Rated continuous (RMS) power (14.4 V input @ 2 Ohm < 1% THD)	2-Channel: 300 W x 2 4-Channel: 100 W x 4 6-Channel: 100 W x 6 8-Channel: 100 W x 8
Rated continuous (RMS) power (12.5 V input @ 4 Ohm < 1% THD)	2-Channel: 140 W x 2/450 W x 1 (Bridged) 4-Channel: 60 W x 4/180 W x 2 (Bridged) 6-Channel: 60 W x 6/180 W x 3 (Bridged) 8-Channel: 60 W x 8/180 W x 4 (Bridged)
Rated continuous (RMS) power (12.5 V input @ 2 Ohm < 1% THD)	2-Channel: 225 W x 2 4-Channel: 90 W x 4 6-Channel: 90 W x 6 8-Channel: 90 W x 8
Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs	99 dB
Signal-to-Noise Ratio, referred to highest rated power: Digital Inputs	2-Channel: 100 dB 4/8-Channel: 101 dB 6-Channel: 99 dB
Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs	2-Channel: 76 dB 4/6/8-Channel: 80 dB
Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Digital Inputs	2-Channel: 78 dB 4-Channel: 81 dB 6-Channel: 80 dB 8-Channel: 82 dB
Damping factor @ 4 Ω	>100/50 Hz
Damping factor @ 2 Ω	>50/50 Hz
THD+N @ Rated Power	<1% @ 2 Ω
Frequency response (+0, -1dB)	12 Hz-21 kHz
Input voltage range @ RCA inputs	200 mV-16 V RMS
Fuse rating	2/6-Channel: 50 A 4-Channel: 40 A 8-Channel: 80 A
Recommended fuse type(s)	AFS, AGU or MaxiFuse™
Min. copper power/Ground wire gauge	4 AWG wire

VXi amplifier
Power connector
Analog input harness
Speaker output harness
6-foot USB A/B cable
Four corner caps
Corner cap tool
2.5 mm Allen wrench
3 mm Allen wrench

no data.
