Panoptix PS70 Transducer Only

Part Number 010-02768-10

BUY NOW

Feature
Specs
In The Box
Update
Accessories

SEE FISH LIVE. CATCH FISH DEEP.

The Panoptix PS70 stainless steel thru-hull transducer is powered by Garmin RapidReturn^™ sonar, which gives you live sonar views up to 1,000’ below the surface.

LIVE SONAR UP TO 1,000'

MULTIPLE SONAR MODES

WIDE SONAR BEAM

IMAGE STABILIZATION

THRU-HULL MOUNTING

800-WATT POWER OUTPUT

WHAT YOU'LL LOVE

GARMIN RAPIDRETURN SONAR

This sonar sends multiple simultaneous pings through the water column. The result is live sonar capabilities up to 1,000’, giving deep sea anglers a real-time view of what’s below the surface.

LIVEVÜ^™ DOWN SONAR

See real-time live sonar images up to 1,000’. With Garmin RapidReturn, anglers can see small baitfish and target game fish in real time. The wide 120-degree beam angle covers huge areas of water.

TRADITIONAL SONAR

View crisp, clear fish arches with excellent separation of targets under the boat.

TRIPLE-BEAM SONAR

Get a 3-way traditional sonar split that gives sonar returns from the port and starboard directions, as well as targets directly under the boat, in an easy-to-understand traditional sonar view. Adjust the beam angles to fine-tune your 3 columns of sonar data.

REALVÜ^™ 3D SONAR

Historical scanning technology helps find fish and build a map of the ocean floor while your boat is moving. It shows the entire water column you have passed over in 3D, from the bottom to the surface and all fish in between. The True Motion 3D sonar returns feature now follows the vessel’s course over ground.

QUICKDRAW CONTOURS FEATURE

Survey areas of the ocean floor in great detail. New QuickDraw Contours feature improvement allows users to survey wide swaths of the ocean floor, even at depths up to 1,000’.

GET THE PERFORMANCE YOU NEED FOR DEEP-SEA FISHING

CATCH MORE FISH

LIVE SONAR DISPLAY RATE

Panoptix PS70 will display at a minimum of 10 frames per second (6 to 8 times faster than the competition), which results in faster sonar returns.

WIDE SONAR BEAM

Locate bait and fish quickly with wide 120-degree by 8-degree sonar beam, which covers more of the water column at once.

IMAGE STABILIZATION

An internal AHRS sensor will stabilize sonar returns, so you see a clear view even in rough waters.

THRU-HULL INSTALLATION

The stainless steel thru-hull transducer can be flush mount or pocket mounted. A fairing block allows for deadrise angles of 0 to 20 degrees. The optional fairing block can survive high operating speeds and withstand the rough conditions found offshore.

HIGH-POWER SONAR

800-watt power output gives you stronger sonar penetration through the water.

General
Transducer beamwidth	120° x 8°
Transducer cable length	8 ft + 40 ft extension
Dimension	8.50" x 4.49" x 9.61" (21.6 x 11.4 x 24.4 cm)
Weight	10.12 lbs (4.6 kg)
Water rating	IPX7
Temperature range	0° C to 40° C
Electrical Features
Power Input	10-35 V
Power usage	35 W
Fuse	7.5 A
Sonar Features
Frequency	190-210 kHz
Transmit power	800 W
Maximum depth	Saltwater: 1000' (304.8 m)
Sonar Type	multi-beam phased array
Connections
Garmin Marine Network Ports	1 (small connector)
Sonar Modes
RealVü 3D Historic
3-beam traditional
Traditional sonar source

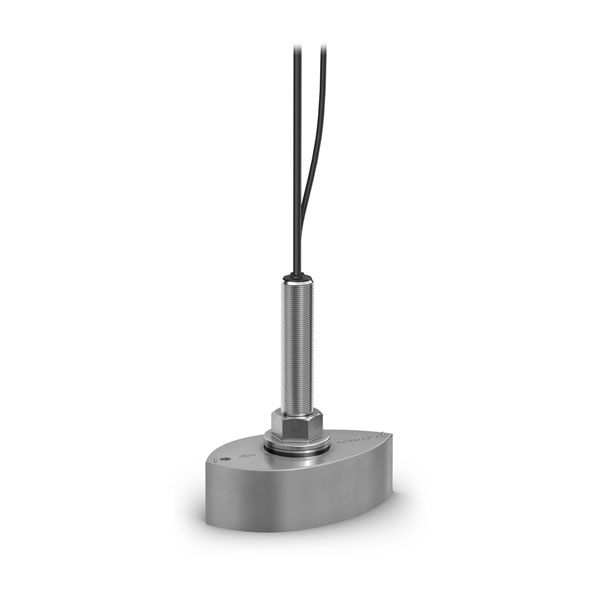

PS70 down-looking thru-hull down transducer
Stainless steel thru-hull mounting hardware
Power cable
Network cable 40 ft (12 meters) with network adapter
Documentation

Panoptix PS70 Transducer Only
