JL Audio M7 Marine Subwoofer

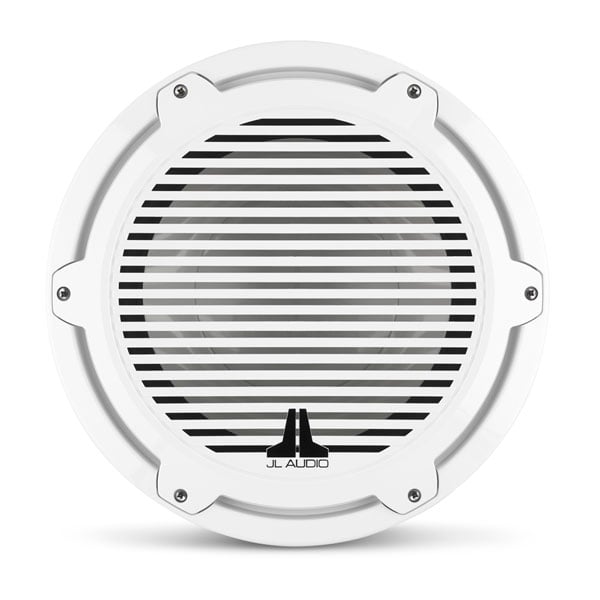

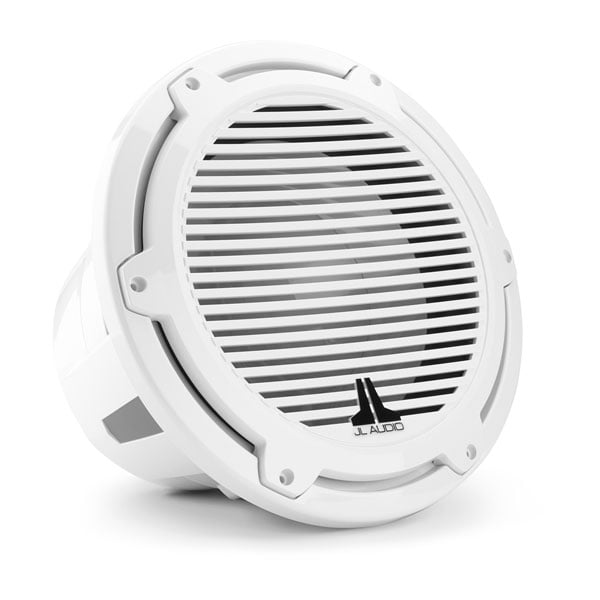

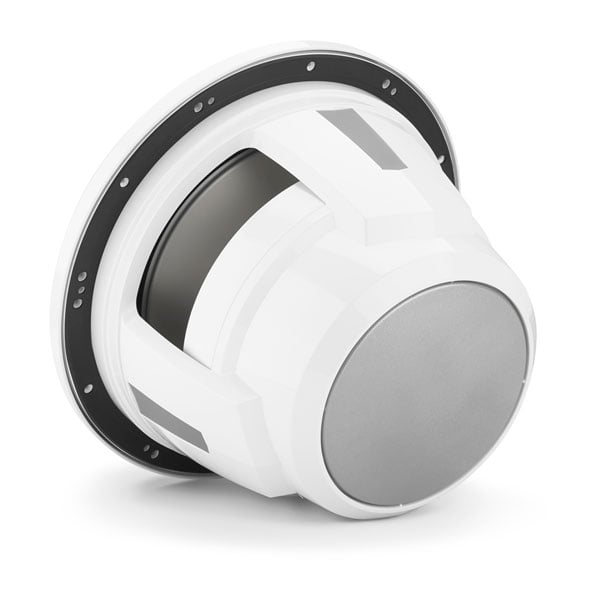

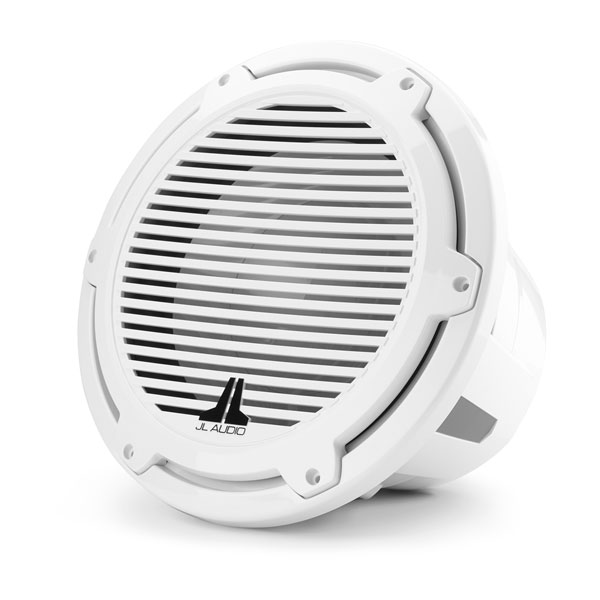

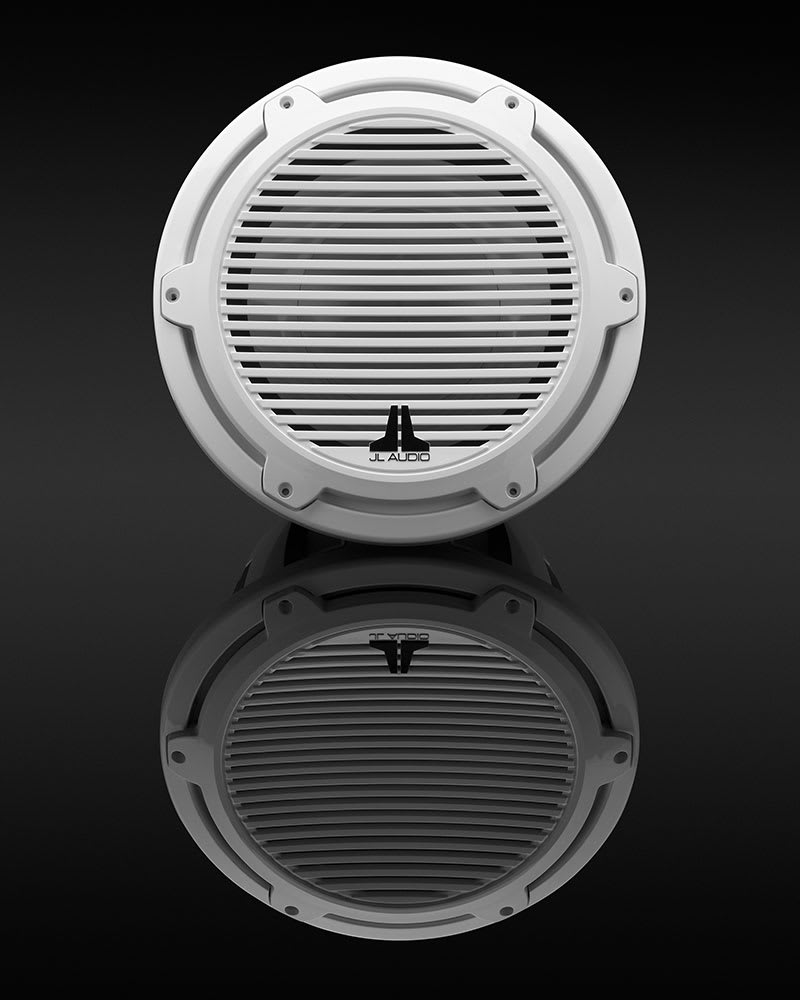

12" with White Classic Grille (M7-12IB-C-GwGw-4)

Part Number 010-03285-00

BUY NOW

Feature
Function
Specs
In The Box
Update
Accessories

KING OF BASS

With oversized, overbuilt components and very powerful motor systems, M7s are extreme subwoofers optimized for high-power operation in open-air applications.

GENERATES STUNNING BASS IN OPEN-AIR APPLICATIONS

ENGINEERED FOR USE WITHOUT A DEDICATED ENCLOSURE

GRILLE AND TRIM RING ARE EASILY REMOVABLE FOR PAINTING

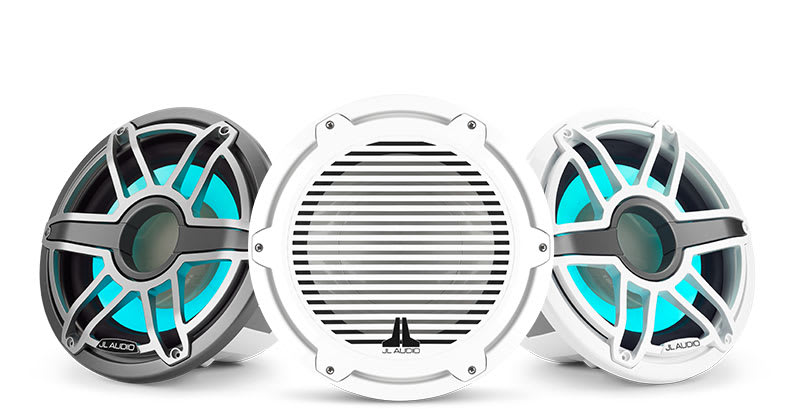

MODELS AVAILABLE WITH PATENTED LED ILLUMINATION

EXCEEDS INTERNATIONAL STANDARDS FOR SALT FOG AND UV EXPOSURE

3-YEAR WARRANTY

WHAT YOU'LL LOVE

INCREDIBLE DISPLACEMENT

Displacement is a direct measure of a subwoofer’s output capability. With more than twice the displacement of most 10-inch subwoofers, the M7-12IB is in a class of its own.

INFINITE BAFFLE DESIGN

M7 marine subwoofers are purpose-engineered to operate without dedicated enclosures, needing only large volumes of air behind them.

HIGH POWERED

The M7 marine subwoofer easily handles up to 600 watts RMS.

DMA-OPTIMIZED WOOFERS

Proprietary motor, suspension and cone modeling systems are employed, resulting in reduced distortion, improved transient performance and stellar bass sound quality.

REAL MARINE DUTY

For long-term use, all models are built to withstand saltwater marine environments and deliver years of listening enjoyment.

TRANSFLECTIVE RGB LED LIGHTING

Get a patented system on sport models for smooth lighting with no hot spots or reflections.

General
Sizes	12"
Color	White Classic, White Sport or Titanium Sport
Physical dimensions (Diameter)	14" (356 mm)
Physical dimensions (Depth)	12" (Classic): 9.39" (239 mm) 12" (Sport): 9.42" (240 mm)
Weight	25.35 lbs (11.5 kg)
Speaker type	Infinite Baffle Subwoofer
Continuous power handling (RMS)	600 W
Sensitivity (SPL @ 1 W/1 m)	86.7 dB
Nominal impedance	4 Ω
Recommended amplifier power (RMS)	200-600 W
LED lighting	yes - Transflective™ (selected Sport models only)
LED supply voltage	10-14.4 VDC
LED Load Current @ 14.4 VDC (max)	648 mA
Voice coil diameter	4" (102 mm)
Cone material	Injection-molded, mica-filled polypropylene
Warranty	3 years
Connections
Speaker connections	Spade Connectors
LED connection	Flying Lead with 4-conductor 20 AWG wire (selected Sport models only)
Mounting Dimensions
Mounting depth clearance	7.94" (202 mm)
Frontal grille protrusion	12" (Classic): 1.45" (37 mm) 12" (Sport): 1.48" (38 mm)
Mounting hole	12.0625" (306 mm)
Bolt hole circle	12.813" (325 mm)
Driver displacement	0.148 cu ft (4.19 L)
Parameters
Free Air Resonance (FS)	35.34 Hz
Electrical “Q” (Qes)	0.856
Mechanical “Q” (Qms)	10.389
Total “Q” (Qts)	0.791
Equivalent Compliance (Vas)	1.99 cu ft (56.35 L)
One-way linear excursion (Xmax; specs are derived via one-way voice coil overhang method with no correction factors applied)	0.73" (18.5 mm)
Reference Efficiency (NO)	0.28%
Effective piston area (SD)	80.54 in² (0.052 m²)
DC resistance (RE)	3.543 Ω
Sealed Enclosure Specifications
Wall thickness	0.75" (19 mm)
Front baffle thickness	0.75" (19 mm)
Volume (net int.)	3.00 cu ft (85 L)
External width (W)	24" (610 mm)
External height (H)	18.5" (470 mm)
External depth (D)	15.75" (400 mm)
-3 dB cutoff frequency (F3)	35.52 Hz
System resonance (FC)	45.58 Hz
System Q at resonance (QTC)	1.02
Ported Enclosure Specifications
Wall thickness	0.75" (19 mm)
Front baffle thickness	0.75" (19 mm)
Volume (net int.)	5.00 cu ft (141.6 L)
External width (W)	30" (762 mm)
External height (H)	18.5" (470 mm)
External depth (D)	20.5" (521 mm)
Internal port diameter (ID)	5" (127 mm)
Port length (L)	13.5" (343 mm)
Tuning frequency (FB)	25 Hz
-3 dB cutoff frequency (F3)	20.96 Hz
Additional
Additional	The enclosure recommendations listed above are external dimensions which assume the use of 0.75" (19 mm) thick material. If you are using 0.625" (16 mm) thick material, subtract 0.25" (6.5 mm) from each dimension. Do not use any material with a thickness of less than 0.625" (16 mm) as this may compromise the rigidity of the enclosure. All enclosure volumes listed above are net internal volumes. Driver displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions above have already taken this into account. When using multiples in a common enclosure you will need to recalculate the enclosure and port dimensions. For assistance please contact your authorized JL Audio dealer or JL Audio Technical Support. We recommend the use of this in a bi-amplified system using high-quality satellites and a high-quality amplifier. We do not recommend the use of this with a passive crossover (coil), as this type of device will adversely affect performance.

One marine subwoofer
One grille
Six stainless steel mounting screws
Six stainless steel washers
