JL Audio M6 Marine Enclosed Tower Speakers | Marine

JL Audio M6 Marine Speakers

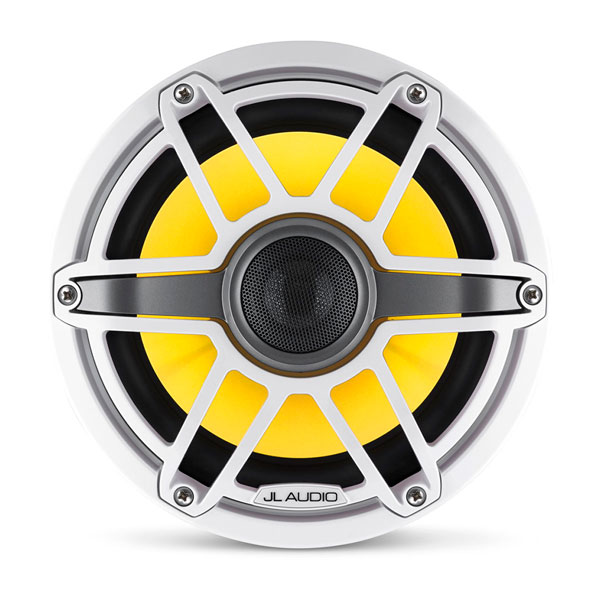

8.8" with LED and White Sport Grille (M6-880X-S-GwGw-i)

Part Number 010-03095-00

BUY NOW

Feature
Function
Specs
In The Box
Update
Accessories

MAXIMUM PERFORMANCE

Featuring a long-excursion woofer design paired with a suspended tweeter, M6 marine speakers are designed to yield unmatched frequency response and linear performance at all listening levels.

SUPERIOR OUTPUT AND DETAIL AT ALL LISTENING LEVELS

OFFERED IN 3 SIZES AND 7 LOOKS TO FIT YOUR STYLE

GRILLE AND TRIM RING ARE EASILY REMOVABLE FOR PAINTING

MODELS AVAILABLE WITH PATENTED LED ILLUMINATION

EXCEEDS INTERNATIONAL STANDARDS FOR SALT FOG AND UV EXPOSURE

3-YEAR WARRANTY

WHAT YOU'LL LOVE

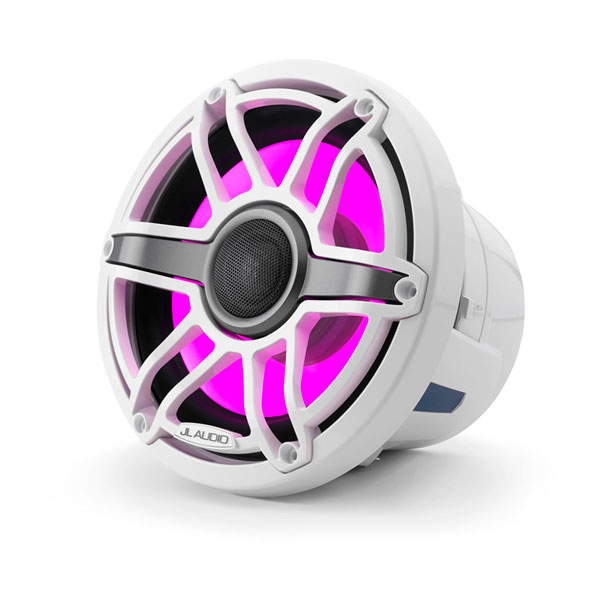

TRANSFLECTIVE RGB LED LIGHTING

Get a patented system on sport models for smooth lighting with no hot spots or reflections.

DMA-OPTIMIZED WOOFERS

Proprietary motor, suspension and cone modeling systems are employed, resulting in reduced distortion, improved transient performance and stellar bass sound quality.

MATCHING SILK DOME TWEETERS

Precisely tuned tweeters, uniquely sized for each woofer’s diameter, produce sparkling detail and excellent off-axis response for balanced coverage in the entire listening area.

ADVANCED FILTER NETWORKS

Each woofer chassis houses a multi-order, true two-way crossover optimized for each speaker size and electronic tweeter protection circuit to minimize the possibility of tweeter failure.

POWERFULLY EFFICIENT

M6 marine speakers are designed to benefit from operation with quality amplification.

REAL MARINE DUTY

For long-term use, all models are built to withstand saltwater marine environments and deliver years of listening enjoyment.

General
Warranty	3 years
Sizes	6.5"/7.7"/8.8"
Color	White Classic, White Sport or Titanium Sport or Luxe Satin Black or Luxe Satin White
Physical dimensions (Diameter)	6.5" (Classic/Sport): 6.90" (175 mm) 6.5" (Luxe): 8.34" (212 mm) 7.7" (Classic/Sport): 7.70" (196 mm) 7.7" (Luxe): 9.13" (232 mm) 8.8" (Classic/Sport): 8.80" (224 mm) 8.8" (Luxe): 10.25" (260 mm)
Physical dimensions (Depth)	6.5" (Classic): 3.94" (100 mm) 6.5" (Sport/Luxe): 4.02" (102 mm) 7.7" (Classic): 4.35" (110 mm) 7.7" (Sport/Luxe): 4.4" (112 mm) 8.8" (Classic): 6.37" (162 mm) 8.8" (Sport/Luxe): 6.45" (164 mm)
Speaker type	Coaxial
Continuous power handling (RMS)	6.5": 75 W 7.7": 100 W 8.8": 125 W
Sensitivity (SPL @ 1 W/1 m)	6.5": 89.5 dB 7.7": 91.0 dB 8.8": 90.5 dB
Frequency response (+/- 3 dB)	6.5": 55 Hz-25 kHz 7.7": 45 Hz-25 kHz 8.8": 38 Hz-25 kHz
Nominal impedance	4 Ω
Recommended amplifier power (RMS)	6.5": 25-150 W/Channel 7.7": 40-200 W/Channel 8.8": 50-250 W/Channel
LED lighting	yes - Transflective™ (selected Sport models only)
LED supply voltage	10-14.4 VDC
LED Load Current @ 14.4 VDC (max)	6.5"/7.7": 324 mA 8.8": 486 mA
Cone material	Injection-molded, mica-filled polypropylene
Tweeter type	Silk Dome
Tweeter size	6.5": 0.8" (20 mm) 7.7": 1" (25 mm) 8.8": 1.25" (32 mm)
Networking & Connections
Speaker connections	Spade Connectors
LED connection	Flying Lead with 4-conductor 20 AWG wire (selected Sport models only)
Mounting Dimensions
Mounting depth clearance	6.5" (Classic/Sport): 3" (76 mm) 6.5" (Luxe): 3.87" (98 mm) 7.7" (Classic/Sport): 3.32" (84 mm) 7.7" (Luxe): 4.26" (108 mm) 8.8" (Classic/Sport): 5" (127 mm) 8.8" (Luxe): 6.30" (160 mm)
Frontal grille protrusion	6.5": 0.94" (24 mm) 6.5" (Sport): 1.02" (26 mm) 6.5" (Luxe): 0.37" (9 mm) 7.7": 1.03" (26 mm) 7.7" (Sport): 1.08" (27 mm) 7.7" (Luxe): 0.38" (10 mm) 8.8": 1.37" (35 mm) 8.8" (Sport): 1.45" (37 mm) 8.8" (Luxe): 0.48" (12 mm)
Mounting hole	6.5" (Classic/Sport): 5"-5.25" (127-133 mm) 6.5" (Luxe): 6.75" (172 mm) 7.7" (Classic/Sport): 6.25" (159 mm) 7.7" (Luxe): 7.50" (191 mm) 8.8" (Classic/Sport): 7.375" (187 mm) 8.8" (Luxe): 8.625" (219 mm)
Bolt hole circle	6.5" (Classic/Sport): 6.13" (156 mm) 6.5" (Luxe): 7.39" (188 mm) 7.7" (Classic/Sport): 6.92" (176 mm) 7.7" (Luxe): 8.18" (208 mm) 8.8" (Classic/Sport): 7.97" (202 mm) 8.8" (Luxe): 9.27" (235 mm)
Additional
Additional	The enclosure recommendations listed above are external dimensions which assume the use of 0.75" (19 mm) thick material. If you are using 0.625" (16 mm) thick material, subtract 0.25" (6.5 mm) from each dimension. Do not use any material with a thickness of less than 0.625" (16 mm) as this may compromise the rigidity of the enclosure. All enclosure volumes listed above are net internal volumes! Driver displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions above have already taken this into account. When using multiples in a common enclosure you will need to recalculate the enclosure and port dimensions. For assistance please contact your authorized JL Audio dealer or JL Audio Technical Support. We recommend the use of this in a bi-amplified system using high-quality satellites and a high-quality amplifier. We do not recommend the use of this with a passive crossover (coil), as this type of device will adversely affect performance.

Two marine coaxial loudspeakers*
Two grilles*
Twelve stainless steel mounting screws*
Twelve stainless steel screws washers*
Grille removal tool (Luxe models only)
Mounting template

*Single speaker models contain half of the contents listed
