JL Audio M6 Marine Enclosed Tower Speakers | Marine

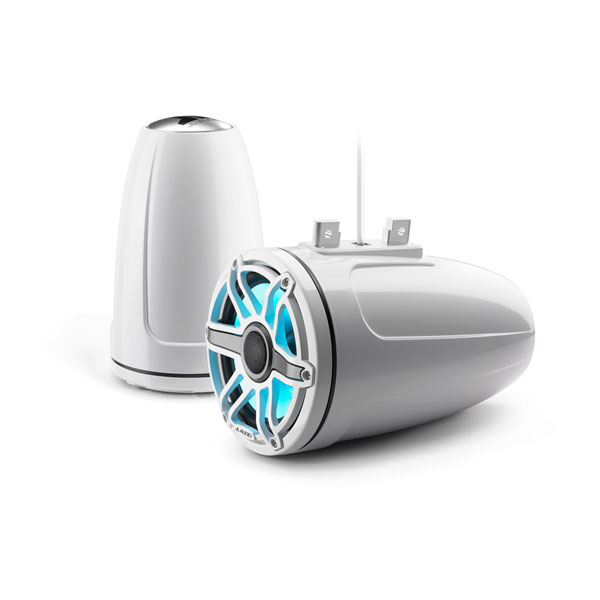

JL Audio M6 Marine Speakers

7.7" with LED and White Sport Grille (M6-770ETXv3-Gw-S-GwGw-i)

Part Number 010-03278-00

BUY NOW

Feature
Function
Specs
In The Box
Update
Accessories

UNLEASH GREAT SOUND BEYOND YOUR BOAT

Whether you’re on the boat or riding the wake behind it, the JL Audio M6 is the ultimate tower speaker system for delivering powerful, crystal-clear sound that you can hear and enjoy well beyond the boat.

POWERFUL MIDBASS OUTPUT IN OPEN-AIR APPLICATIONS

7.7- OR 8.8-INCH COAXIAL SPEAKERS WITH SILK DOME TWEETERS

WIDE RANGE OF TUBULAR OR SURFACE-MOUNTING OPTIONS

AVAILABLE WITH PATENTED TRANSFLECTIVE RGB LED LIGHTING

EXCEEDS INTERNATIONAL STANDARDS FOR SALT FOG AND UV EXPOSURE

3-YEAR WARRANTY

WHAT YOU'LL LOVE

TOWERING PERFORMANCE

Robust M6 speakers are ideal for wakeboard towers or other tubular structures — or they can be flat mounted to decks and other surfaces to deliver superb sound quality with strong projected output.

DMA-OPTIMIZED WOOFERS

Proprietary motor, suspension and cone modeling systems are employed, resulting in reduced distortion, improved transient performance and stellar bass sound quality.

MATCHING SILK DOME TWEETERS

Precisely tuned tweeters, uniquely sized for each woofer’s diameter, produce sparkling detail and excellent off-axis response for balanced coverage in the entire listening area.

ADVANCED FILTER NETWORKS

Each woofer chassis houses a multi-order, true two-way crossover optimized for each speaker size and electronic tweeter protection circuit to minimize the possibility of tweeter failure.

POWERFULLY EFFICIENT

M6 series marine speakers used in this system benefit from operation with quality amplification for superior audio clarity at all volume levels.

REAL MARINE DUTY

For long-term use, all models are built to withstand saltwater marine environments and deliver years of listening enjoyment.

General
Warranty	3 years
Sizes	7.7"/8.8"
Color	White Classic, White Sport or Titanium Sport
Physical dimensions (Diameter)	7.7": 7.70" (196 mm) 8.8": 8.80" (224 mm)
Physical dimensions (Depth)	7.7" (Classic): 12.62" (321 mm) 7.7" (Sport): 12.67" (322 mm) 8.8" (Classic): 14.73" (374 mm) 8.8" (Sport): 14.80" (376 mm)
Speaker type	Enclosed Coaxial
Continuous power handling (RMS)	7.7": 100 W 8.8": 125 W
Sensitivity (SPL @ 1 W/1 m)	7.7": 91.0 dB 8.8": 90.5 dB
Frequency response (+/- 3 dB)	7.7": 45 Hz-25 kHz 8.8": 38 Hz-20 kHz
Nominal impedance	4 Ω
Recommended amplifier power (RMS)	7.7": 40-200 W/Channel 8.8": 50-250 W/Channel
LED lighting	yes - Transflective™ (selected Sport models only)
LED supply voltage	10-14.4 VDC
LED Load Current @ 14.4 VDC (max)	7.7": 324 mA 8.8": 486 mA
Cone material	Injection-molded, mica-filled polypropylene
Tweeter type	Silk Dome
Tweeter size	7.7": 1" (25 mm) 8.8": 1.25" (32 mm)
Networking & Connections
Speaker connections	Flying Lead with 16 AWG wire (10 ft)
LED connection	Flying Lead with 4-conductor 20 AWG wire (selected Sport models only, 10 ft)
Additional
Additional	The enclosure recommendations listed above are external dimensions which assume the use of 0.75" (19 mm) thick material. If you are using 0.625" (16 mm) thick material, subtract 0.25" (6.5 mm) from each dimension. Do not use any material with a thickness of less than 0.625" (16 mm) as this may compromise the rigidity of the enclosure. All enclosure volumes listed above are net internal volumes! Driver displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions above have already taken this into account. When using multiples in a common enclosure you will need to recalculate the enclosure and port dimensions. For assistance please contact your authorized JL Audio dealer or JL Audio Technical Support. We recommend the use of this in a bi-amplified system using high-quality satellites and a high-quality amplifier. We do not recommend the use of this with a passive crossover (coil), as this type of device will adversely affect performance.

Two wake tower enclosures with marine coaxial loudspeakers and grills installed
Two aluminum logo caps
One tube of silicone adhesive
Eight red butt splice connectors (#22-18 AWG)
Four blue butt splice connectors (#16-14 AWG)
