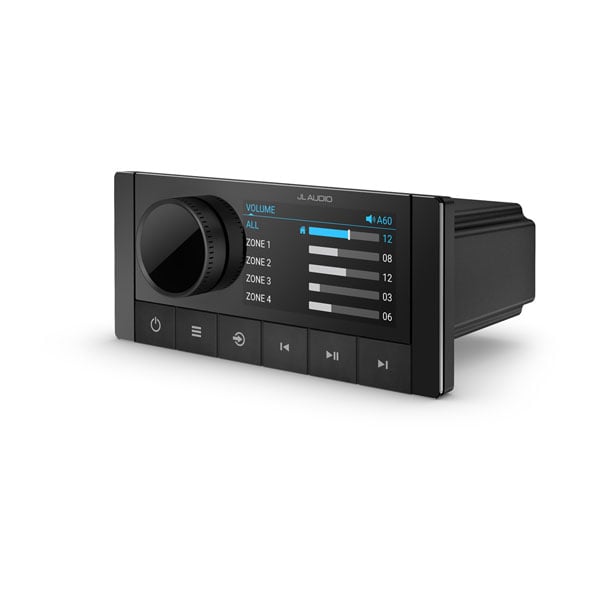

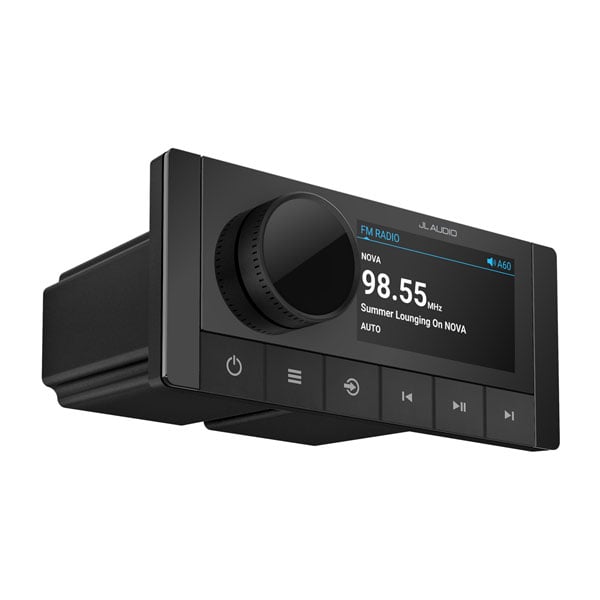

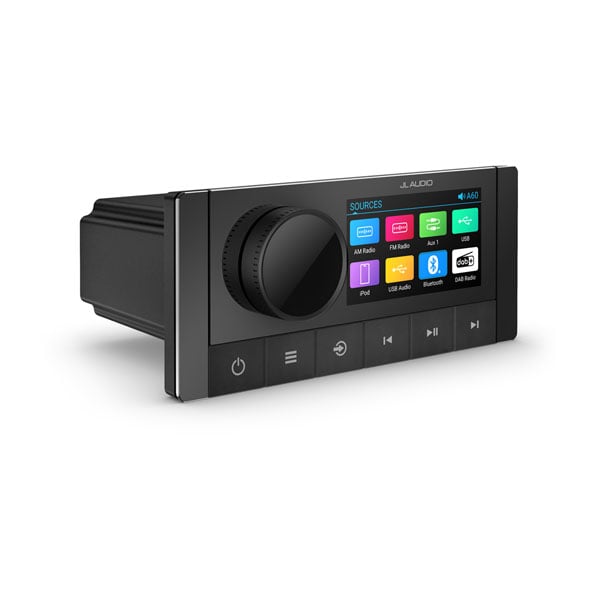

JL Audio A60

Part Number 010-02983-00

BUY NOW

Feature
Function
Specs
In The Box
Update
Accessories

SOUNDWAVES MADE FOR THE WATER

Cruise to the soundtrack of the A60 advanced marine head unit — the high-quality sound system with a sleek, aesthetic design to complement your helm.

BLUETOOTH 6.1 LE AUDIO STREAMING

SLEEK, HIGH-RESOLUTION 2.95-INCH COLOR DISPLAY

DIGITAL SIGNAL PROCESSING (DSP) OPTIMIZES AUDIO AND PROTECTS SPEAKERS AND SUBWOOFERS

MULTI-ZONE TECHNOLOGY IN 4 ZONES

NMEA 2000 NETWORK FOR INTEGRATION WITH YOUR COMPATIBLE CHARTPLOTTER

MULTIPLE OPTIONS FOR WIRELESS CONTROL

WHAT YOU'LL LOVE

DSP TECHNOLOGY

Built-in DSP technology optimizes the audio signal sent to your system and manages the power delivered to your speakers and subwoofers for a superior listening experience.

HIGH-RESOLUTION COLOR DISPLAY

Enjoy a clear view of your audio information on the 2.95-inch color screen. It’s fog-resistant and daylight-readable to stay visible, no matter the weather conditions.

BUILT-IN DIGITAL AUDIO BROADCASTING (DAB) TUNER

This head unit natively supports DAB technology, providing a clear and reliable alternative to traditional AM/FM radio in regions where DAB is available.

OVER-THE-AIR SOFTWARE UPDATES

Wireless software updates via Bluetooth LE technology are available from compatible smart devices with the free Garmin Audio app.

WIRELESS AUDIO CONTROL

Easily control your audio from anywhere on your boat with your compatible Garmin smartwatch or the Garmin Audio smartphone app.

NMEA 2000 COMPATIBILITY

This marine head unit system is compatible with an NMEA 2000 network, ensuring premium audio control via Garmin MFDs and the JL Audio NRX-300 wired remote (sold separately).

DESIGN AND TECHNOLOGIES

BLUETOOTH LOW ENERGY STREAMING

Enjoy advanced audio streaming from smart devices through Bluetooth 6.1 LE technology (supports LC3 codec).

MULTI-ZONE TECHNOLOGY

Control your audio in up to 4 separate zones. Supports 4 speaker and 4 subwoofer pre-amp outputs for connection to compatible amplifiers.

EASY TUNE FUNCTIONALITY

With the free Garmin Audio app, you can easily set up DSP and enjoy high-quality audio customized for your listening environment.

MARINIZED DESIGN

This head unit is rated IPX6 and IPX7 for water ingress protection and has been tested to a high level of protection against salt fog, temperature, vibration and UV exposure.

The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Garmin is under license.

General
Warranty	3 years
Physical dimensions (Height)	2.68" (68 mm)
Physical dimensions (Width)	6.18" (157 mm)
Physical dimensions (Depth)	4.70" (119 mm)
Weight	1.04 lbs (470 g)
Control Surface Dust/Water Rating (when properly installed)	IPX6 and IPX7
Rear Dust/Water Rating (when properly installed)	IPX6 and IPX7
Operating temperature range	32° F to 122° F (0° C to 50° C)
Current draw (max)	15 A
Multi-language interface	Bulgarian, Chinese (Simplified), Chinese (Traditional), Croatian, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (BR), Portuguese (PT), Slovenian, Spanish, Swedish, Thai, Turkish, Vietnamese
Audio
Rated continuous (RMS) power (14.4 V input @ 4 Ohm < 1% THD)	17 W x 4 (CTA-2006)
Maximum dynamic power (14.4 V input @ 4 Ω < 10% THD)	22 W x 4 (CTA-2006)
Total maximum dynamic power	89 W (CTA-2006)
Electrical Features
Power Input	10.8-16 VDC
Compass safe distance	17.7" (45 cm)
Stereo Features
Display size	2.95" (74 mm)
Display type	color LCD
Display resolution	640 x 360 pixels
Optically bonded display	yes
Built-in amplifier	Class D (4 Ω)
Built-in Digital Signal Processing (DSP)	yes (with custom DSP profile setup using Garmin Audio app)
Garmin audio control	yes (MFD, smart device and Garmin watch)
Multi-Zone technology	4 zones
Bluetooth wireless technology	yes (Bluetooth® 6.1)
DAB+ Built-in
Software updates	Over-the-air updates via Garmin Audio app/USB
Sources
Supported sources	AM, FM, Bluetooth, USB, USB audio, iPhone, iPod, AUX x1
Supported audio formats (USB)	MP3, M4A, AAC, FLAC, WAV
Networking & Connections
Auxiliary inputs (RCA)	1
NMEA 2000 ports	1
NMEA 2000 LEN	1 (50 mA)
USB 2.0 ports	1 (USB-C)
AM/FM ports (Motorola antenna connector)	1
DAB+ ports (Motorola antenna connector)	1
Speaker connections	4 (2 zone amplified)
RCA pre-out (left, right and subwoofer - requires external amplification)	4 zones
Line out (requires external amplification)	4 (L + R per zone)
Subwoofer out (requires external amplification)	4 (1 mono output per zone)
Wireless frequencies/protocols	Bluetooth® Classic: 2.4 GHz @ +10 dBm nominal Bluetooth Low Energy: 2.4 GHz @ +10 dBm nominal
Bluetooth wireless range	up to 30 ft (10 meters)

JL Audio A60
Power/speaker harness
Zone 1 and zone 2 harness
Zone 3 and zone 4 harness
Mounting hardware
Documentation

no data.
