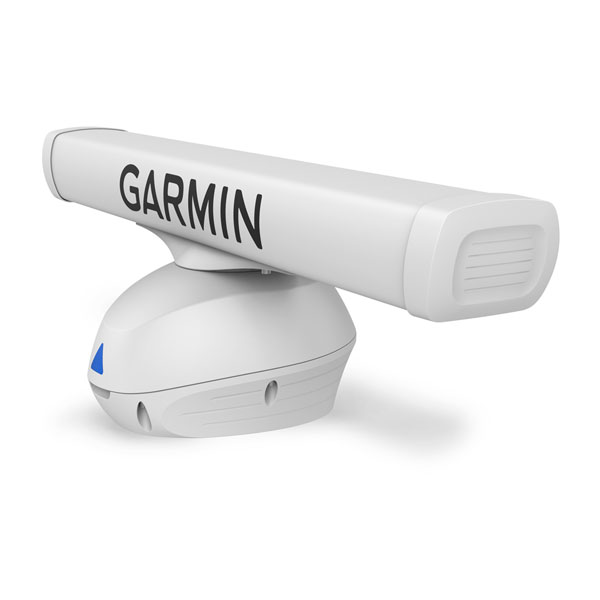

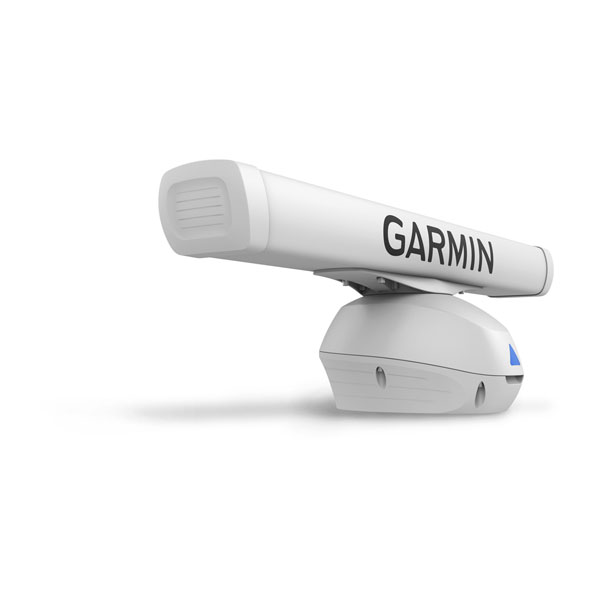

GMR Fantom 254

Part Number K10-00012-21

BUY NOW

Feature
Specs
In The Box
Update
Accessories

THE POWER TO SEE MORE

GMR Fantom™ 254 is the most powerful 4’ consumer solid-state radar.

We’ve got the power. 250 watts of it to be exact.

Know the long and short of it with a detection range of 20’ to 96 nautical miles.

MotionScope™ highlights everything that moves so there are no surprises.

The more the merrier with MARPA. Keep track of up to 30 moving targets.

Clear the clutter with scan-to-scan averaging.

Know what’s out there.

MOTIONSCOPE TECHNOLOGY

Detect and highlight moving targets in different colors to help avoid collisions, find flocks of birds and track weather from 20’ to 96 nautical miles.

AUTOMATIC ACQUISITION

New mini-automatic radar plotting aid (MARPA) automatic acquisition allows for triggering and tracking of up to 30 targets with no user prompting on all returns, boundary zones, guard zones or MotionScope.

CLEAR THE WAY

Scan-to-scan averaging aids in reduction of sea clutter and interference, so you have a clear view of what’s out there.

AUTO BIRD GAIN

Where there are birds on the water’s surface, there are fish below it. Auto Bird Gain helps you locate flocks of birds at the water’s surface.

PULSE COMPRESSION

This feature provides high-resolution imaging while maximizing energy to enhance target detection and identification.

ECHO TRAILS

True Echo Trails feature displays a fading trail to help you quickly and easily identify moving targets while accounting for the movement of your own boat.

RADAR OVERLAY

Overlay radar on your chart screen as single display or split screen with independent range settings.

DYNAMIC SEA FILTER

Dynamic Sea Filter automatically adjusts gain to calm, medium and rough sea conditions.

GUARD ZONE

Set the safety zone and receive an alarm when an object enters the zone.

Find the right setup with our online system builder.Learn More

Engineering enhancements are ongoing and may not be reflected in the pictures, videos and specifications.

General
Dimension	Pedestal: 16.6" x 14.3" x 10.7" (42.1 x 36.4 x 27.1 cm) Full assembly: 15.9" height x 51.8" diameter (40.3 cm x 131.4 cm)
Weight	Array: 11.4 lb (5.2 kg) Pedestal: 34.7 lb (15.7 kg)
Water rating	IPX6
Max Wind Load	80kt
Antenna Length	48" (121.92 cm)
Rotation speed (RPM)	24 and 48 rpm (high speed only available in single range mode with MotionScope disabled, and on range settings of 12 NM or lower)
Beam width	1.8° horizontal, 23° vertical
Maximum range	96 nm
Minimum range	6 meters
Radar type	Open-Array
Electrical Features
Power Input	10-32 V
Transmit power	250 W
Radar Features
Dual range
Overlay
Dual radar support
Auto Bird Gain
Auto Gain	Dynamic
MARPA target tracking	yes (requires heading sensor, sold separately)
Echo Trails
MotionScope
Programmable antenna parking
Target size
Scan averaging
