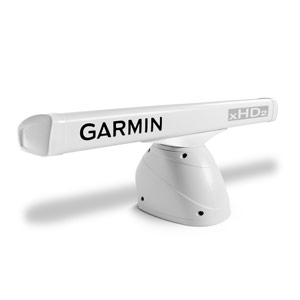

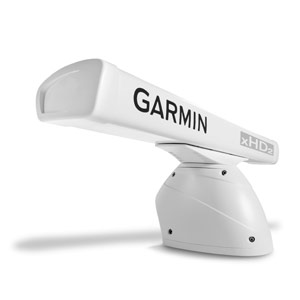

GMR 1224 xHD2 Open Array Radar and Pedestal

Part Number K10-00012-11

BUY NOW

Feature
Function
Specs
In The Box
Update
Accessories

4’ OPEN-ARRAY RADAR WITH 12 KW OF POWER

This high-definition open-array radar is perfect for cruising and fishing offshore, overnight and in foggy, limited or no-visibility conditions — especially on yachts and sport fishing boats under 40’.

Serious seafarers like you need serious range — up to 72 nautical miles.

See targets in incredible detail, even at a distance.

Easily see what’s close and far away with dual-range radar.

Don’t waste time fussing with complex settings. This radar is easy to install.

Say goodbye to noise pollution. This radar rotates quietly.

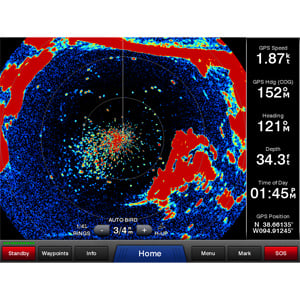

Bird Mode Bird Mode has the sensitivity to determine targets of birds feeding in the distance.

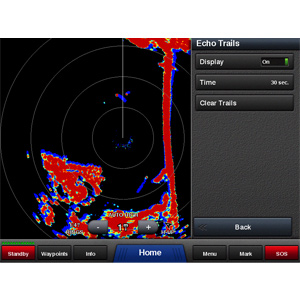

Echo Trails Echo Trails leaves a historical “trail” on the screen to help quickly and easily identify moving targets and collision threats.
Dual Range Single radar antenna is capable of providing split screen images on your chartplotter for both close and long range.

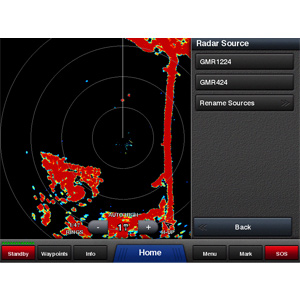

Dual Radar Support Provides redundancy and the ability for each display unit on the boat to select data from one of two different radar sources.
Dynamic Auto Gain Dynamic Auto Gain automatically adjusts gain levels to optimum settings for harbors, near shore, and offshore in open waters.
Dynamic Sea Filter Dynamic Sea Filter automatically adjusts gain to calm, medium and rough sea conditions.
Radar Overlay Overlays the radar image on the chartplotter’s map page.
MARPA Target Tracking Mini-automatic radar plotting aid (MARPA) tracks up to 30 selected targets, helping you keep track of other vessels and avoid collisions.

General
Dimension	4' array: 52.25" x 5" x 6.75" (132.7 x 12.7 x 17.1 cm) Pedestal: 20.5" x 12.75" x 12.5" (52 x 32.4 x 31.8 cm)
Weight	array: 12.2 lb (5.5 kg) pedestal: 47.1 lb (21.4 kg)
Water rating	IPX6
Max Wind Load	80kt
Antenna Length	48" (121.92 cm)
Rotation speed (RPM)	24 and 48 rpm
Beam width	1.8° horizontal, 23° vertical
Maximum range	72 nm
Minimum range	20 meters
Radar type	Open-Array
Electrical Features
Power Input	10-32 V DC
Transmit power	12 kW
Radar Features
Dual range
Overlay
Dual radar support
Auto Bird Gain
Auto Gain	Dynamic
MARPA target tracking	yes (requires heading sensor, sold separately)
Echo Trails
Programmable antenna parking
Target size	Pulse Expansion

GMR 1224 xHD2
Mounting hardware kit and template
Power cable (15 meters)
Network cable (15 meters)
Cable grommet
Voltage converter
Documentation
