ECHOMAP UHD2 Touch 92sv

Part Number 010-02687-00

BUY NOW

Feature
Specs
In The Box
Update
Accessories

KNOW THE WATER BETTER THAN A LOCAL

When it comes to catching more fish, they say, “Talk to a local.” With the ECHOMAP UHD2 chartplotter, which offers our best-in-class sonar and mapping and premium touchscreen display with keyed-assist, you’ll know the water even better than they do.

The bright 6”, 7” or 9” touchscreen display with keyed-assist is user-friendly and easy to read.

Good things come in threes. Three sonar types, that is: Garmin traditional, ClearVü and SideVü sonars.

Improved detail? Check. Distinguished targets? Yep. That’s the beauty of high-contrast vivid color palettes.

If you’re running another ECHOMAP UHD2 chartplotter, you can wirelessly share sonar, waypoints and routes.

Want our best in mapping? Who doesn’t? Select chartplotters come with Garmin Navionics+ mapping.

It doesn't get any better than this.

SONAR SUPPORT

With crisp, clear traditional sonar and brilliant ClearVü and SideVü scanning sonars, the fish will have nowhere to hide. Your ECHOMAP UHD2 also supports LiveScope live-scanning sonar.

VIVID COLOR PALETTES

High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.

BUNDLE YOUR TRANSDUCER

Your ECHOMAP UHD2 device supports a variety of Garmin transducers. The 6” and 7” chartplotters come bundled with a GT54 transducer — while the 9” chartplotter comes with a GT56 transducer.

PRELOADED CHARTS

You’ve never seen Garmin cartography like this before. Select chartplotters come with built-in Garmin Navionics+ cartography which includes a 1-year subscription for daily updates, depth range shading and more.

WIRELESS NETWORKING

If you have another compatible ECHOMAP UHD2 chartplotter on your boat, you can wirelessly share information — such as sonar¹, waypoints and routes — with them.

ACTIVECAPTAIN APP

Built-in Wi-Fi connectivity pairs with the free all-in-one mobile app on your compatible smartphone for access to the OneChart feature, smart notifications, software updates, Garmin Quickdraw Community data and more².

AUTO GUIDANCE+ TECHNOLOGY

Chartplotters with built-in Garmin Navionics+ charts include downloadable Auto Guidance+ technology³ with the ActiveCaptain app.

TROLL WITH FORCE

Your ECHOMAP UHD2 wirelessly connects to your Force trolling motor to create and follow routes, navigate to waypoints, control speed, check battery life and more.

POWER-POLE SHALLOW WATER ANCHOR

By networking select Garmin chartplotters with a Force trolling motor and your compatible Power-Pole shallow water anchoring system, you can access advanced boat control features⁴ from your plotter, including smart anchor auto-deployment, smart anchor jog, auto stow, anchor drag detection and auto guidance⁵ end-of-route anchoring. Spend more time fishing, less time positioning.

MULTI-BAND GPS

Get improved position accuracy, particularly in areas where signals are reflected or weak, with multi-band GPS.

Manage your marine experience using the free ActiveCaptain app.

Learn More

Add a portable ice fishing kit.

Learn More

¹LiveScope sonar cannot be shared wirelessly between two ECHOMAP UHD2 chartplotters.

²Requires the ActiveCaptain app on your compatible smartphone paired to the ECHOMAP UHD2 6”, 7” and 9” chartplotters

³Auto Guidance+ is for planning purposes only and does not replace safe navigation operations

⁴Integration of these features requires purchase of a C-Monster GATEWAY through Power-Pole

⁵Auto guidance is for planning purposes only and does not replace safe navigation operations

Wi-Fi is a registered trademark of the Wi-Fi Alliance.

Purchase New Charts

General
Dimension	10.4" x 6.5" x 3.2" (26.4 x 16.6 x 8.0 cm)
Weight	2.9 lbs (1.3 kg)
Water rating	IPX7
Touchscreen	yes
Display Type	WSVGA, TN
Display Size	7.8" x 4.5", 9.0" (19.8 x 11.5 cm, 22.9 cm)
Display Resolution	1024 x 600 pixels
Mounting Options	Bail or flush
Input	Touchscreen with Keyed Assist
Maps & Memory
Accepts Data Cards	1 microSD™ card; 32 GB maximum size
Waypoints	5,000
Track points	50,000
Tracks	50 saved tracks
Navigation Routes	100
Sensors
GPS	yes
GLONASS	yes
Galileo	yes
BeiDou	yes
Has built-in receiver	yes
Receiver	10 Hz
NMEA 2000 Compatible	yes
Supports WAAS	yes
Supports multi-band, multi-constellation GPS	yes
Built-in Maps
Built-in Auto Guidance+	yes (downloadable via ActiveCaptain app)
Garmin Navionics+ Inland & Coastal	yes (see Additional)
Garmin Navionics+ (Coastal)	yes (see Additional)
Garmin Navionics+ (Inland)	yes (see Additional)
Tide tables	yes (see Additional)
Optional Map Support
BlueChart g3	yes
BlueChart g3 Vision	yes
LakeVü g3	yes
LakeVü g3 Ultra	yes
Garmin Navionics+™	yes
Garmin Navionics Vision+™	yes
TOPO 100K	yes
Standard Mapping	yes
Garmin Quickdraw Contours	yes
Chartplotter features
AIS	yes
DSC	yes
Supports Fusion-Link™ compatible radios	yes
ActiveCaptain® compatible	yes
Sailing Features	yes
Electrical Features
Power Input	9 to 18 Vdc
Typical current draw at 12 Vdc	1.72 A
Maximum current draw at 12 Vdc	3.5 A
Maximum power usage at 10 Vdc	20.7W
Sonar Features
Displays sonar	yes
Power output	500 W
Traditional sonar (dual frequency/beam)	Built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP)
ClearVü	Built-in 260/455/800/1000/1200 kHz
SideVü	Built-in 260/455/800/1000/1200 kHz
Panoptix™ sonar	yes
LiveScope	yes

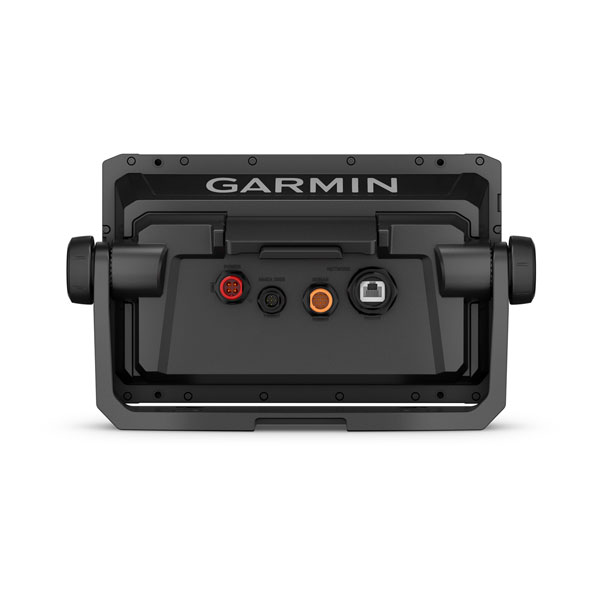

Connections
NMEA 2000® ports	yes
Garmin Marine Network Ports	1
12-pin transducer ports	1
BLUETOOTH® pairing	yes
Garmin Wi-Fi network (local connection)	yes

With Transducer

ECHOMAP UHD2 (device varies depending on selection)
GT56-TM transducer
Power cable
Tilt mount with quick-release cradle
Protective cover
Hardware
Documentation

Without Transducer

ECHOMAP UHD2 (device will vary depending on selection)
12-pin sounder to 8-pin transducer cable
Power cable
Tilt mount with quick-release cradle
Protective cover
Hardware
Documentation
