Fusion Apollo Speakers

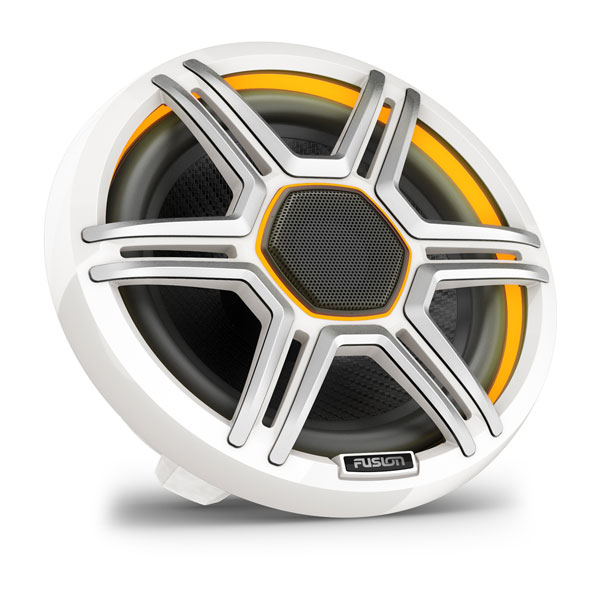

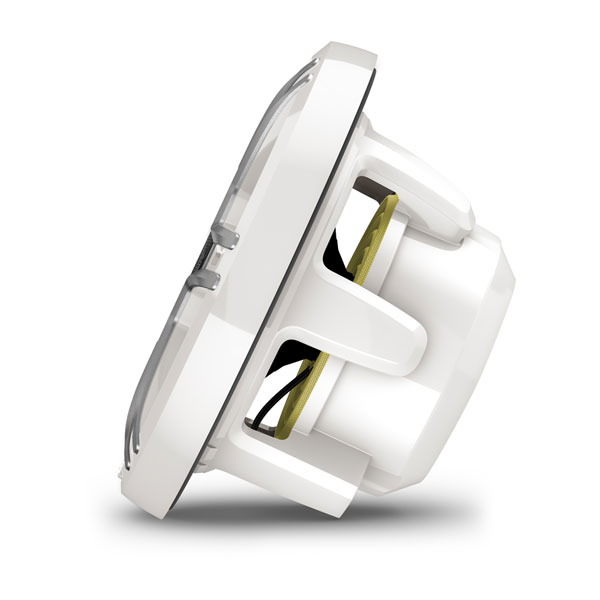

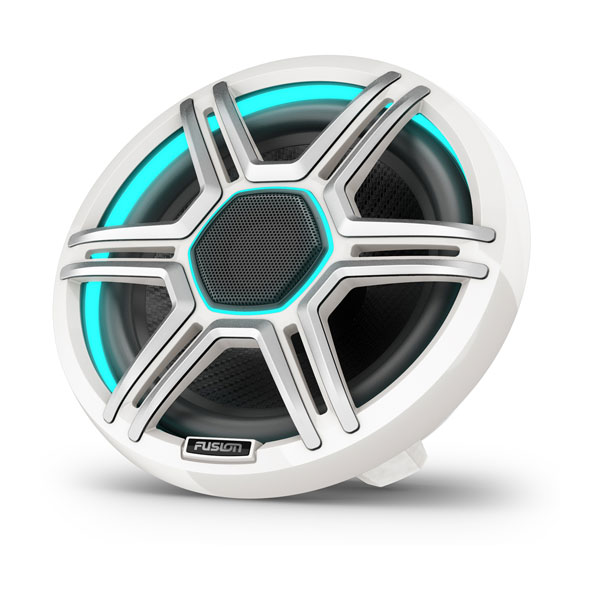

77" LED Marine Speakers with Sports White Grilles

Part Number 010-02918-11

BUY NOW

Feature
Specs
In The Box
Update
Accessories

SURRENDER TO THE SOUND

Fusion Apollo coaxial marine speakers deliver immersive, high-fidelity audio on the water and are engineered to withstand harsh marine conditions.

CRYSTAL-CLEAR PREMIUM SOUND QUALITY

INCLUDED INTERCHANGEABLE SPORTS WHITE OR SPORTS GRAY GRILLES

MATCH THE MOOD WITH DUAL-HUE LED LIGHTING RINGS

AVAILABLE IN 6.5”, 7.7” AND 8.8” SIZES

RIGOROUSLY TESTED MARINIZED DESIGN

WHAT YOU'LL LOVE

PREMIUM SOUND

Enjoy immersive audio at higher volumes, thanks to updated motor designs which reduce distortion for a premium sound experience.

LED LIGHTS

Showcase your boat with dual-hue LED lighting rings that provide a unique look through the distinct hexagonal tweeters. Choose from a broad range of colors to match the mood or music.

INTERCHANGEABLE GRILLES

Complete your speakers with the included sports white or sports gray interchangeable grilles. For more protection, purchase the shielded grille (also available in gray or white).

Made for life on the water.

INTEGRATE

FUSION AUDIO SYSTEM

Control your onboard entertainment system from your compatible smartwatch or with the Fusion Audio smartphone app.

SYSTEM INTEGRATION

Pair your speakers with Fusion head units and amplifiers (sold separately) for the optimal listening experience with minimal distortion.

MARINIZED CONNECTORS

Embedded water-resistant marinized connectors simplify the design and make installation easy; they also meet ABYC requirements.

FEEL THE BEAT

Pair your speakers with the Fusion Apollo subwoofer so you can feel the music, too.

FUNCTIONAL

SPEAKER GRILLES

All speaker grilles accent the hexagonal tweeter’s anodized mesh cover and complement the dual-hue LED lighting.

EASY INSTALL

The grilles are simple to install without tools and don’t have screws for a seamless look and finish.

DURABLE

Fusion Apollo speakers offer a superior level of durability and are built to withstand abuse in harsh marine environments (in accordance with IP66/IP67 rating and ISO 12216 standards).

General
Sizes	6.5"/7.7"/8.8"
Color	Sports White or Sports Gray
Physical dimensions (Diameter)	6.5": 6.93" (176 mm) 7.7": 7.72" (196 mm) 8.8": 8.82" (224 mm)
Physical dimensions (Depth)	6.5": 4.06" (103.1 mm) 7.7": 4.46" (113.2 mm) 8.8": 5.28" (134.1 mm)
Weight	6.5": 8.3 lbs (3.76 kg) 7.7": 11.3 lbs (5.12 kg) 8.8": 14.1 lbs (6.39 kg)
Water and dust rating	IP66/IP67
Speaker type	Coaxial
Continuous power handling (RMS)	6.5": 75 W 7.7": 100 W 8.8": 130 W
Sensitivity (SPL @ 1 W/1 m)	6.5": 90 dB 7.7"/8.8": 91 dB
Frequency response (+/- 3 dB)	6.5": 70 Hz-22 kHz 7.7": 60 Hz-22 kHz 8.8": 50 Hz-20 kHz
Nominal impedance	4 Ω
Recommended amplifier power (RMS)	6.5": 25-150 W/Channel 7.7": 30-200 W/Channel 8.8": 40-260 W/Channel
LED lighting	yes - CRGBW (5 colors)
LED supply voltage	10.8-16 VDC
LED Load Current @ 14.4 VDC (max)	6.5": 130 mA per color, per speaker 7.7": 140 mA per color, per speaker 8.8": 180mA per color, per speaker
Operating temperature range	32° to 122° F (0° to 50° C)
Cone material	CURV® Cone Technology with Rubber Surround
Tweeter type	Silk Dome
Tweeter size	6.5": 1" (25 mm) 7.7": 1" (25 mm) 8.8": 1.25" (32 mm)
Warranty	3 years
Electrical Features
Compass safe distance	6.5": 9.19 ft (280 cm) 7.7": 9.84 ft (300 cm) 8.8": 10.33 ft (315 cm)
Connections
Speaker connections	5.9" (150 mm) water-resistant 2-way connector (2-pin, audio positive and negative) or Male spade connectors (0.25" (6.3 mm) positive and 0.19" (4.8 mm) negative)
LED connection	5.9" (150 mm) water-resistant 6-way connector (6-pin, CRGBW and ground)
Mounting Dimensions
Mounting diameter clearance	6.5": 5.35" (136 mm) 7.7": 6.14" (156 mm) 8.8": 7.09" (180 mm)
Mounting depth clearance	6.5": 3.03" (77 mm) 7.7": 3.39" (86 mm) 8.8": 4.13" (105 mm)
Frontal grille protrusion	6.5": 1.18" (30 mm) 7.7": 1.26" (32 mm) 8.8": 1.30" (33 mm)

General
Sizes	6.5", 7.7" or 8.8"
Color	Sports white or sports gray
Physical dimensions (Diameter x Depth)	6.5" speaker: 6.93" x 4.06" (176 x 103.1 mm) 7.7" speaker: 7.72" x 4.46" (196 x 113.2 mm) 8.8" speaker: 8.82" x 5.28" (224 x 134.1 mm)
Water and dust rating	IP66/IP67
Configuration	Coaxial
Peak power	6.5" speaker: 300 W 7.7" speaker: 400 W 8.8" speaker: 520 W
RMS power	6.5" speaker: 75 W 7.7" speaker: 100 W 8.8" speaker: 130 W
Sensitivity (1 watt @ 1 meter)	6.5" speaker: 90 dB 7.7" speaker: 91 dB 8.8" speaker: 91 dB
Frequency response	6.5" speaker: 70 Hz - 22 kHz 7.7" speaker: 60 Hz - 22 kHz 8.8" speaker: 50 Hz - 20 kHz
Nominal impedence	4 ohms
Recommended amplifier power (RMS)	6.5" speaker: 25 - 150 W/channel 7.7" speaker: 30 - 200 W/channel 8.8" speaker: 40 - 260 W/channel
LED lighting	yes (CRGBW; 5 colors)
LED supply voltage	10.8 - 16 VDC
LED load current @14.4 VDC	6.5" speaker: 0.13 A per color, per speaker 7.7" speaker: 0.14 A per color, per speaker 8.8" speaker: 0.18 A per color, per speaker
LED load current @14.4 VDC when using Garmin Spectra™¹	6.5" speaker: 0.28 A maximum per speaker 7.7" speaker: 0.31 A maximum per speaker 8.8" speaker: 0.38 A maximum per speaker
Operating temperature range	32° to 122° F (0° to 50° C)
Voice coil diameter	6.5" speaker: 1.2" 7.7" speaker: 1.4" 8.8" speaker: 1.5"
Cone material	CURV® Cone Technology with rubber surround
Tweeter type	6.5" speaker: 1" Silk Dome 7.7" speaker: 1" Silk Dome 8.8" speaker: 1.25" Silk Dome
Compass-safe distance	6.5" speaker: 9.19 ft (280 cm) 7.7" speaker: 9.84 ft (300 cm) 8.8" speaker: 10.33 ft (315 cm)
Speaker connection	5.9" (150 mm) water-resistant 2-way connector (2-pin, audio positive and negative) or Male spade connectors (0.25" (6.3 mm) positive and 0.19" (4.8 mm) negative)
LED connection	5.9" (150 mm) water-resistant 6-way connector (6-pin, CRGBW and ground)
Warranty	3 years
Mounting Dimensions (Cutout)
Mounting diameter clearance	6.5" speaker: 5.35" (136 mm) 7.7" speaker: 6.14" (156 mm) 8.8" speaker: 7.09" (180 mm)
Mounting depth clearance	6.5" speaker: 3.03" (77 mm) 7.7" speaker: 3.39" (86 mm) 8.8" speaker: 4.13" (105 mm)

¹When using Garmin Spectra™, any color combination can be created using the equivalent current draw of two CRGBW LED channels. This reduces power consumption and increases the number of speakers or subwoofers Garmin Spectra can control.

Pair of speakers with sports white or sports gray grilles (based on what you select)
Pair of audio cables with water-resistant two-way connectors
Pair of LED cables with water-resistant six-way connectors
Mounting screws
Documentation
