AIRMAR B175HW

Part Number 010-10182-21

BUY NOW

Feature
Specs
In The Box
Update
Accessories

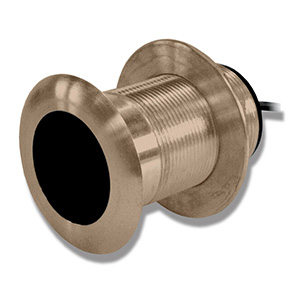

This bronze thru-hull mount transducer performs well at high speeds.

An excellent choice for fiberglass and wood hulls, this 8-pin 600 W narrow stem transducer has a depth of 800 to 1,200 ft; an operating frequency of 50 to 200 kHz; a beamwidth of 45 to 12 degrees; and a 0 to 7 degree deadrise.

Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.

Do not use on metal hulls.

When using with a 6-pin Garmin sounder, transducer adapter cable part number 010-11612-00 is required.

General
Transducer frequency	50/200 kHz
Transducer power	600 W
Transducer beamwidth	45°/12°
Transducer maximum depth	800-1,200 ft.
Transducer cable length	33 ft.
Transducer depth/speed/temperature	Depth and Temperature
Transducer number of pins	8-pin
Transducer supported deadrise/transom angles	0°-7° degree deadrise
Transducer Support
Transducer frequency	50/200 kHz
