THE ULTIMATE TOOL FOR SUBWOOFER INTEGRATION

Designed by audiophiles, for audiophiles — this active subwoofer crossover offers a powerful combination of subwoofer and satellite tuning features alongside a complete commitment to analog signal purity.

RACK-MOUNT OPTION

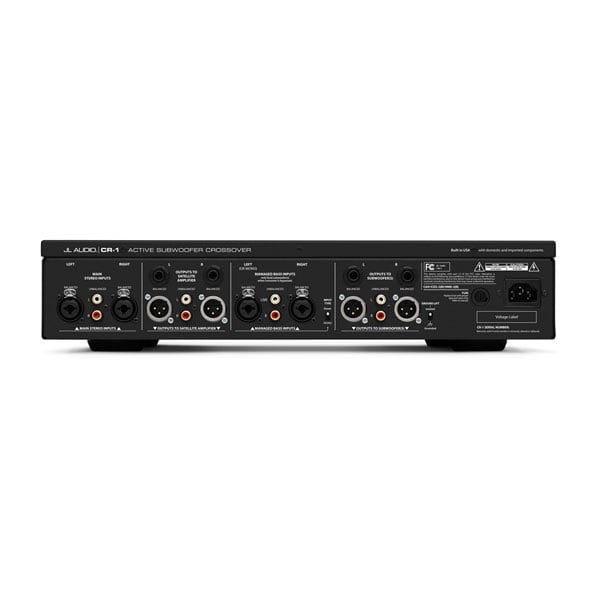

BALANCED/UNBALANCED INPUTS AND OUTPUTS

FILTER DAMPING CONTROL WITH VARIABLE Q

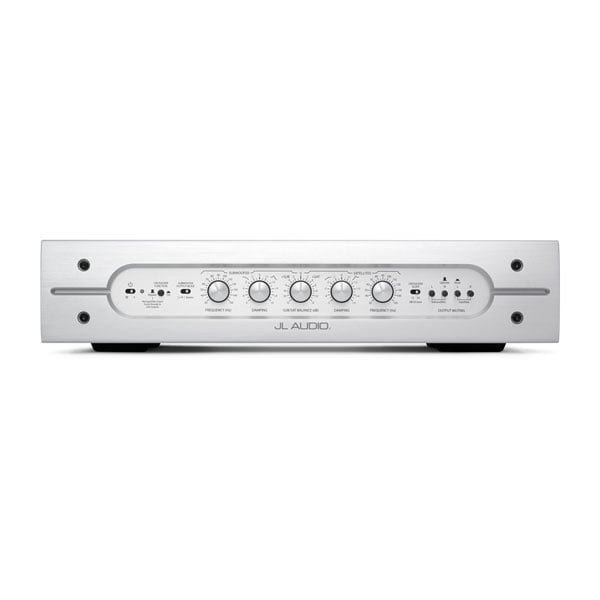

MONO L+R OR STEREO, SELECTABLE VIA FRONT PANEL SWITCH

HIGH-PASS FILTER FOR SATELLITES

LOW-PASS FILTER FOR SUBWOOFERS

WHAT YOU'LL LOVE

PERFECTLY BALANCED

This subwoofer crossover is built around two banks of precision Linkwitz-Riley low-pass and high-pass filters. Multiplying DACs with monolithic ratio matching are employed to adjust the analog circuit’s filter frequencies. This offers superior tracking behavior and far more precise left/right channel balance compared to conventional approaches.

HIGH-GRADE PARTS

To minimize distortion and noise, this subwoofer crossover employs top-grade component parts in its all-analog audio circuitry: 1% precision resistors, JFET-input audio-grade op-amps, polypropylene film-and-foil capacitors and metallized polypropylene film capacitors, to name just a few.

HIGHLY ADAPTABLE

This subwoofer crossover’s input-output design makes it equally adaptable to studio, mastering suite or audiophile 2-channel playback environments. To accommodate dual-mode systems, a bypass feature engages a pass-through from a dedicated managed bass input on the rear panel to the crossover’s subwoofer outputs. This makes it convenient to switch from 2-channel to multichannel mode.

General
Maximum input/output voltage	8 Vrms (+18 dBv)
Input impedance	Unbalanced: 50 kΩ balanced: 20 kΩ (10 kΩ per leg)
Output impedance	Unbalanced: 150 Ω balanced: 300 Ω (150 Ω per leg)
THD+N	< 0.002% at 8 Vrms/10 kΩ 20 Hz-20 kHz, 90 kHz bandwidth
Channel separation	>80 dB at 1 kHz
Low Pass Frequency Response (+0, -1dB)	5 Hz to 1/4 of filter frequency
High Pass Frequency Response (+0, -1dB)	4x filter frequency to 80 kHz
Power consumption	30 W (typical, with or without signal)
Mains voltage (frequency)	120 V (60 Hz) or 230/240 V (50 Hz or 60 Hz), factory-set for destination country
Features
Crossover function	Bypass or On, selectable via front panel switch
Subwoofer output modes	Mono, L+R or Stereo, selectable via front panel switch
Crossover frequency range	30 Hz-150 Hz, variable with independent high-pass and low-pass filter frequency controls on front panel
Subwoofer/satellite balance control	+/- 12 dB, fully variable via front panel knob
Filter damping controls	Q: 0.3-1.4 @ 12 dB/octave, via front panel knob Q: 0.16-4.0 @ 24 dB/octave, via front panel knob For either slope, Q = 0.5 at top dead center “0” mark
Filter slope(s)	12 dB/octave or 24 dB/octave, Linkwitz-Riley selectable via front panel switch
Output muting	independent for each output, via front panel push-button switches
Ground lift	Isolated/grounded, via rear panel switch
Main stereo inputs	Unbalanced L/R: (2 RCA jacks) Balanced L/R (2 XLR/TRS combo jacks)
Managed bass inputs	Unbalanced L/R: (2 RCA jacks) Balanced L/R (2 XLR/TRS combo jacks)
Satellite line outputs	Unbalanced (2 RCA jacks) Balanced (2 TRS jacks, 2 XLR jacks)
Subwoofer line outputs	Unbalanced L/R: (2 RCA jacks) Balanced L/R: (2 TRS jacks, 2 XLR jacks)

Subwoofer crossover
Power cord
Four RCA shorting plugs
Two rack-mount tabs
