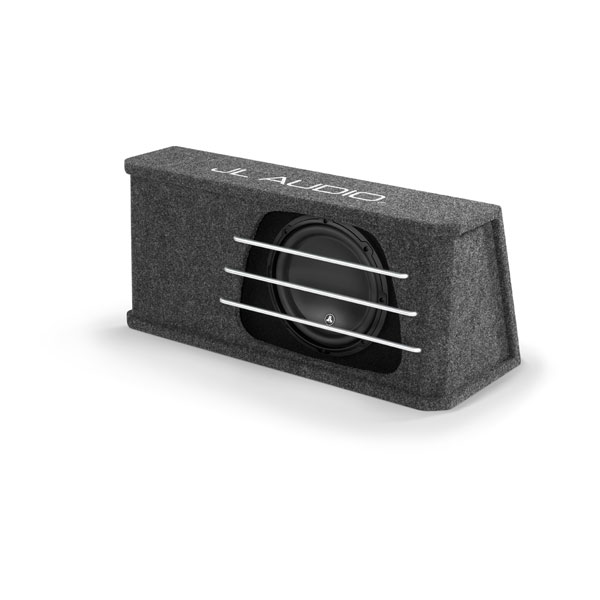

JL Audio H.O. Wedge W3v3 Enclosed Car Subwoofer

Single 10" W3v3 Subwoofer (HO110RG-W3v3)

Part Number 010-03234-00

BUY NOW

Feature
Function
Specs
In The Box
Update
Accessories
Compatible Devices

A HIGH-OUTPUT SOLUTION FOR INTENSE SUBWOOFER SOUND

Built to deliver rich, powerful bass in your car audio installation, these compact, slot-ported H.O. Wedge enclosure systems have been carefully tuned and sized to extract the maximum in sound quality, output and efficiency from their single 10- or 12-inch W3v3 series subwoofers.

HIGH-OUTPUT, PORTED ENCLOSURE DESIGN

CHOOSE 10- OR 12-INCH SUBWOOFERS

ANGLED-BACK DESIGN SAVES SPACE IN VEHICLE

ALL-STAR W3v3 SUBWOOFERS

LOW 2-OHM IMPEDANCE

2-YEAR WARRANTY

WHAT YOU'LL LOVE

ENGINEERED FOR SUPERIOR SOUND QUALITY

The H.O. Wedge systems with W3v3 series subwoofers are built to perform at serious output levels. They deliver bass that will impress you not only with its sheer level — but also with its smoothness, balance and precision.

CHAMBER-COUPLED PORTED ENCLOSURE

In contrast to a sealed enclosure, the H.O. Wedge design uses a tuned port or opening to equalize pressure between the inside and outside of the speaker. Coupling the port output to the woofer’s direct output gives freer airflow, so lower frequencies can travel using less power to drive the speaker.

SIMPLIFIED INSTALLATION

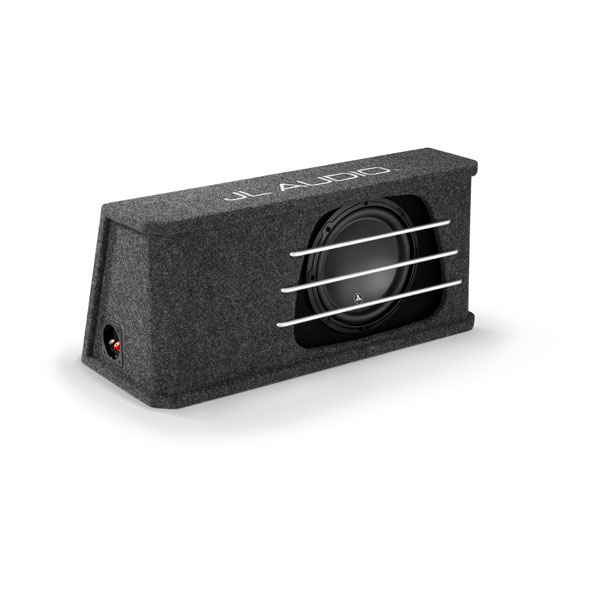

The H.O. Wedge subwoofer system comes wired, loaded and ready to connect via a 5-way binding post terminal. For added protection, the sturdy MDF enclosure is finished in high-grade automotive carpet with “JL AUDIO” embroidered in silver on the top surface.

POWERFULLY ADAPTABLE

On a wide range of car audio applications, the W3v3 series subwoofers deliver superb sound when powered by an amplifier in the 150- to 500-watt range.

W3v3 SUBWOOFER TECHNOLOGIES

DMA-OPTIMIZED SPEAKERS

Proprietary motor, suspension and cone modeling systems are used to achieve long, linear excursion capabilities with low distortion and powerful sound output.

CUSTOMIZABLE TRIM RING

This removable ring can be painted to match the installation theme and directly receives JL Audio grille mesh inserts (sold separately).

ELEVATED FRAME COOLING TECHNOLOGY

This patented frame cooling design creates a pathway for high-velocity air to flow directly across the top plate of the speaker voice coil — cooling it for better power handling and improved reliability.

ENGINEERED
LEAD-WIRE SYSTEM

Carefully engineered lead-wire design and attachments ensure controlled, quiet lead-wire behavior under the most extreme excursion demands.

FCAM TECHNOLOGY

This “floating cone attach method” of bonding the surround/cone assembly to the voice coil former/spider structure ensures proper surround geometry in the assembled speaker for better excursion control and dynamic voice coil alignment.

VENTED REINFORCEMENT COLLAR

The VRC collar design from JL Audio improves the rigidity and stability of the cone/spider/voice coil junction and directs airflow over the voice coil windings for improved thermal performance.

General
Sizes	10"/12"
Physical dimensions (Height)	10": 13.5 (343 mm) 12": 15.25 (387 mm)
Physical dimensions (Width)	10": 29.5" (749 mm) 12": 32.25" (819 mm)
Physical dimensions (Depth)	10": Top: 7.5" (190.5 mm) 10": Base: 12" (305 mm) 12": Top: 7.5" (190.5 mm) 12": Base: 13.5 (343 mm)
Weight	10": 34.7 lbs (15.74 kg) 12": 46.9 lbs (21.27 kg)
Continuous power handling (RMS)	500 W
Nominal impedance	2 Ω
Recommended amplifier power (RMS)	150-500 W
Cone material	Mineral-filled polypropylene
Enclosure type	Chamber-coupled, slot-ported, rear-firing design
Grille(s) included	yes (aluminum bar grilles)
Warranty	2 years
Connections
Speaker connections	Five-way binding post terminal

Ported high output enclosure containing one subwoofer
