JL Audio Fathom v2 Powered Subwoofers

13.5" with Gloss Black Finish (f113v2-GLOSS)

Part Number 010-03800-00

BUY NOW

Feature
Specs
In The Box
Update
Accessories
Compatible Devices

THE BENCHMARK FOR BASS

These subwoofers are ideal for larger spaces, thanks to their higher efficiency and power output. The combination of ultralong throw drivers and a very powerful switching amplifier results in jaw-dropping performance capabilities at any listening level.

10-, 12- OR 13.5-INCH OR DUAL 12-INCH SUBWOOFER MODELS

STUDIO-GRADE SIGNAL PROCESSING

1100 TO 3600 WATTS OF POWER

COMPACT SEALED ENCLOSURE

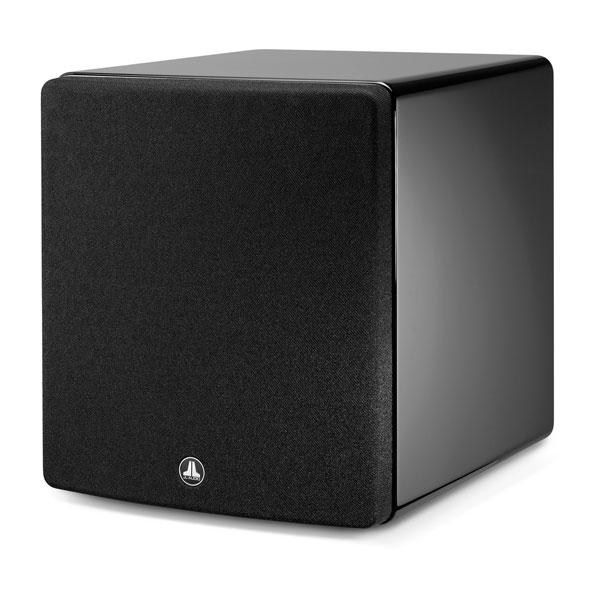

REMOVABLE FABRIC GRILLE

AVAILABLE IN GLOSS BLACK FINISH

WHAT YOU'LL LOVE

TREMENDOUS SOUND QUALITY

Fathom subwoofers utilize the same driver and amplifier technology as our flagship Gotham® subwoofer line. This allows for low distortion, excellent dynamic capabilities and shockingly deep bass extension.

SWITCHING AMPLIFIER

Each system uses a powerful switching amplifier with a large toroidal transformer and a patented circuit designed to enhance control and fidelity.

CONVENIENT CONTROL

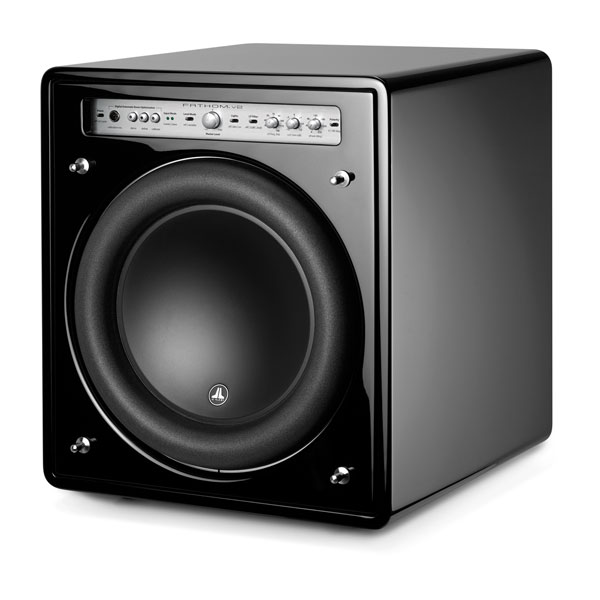

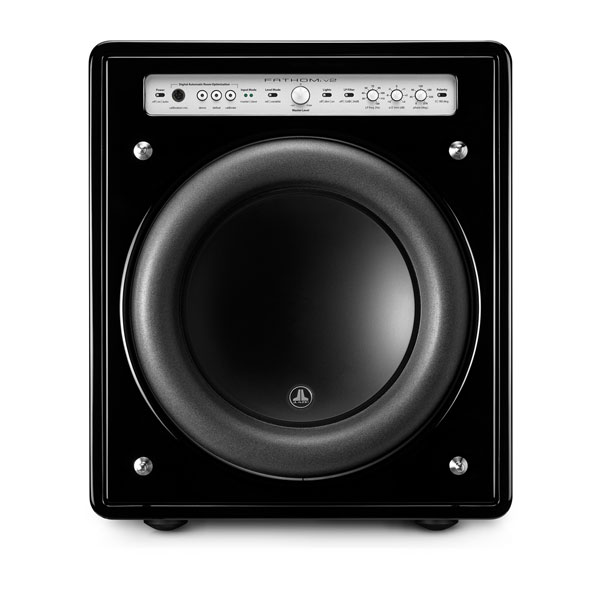

A complete set of signal processing features is easily accessible on the front surface of every Fathom subwoofer. These include a highly flexible low-pass filter, variable phase, switchable polarity, extreme low frequency trim and our powerful Digital Automatic Room Optimization (D.A.R.O.) system.

ULTRAHIGH PERFORMANCE DESIGN

This family of in-room subwoofers is centered on the highest technology subwoofer design from JL Audio — W7-HT. Each model-specific drive unit features extreme excursion capability, with outstanding linearity and dynamic stability.

FATHOM v2 TECHNOLOGIES

D.A.R.O. TECHNOLOGY

Exclusive D.A.R.O. technology from JL Audio uses a powerful onboard DSP to automatically optimize the subwoofer’s in-room frequency response. This leads to a superb listening experience, no matter where the subwoofer is placed.

DMA-OPTIMIZED WOOFER

Proprietary motor, suspension and cone modeling systems are used to achieve long, linear excursion capabilities with low distortion and powerful sound output.

W-CONE TECHNOLOGY

Using two lightweight mineral-filled polypropylene skins bonded in a unique W-cone design, the W7-HT subwoofer combines extreme durability and moisture-resistance with extra rigidity for powerful bass performance.

FCAM^™ TECHNOLOGY

This “floating cone attach method” of bonding the surround/cone assembly to the voice coil former/spider structure ensures proper surround geometry in the assembled speaker for better excursion control and dynamic voice coil alignment.

ENGINEERED LEAD-WIRE SYSTEM

Carefully engineered lead-wire design and attachments ensure controlled, quiet lead-wire behavior under the most extreme excursion demands.

ELEVATED FRAME COOLING^™ TECHNOLOGY

This patented frame cooling design creates a pathway for high-velocity air to flow directly across the top plate of the speaker voice coil — cooling it for better power handling and improved reliability.

OVERROLL^™ SURROUND TECHNOLOGY

By utilizing space otherwise wasted in conventional speakers, this ground-breaking innovation controls the Fathom subwoofer’s massive excursion without sacrificing precious cone area.

RADIAL CROSS-DRILLED POLE-PIECE

Through machined holes on the outer wall of the pole-piece, this innovative venting system enhances thermal dissipation and power handling by directing air flow onto the voice coil former, working in conjunction with the Elevated Frame Cooling technology to effectively remove heat from the voice coil.

General
Warranty	3 years
Sizes	10"/12"/Dual 12"/13.5"
Physical dimensions (Height)	10": 15.64" (397 mm) 12": 18.5" (470 mm) Dual 12": 31.96" (812 mm) 13.5": 19.25" (489 mm)
Physical dimensions (Width)	10": 12.92" (328 mm) 12": 15.0625" (384 mm) Dual 12": 14.92" (379 mm) 13.5": 16.50" (419 mm)
Physical dimensions (Depth)	10": 17.27" (439 mm) 12": 17.75" (451 mm) Dual 12": 20.39" (518 mm) 13.5": 19.25" (489 mm)
Weight	10": 69 lbs (31 kg) 12": 117 lbs (53 kg) Dual 12": 224 lbs (102 kg) 13.5": 133 lbs (60 kg)
Light modes	off, on or dim
Amplifier Power (RMS)	10": 1100 W short term 12": 1800 W short-term Dual 12": 3600 W short-term 13.5": 3000 W short-term
Frequency response (Anechoic)	10": 27-111 Hz (±1.5 dB) 12": 21-119 Hz (±1.5 dB) Dual 12": 20-97 Hz (±1.5 dB) 13.5": 20-86 Hz (±1.5 dB)
Frequency response (Anechoic, -3dB)	10": 25 Hz/120 Hz 12": 19 Hz/150 Hz Dual 12": 19 Hz/110 Hz 13.5": 18 Hz/127 Hz
Frequency response (Anechoic, -10dB)	10": 19 Hz/155 Hz 12": 17 Hz/167 Hz Dual 12": 15 Hz/157 Hz 13.5": 16 Hz/154 Hz
Enclosure type	Sealed
Enclosure finish	Black gloss
Grille(s) included	yes
Power modes	off, on or automatic (signal-sensing)
Signal Processing

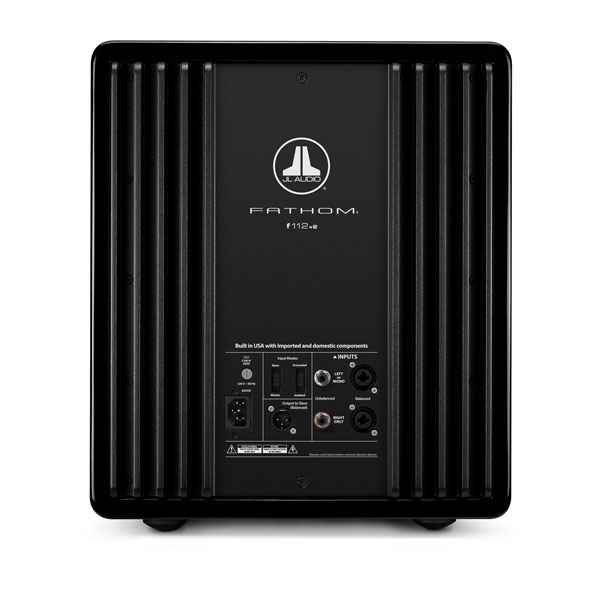

Unbalanced inputs	Stereo or mono (two RCA jacks)
Balanced inputs	Stereo or mono (two female XLR jacks)
Input grounding	Isolated or grounded
Input modes	Master or slave
Level control	Reference (fixed gain) or variable, from full mute to +15 dB over reference gain
Filter mode(s)	Low-pass
Filter slope(s)	12/24 dB/octave
Filter frequency range	30 Hz-130 Hz
Filter defeat function	yes
Polarity	0 or 180º
Phase	Variable, 0-280º
Extreme Low Frequency (E.L.F.) trim	Variable, -12 dB to +3 dB at 28 Hz
Output to slave	Balanced (one male XLR jack)
Calibration mode	Digital Automatic Room Optimization (D.A.R.O.), incudes laboratory-grade microphone
Parameters
Effective piston area (SD)	10": 60 in² (0.0387 m²) 12": 84 in² (0.0542 m²) Dual 12": 168 in² (0.1084 m²) 13.5": 107.35 in² (0.0693 m²)
Effective displacement	10": 160 cu in (2.6 L) 12": 287 cu in (4.7 L) Dual 12": 574 cu in (9.4 L) 13.5": 386 cu in (6.3 L)

Fathom powered subwoofer
Power cord
Grille (attached)
