JL Audio PowerWedge TW3 Enclosed Car Subwoofer

Single 10" TW3 Subwoofer (CS110LG-TW3)

Part Number 010-03058-00

BUY NOW

Feature
Function
Specs
In The Box
Update
Accessories
Compatible Devices

COMPACT AND SEALED FOR AMAZING BASS IN TIGHT SPACES

This PowerWedge system incorporates our outstanding thin-line TW3 drivers in quality MDF-constructed, sealed enclosures to produce smooth, powerful and articulate bass.

COMPACT, SEALED ENCLOSURE DESIGN

LOW-PROFILE OR TRUCK-STYLE BOX

10- OR 12-INCH SUBWOOFER SIZES

LOW 2-OHM WIRED IMPEDANCE

2-YEAR WARRANTY

WHAT YOU'LL LOVE

TRUCK-STYLE ENCLOSURE

We harnessed the performance of this patented TW3 subwoofer to deliver amazing sub-bass performance from an enclosure that is only 6.25 inches deep at its base and 4.1 inches at the top (10TW3) or 7.25 inches at its base and 4.5 inches at the top (12TW3).

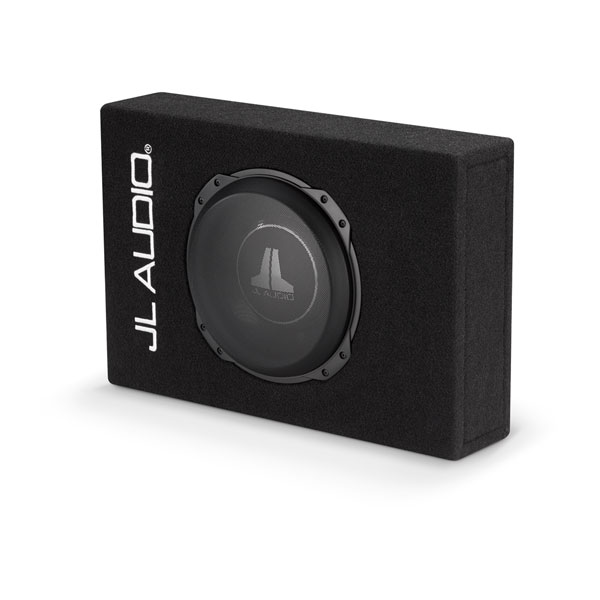

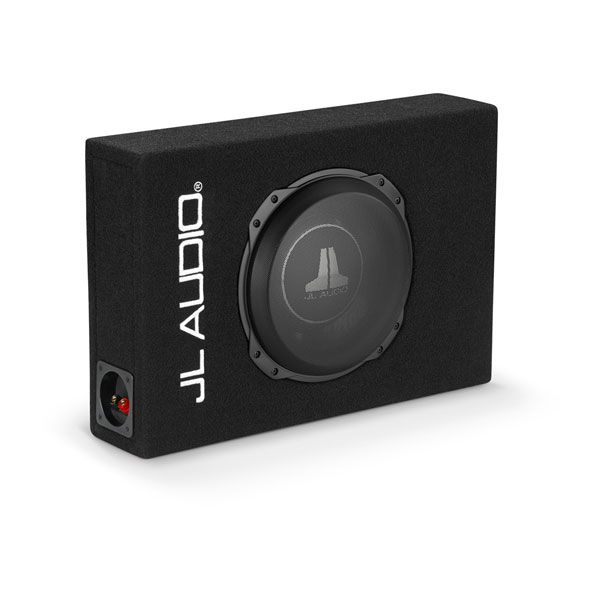

LOW-PROFILE ENCLOSURE

In this low-profile PowerWedge subwoofer system, we harness the performance of the TW3 driver to deliver amazing sub-bass from an enclosure that is only 4.5 inches deep (10TW3) or 5.0625 inches (12TW3).

STYLISH AND PROTECTED

Black high-grade automotive carpet with “JL AUDIO” is embroidered in silver on the front baffle. A steel mesh grille is included to protect the subwoofer.

V-GROOVE MDF CONSTRUCTION

This advanced cabinet-building technique uses CNC-machining to create precise panel joints that make enclosure assembly more efficient and exact.

TW3 SUBWOOFER TECHNOLOGIES

ENGINEERED
LEAD-WIRE SYSTEM

Carefully engineered lead-wire design and attachments ensure controlled, quiet lead-wire behavior under the most extreme excursion demands.

CONCENTRIC TUBE SUSPENSION DESIGN

This unique design allows the motor system to be placed higher in the cone body — further compressing depth while still permitting excellent mechanical excursion.

DMA-OPTIMIZED WOOFER

Proprietary motor, suspension and cone modeling systems are used to achieve long, linear excursion capabilities with low distortion and powerful sound output.

TAB-EAR FRAME DESIGN

This design reduces the driver’s overall dimensions, allowing it to be mounted in a space similar to that required by the next smaller round woofer frame.

General
Sizes	10"/10" Truck/12"/12" Truck
Physical dimensions (Height)	10": 14" (357 mm) 10" Truck: 12.375" (314 mm) 12": 15.625" (397 mm) 12" Truck: 14.625" (371 mm)
Physical dimensions (Width)	10": 20.75" (527 mm) 10" Truck: 19" (483 mm) 12": 23.75" (603 mm) 12" Truck: 12": 21.75" (537 mm)
Physical dimensions (Depth)	10": 4.5" (114 mm) 10" Truck: Top: 4.1" (104 mm) 10" Truck: Base: 6.25" (159 mm) 12": 5.0625" (129 mm) 12" Truck: Top: 4.5" (114 mm) 12" Truck: Base: 7" (178 mm)
Weight	10"/10" Truck: 21.2 lbs (9.6 kg) 12": 30.5 lbs (13.8 kg) 12" Truck: 29 lbs (13.2 kg)
Continuous power handling (RMS)	400 W
Nominal impedance	2 Ω
Recommended amplifier power (RMS)	100-400 W
Cone material	Mineral-filled polypropylene
Enclosure type	10"/12": Sealed 10" Truck/12" Truck: Sealed, truck enclosure
Grille(s) included	yes
Warranty	2 years
Connections
Speaker connections	Five-way binding post terminal

Sealed enclosure containing a TW3 subwoofer
Grille (installed)
