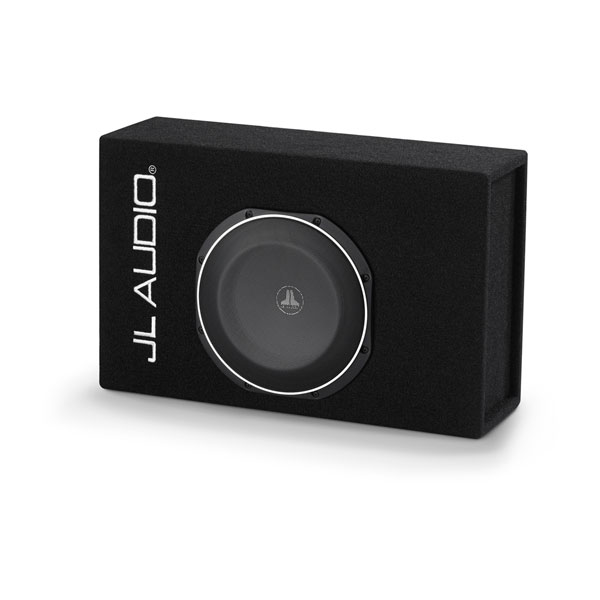

JL Audio MicroSub Enclosed Car Subwoofer

JL Audio MicroSub Enclosed Car Subwoofer

Single 10" TW1 Subwoofer (CP110LG-TW1-2)

Part Number 010-03246-00

BUY NOW

Feature
Function
Specs
In The Box
Update
Accessories
Compatible Devices

STUNNING BASS IN TIGHT SPACES

This incredible MicroSub subwoofer system delivers the kind of output and extension that is normally possible with only much larger systems. The key to its performance lies in the precise tuning of its 10TW1 subwoofer into an efficient slot-ported design.

SPECTACULAR SOUND IN A SMALL PACKAGE

SLOT-PORT ENCLOSURE DESIGN

10- OR 12-INCH SUBWOOFER SIZES

2-YEAR WARRANTY

WHAT YOU'LL LOVE

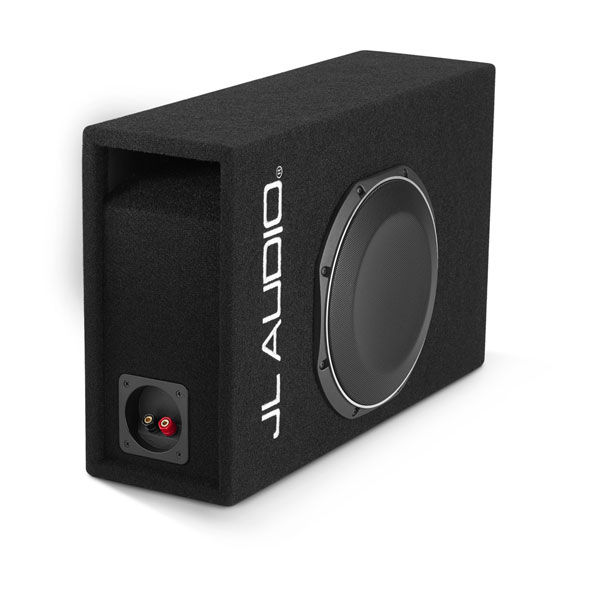

FLARED SLOT-PORT DESIGN

The flared slot-port design reduces turbulence at the port mouth to minimize the audible airflow effects that are common to ported enclosures.

V-GROOVE MDF CONSTRUCTION

This advanced cabinet-building technique uses CNC-machining to create precise panel joints that make enclosure assembly more efficient and exact.

EASY INTEGRATION

Integration to OEM and aftermarket head units is a snap, thanks to a variety of input options and automatic turn-on capability (via signal sensing or DC offset sensing).

QUICK DISCONNECT

A quick-disconnect power connector makes it easy to remove the subwoofer when you need extra space.

TW1 SUBWOOFER TECHNOLOGIES

DMA-OPTIMIZED WOOFER

Proprietary motor, suspension and cone modeling systems are used to achieve long, linear excursion capabilities with low distortion and powerful sound output.

CONCENTRIC TUBE SUSPENSION DESIGN

This unique design allows the motor system to be placed higher in the cone body — further compressing depth while still permitting excellent mechanical excursion.

TAB-EAR FRAME DESIGN

This design reduces the driver’s overall dimensions, allowing it to be mounted in a space similar to that required by the next smaller round woofer frame.

ENGINEERED
LEAD-WIRE SYSTEM

Carefully engineered lead-wire design and attachments ensure controlled, quiet lead-wire behavior under the most extreme excursion demands.

General
Sizes	10"/12"
Physical dimensions (Height)	10": 13.25" (337 mm) 12": 15.751" (400 mm)
Physical dimensions (Width)	10": 20.875" (530 mm) 12": 23.75" (603 mm)
Physical dimensions (Depth)	10": 6.375" (162 mm) 12": 9.25" (235 mm)
Weight	10": 25.70 lbs (11.66 kg) 12": 38.3 lbs (17.37 kg)
Continuous power handling (RMS)	300 W
Nominal impedance	2 Ω
Recommended amplifier power (RMS)	75-300W
Cone material	Mineral-filled polypropylene
Enclosure type	Slot-ported, low-profile
Grille(s) included	yes
Warranty	2 years
Connections
Speaker connections	Five-way binding post terminal

Ported enclosure containing a TW1 subwoofer
Grille (installed)
