JL Audio Fathom Home Amplifier / Subwoofer Amp | Audio

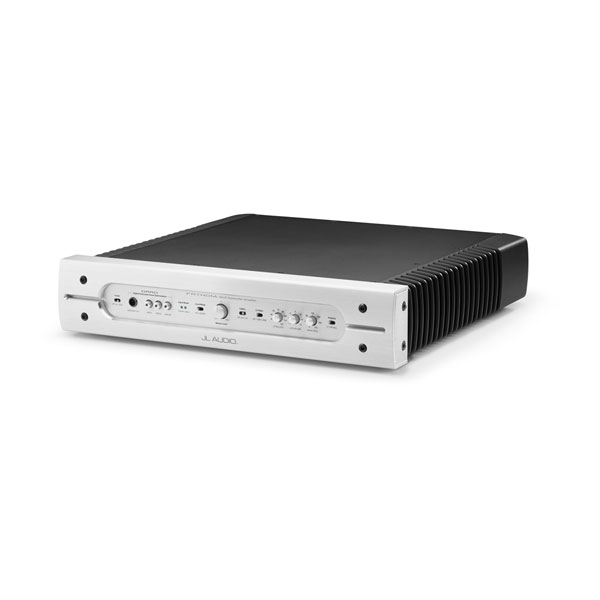

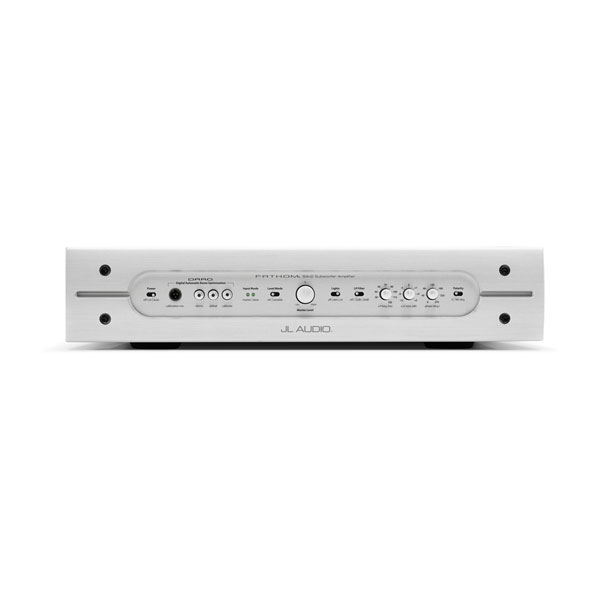

JL Audio Fathom SAv2 Home Amplifier

Subwoofer Amplifier (1000W) (SAv2-1KW-IWS113U)

Part Number 010-03802-00

BUY NOW

Feature
Specs
In The Box
Update
Accessories
Compatible Devices

ULTIMATE POWER AND CONTROL

This amplifier is purpose-engineered to deliver jaw-dropping output capabilities in almost any home theater or home audio system.

1000- AND 2000-WATT POWER OPTIONS

DESIGNED TO DRIVE SINGLE OR DUAL FATHOM CTS SUBWOOFERS

FIXED OR VARIABLE LEVEL CONTROL OPTIONS

CHOICE OF BALANCED (XLR) OR UNABALNCED (RCA) INPUTS

BUILT-IN, OPTIMIZED EQ CURVES

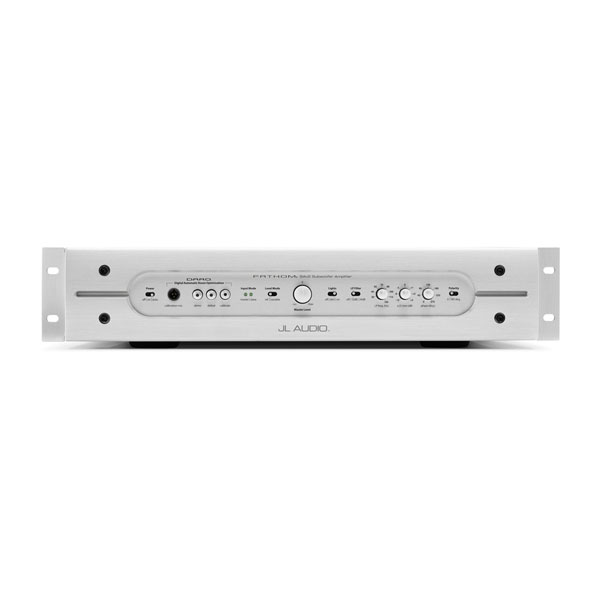

READY FOR TABLETOP OR RACK MOUNTING

WHAT YOU'LL LOVE

ADVANCED CLASS-D AMPLIFIER DESIGN

Innovative, high-speed switching design synchronizes an amplifier’s power supply and output channels, resulting in top-flight fidelity with ultralow noise and distortion.

PRECISION TUNING

Perfectly tune your system to the room with variable phase control and a low-pass filter that can be adjusted from 30 Hz to 130 Hz.

COMPLETE CUSTOMIZATION

Our extreme low frequency (e.l.f.) trim lets you adjust the bass response from -12 decibels to +3 decibels at 25 Hz, so you can have perfect control of the low end of your system.

FATHOM SA-600W TECHNOLOGIES

DIGITAL AUTOMATIC ROOM OPTIMIZATION (D.A.R.O.) TECHNOLOGY

Exclusive D.A.R.O. technology from JL Audio uses a powerful onboard DSP to automatically optimize the subwoofer’s in-room frequency response. This leads to a superb listening experience, no matter where the subwoofer is placed.

HIGH-DAMPING FEEDBACK CIRCUITRY

This proprietary, discrete control circuit design allows our Class-D switching amplifiers to maintain excellent damping factors for improved transient behavior and fidelity.

General
Light modes	off, on or dim
Amplifier Power (RMS)	1000 W or 2000 W RMS short-term (depending on model)
Power modes	off, on or automatic (signal-sensing)
Warranty	3 years
Signal Processing

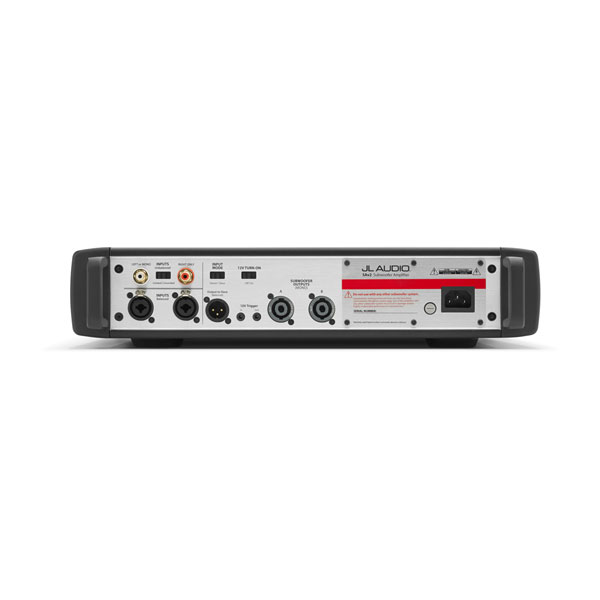

Unbalanced inputs	Stereo or mono (two RCA jacks)
Balanced inputs	Stereo or mono (two female XLR jacks)
Input grounding	Isolated or grounded
Input modes	Master or slave
Level control	Reference (fixed gain) or Variable, from full mute to +15 dB over reference gain
Filter mode(s)	Low-pass
Filter slope(s)	12/24 dB/octave
Filter frequency range	30 Hz-130.1 Hz
Filter defeat function	yes
Polarity	0 or 180º
Phase	Variable, 0-270º, referenced to 80 Hz
Output to slave	Balanced (one male XLR jack)
Calibration mode	Digital Automatic Room Optimization (D.A.R.O.), includes laboratory-grade microphone
Amplifier Specifications
Width (W)	17.4" (442 mm)
Height (H)	3.5" (89 mm)
Depth (D)	17.9" (455 mm)
Net weight (each)	13.5": 35 lbs (15.9 kg) Dual 13.5": 43 lbs (19.5 kg)

Fathom SAv2 home amplifier
Power cord
Calibration microphone
Two rack-mount tabs
